Description
Product Summary

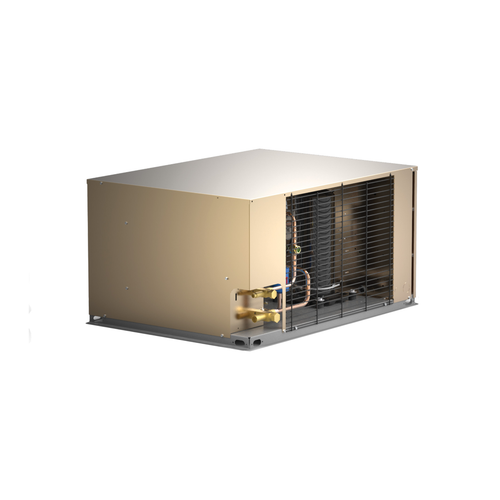

The Larkin LCH0025MDACYA0200 is a 2.5 HP medium temp outdoor air-cooled condensing unit from the Larkin LCH 1/2-6 HP horizontal air discharge line by Heatcraft Refrigeration Products. It uses a Copeland YS16KA-TFD scroll compressor and a microchannel condenser coil, and it is wired for 460V 3-Phase. It is rated at 19,620 BTU/h on R-454A at 95°F ambient, +25°F SST.
This is the A2L/A1 scroll (Y) version, built for low-GWP A2L refrigerants R-454A, R-454C and R-455A to meet current refrigerant regulations. It ships with the A0200 package: Timer-Elec preferred option package (factory defrost timer for electric defrost systems).
The LCH is sized for walk-in coolers in restaurants, convenience stores and institutional kitchens, and pairs with Larkin LEL low profile or LEC center mount unit coolers.
Key Features
- Microchannel Condenser Coil: compact, lower-charge air-cooled coil
- Scroll Compressor: Copeland YS16KA-TFD
- Service-Friendly Cabinet: painted steel cabinet on a heavy-duty raised steel base with a hinged, removable electrical box door
- Factory Controls: fixed head pressure valve, adjustable low pressure and fixed high pressure controls (auto reset)
- Refrigeration Circuit: receiver with fusible plug, sealed liquid line drier and sight glass, liquid and suction base valves
- Factory Tested: helium leak test, bump test and cycling on pressure controls with run data shipped in the panel
- Electric Defrost Timer: Timer-Elec preferred option package (factory defrost timer for electric defrost systems)
Specifications
| Model | LCH0025MDACYA0200 |
|---|---|
| Brand / Series | Larkin LCH 1/2-6 HP Outdoor Air-Cooled Condensing Unit |
| Horsepower Class | 2.5 HP (model code 0025) |
| Temperature Application | Medium Temp |
| Compressor | Copeland YS16KA-TFD scroll (A2L) |
| Capacity R-454A (95°F ambient, +25°F SST) | 19,620 BTU/h |
| Capacity R-454C (95°F ambient, +25°F SST) | 17,610 BTU/h |
| Capacity R-455A (95°F ambient, +25°F SST) | 19,070 BTU/h |
| Electrical | 460V 3-Phase 60 Hz |
| Liquid / Suction Connections | 1/2 in. / 7/8 in. |
| Dimensions (D x W x H) | 28-1/4 x 39-1/8 x 19-3/4 in. |
| Net Weight | 230 lb |
| Condenser Coil | Microchannel, air-cooled |
| Refrigerants | R-454A, R-454C, R-455A (A2L/A1 scroll platform) |
| Factory Option Package | A0200: Timer-Elec preferred option package (factory defrost timer for electric defrost systems) |
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery coolers
- Beverage and floral coolers
- Schools and institutional food service
Frequently Asked Questions
What refrigerant does the Larkin LCH0025MDACYA0200 use?
It is an A2L model rated for R-454A, R-454C, R-455A. A2L systems need matching A2L-rated evaporators, valves and leak detection per code.
Is it for a cooler or a freezer?
It is a medium temp unit, intended for walk-in coolers.
What power supply is required?
460V 3-Phase 60 Hz. Size the circuit from the unit nameplate MCA and MOP.
What is included in the option package?
Package A0200: Timer-Elec preferred option package (factory defrost timer for electric defrost systems).
Which evaporator matches this condensing unit?
Choose a unit cooler whose capacity at your box temperature and design suction matches this unit, such as a Larkin LEL low profile model. HVAC365 can help size a matched system.
