Product Summary

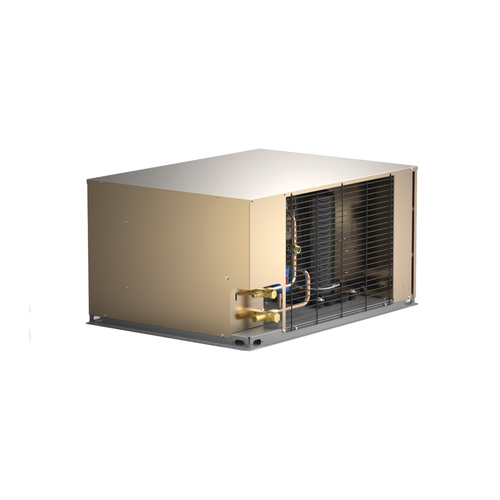

The Larkin LCH0030MCACZA0200 is a 3 HP medium temp outdoor air-cooled condensing unit from the Larkin LCH 1/2-6 HP horizontal air discharge line by Heatcraft Refrigeration Products. It uses a Copeland ZS21KAE-TF5 scroll compressor and a microchannel condenser coil, and it is wired for 208/230V 3-Phase. It is rated at 27,410 BTU/h on R-448A at 95°F ambient, +25°F SST.
This is the A1 scroll (Z) version for R-448A, R-449A, R-404A and the R-407 series. It ships with the A0200 package: Timer-Elec preferred option package (factory defrost timer for electric defrost systems).
The LCH is sized for walk-in coolers in restaurants, convenience stores and institutional kitchens, and pairs with Larkin LEL low profile or LEC center mount unit coolers.
Key Features
- Microchannel Condenser Coil: compact, lower-charge air-cooled coil
- Scroll Compressor: Copeland ZS21KAE-TF5
- Service-Friendly Cabinet: painted steel cabinet on a heavy-duty raised steel base with a hinged, removable electrical box door
- Factory Controls: fixed head pressure valve, adjustable low pressure and fixed high pressure controls (auto reset)
- Refrigeration Circuit: receiver with fusible plug, sealed liquid line drier and sight glass, liquid and suction base valves
- Factory Tested: helium leak test, bump test and cycling on pressure controls with run data shipped in the panel
- Electric Defrost Timer: Timer-Elec preferred option package (factory defrost timer for electric defrost systems)
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery coolers
- Beverage and floral coolers
- Schools and institutional food service
Frequently Asked Questions
What refrigerant does the Larkin LCH0030MCACZA0200 use?
It is rated for R-404A, R-448A, R-449A and the R-407 series.
Is it for a cooler or a freezer?
It is a medium temp unit, intended for walk-in coolers.
What power supply is required?
208/230V 3-Phase 60 Hz. Size the circuit from the unit nameplate MCA and MOP.
What is included in the option package?
Package A0200: Timer-Elec preferred option package (factory defrost timer for electric defrost systems).
Which evaporator matches this condensing unit?
Choose a unit cooler whose capacity at your box temperature and design suction matches this unit, such as a Larkin LEL low profile model. HVAC365 can help size a matched system.
