Description
Product Summary

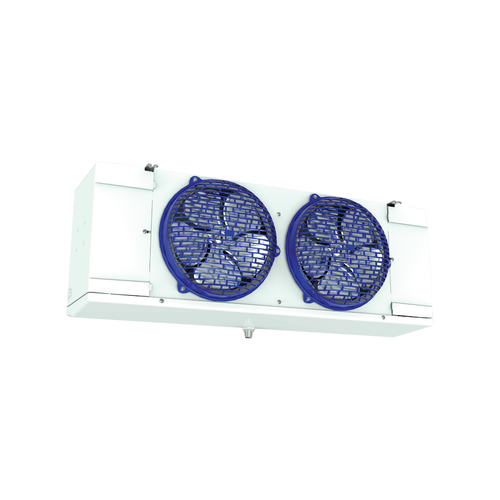

The Larkin LEL0040BY6EEAG0212 is a 4,000 BTU/h nominal low profile walk-in unit cooler from the Larkin LEL series by Heatcraft Refrigeration Products. It is a electric defrost model with 1-speed ec motors and a 6 FPI coil, built for walk-in freezers, with dual ratings that also allow cooler use.
Published ratings for this size include 3,900 BTU/h on R-448A at 10°F TD / -20°F SST and 3,800 BTU/h on R-454A. The unit runs on 208/230V 1-Phase power, moves 685 CFM through 1 fan.
This A2L/HFC (Y) version is rated for low-GWP A2L refrigerants R-454A, R-454C and R-455A as well as common HFC blends. It ships with the G0212 package: A2L preferred package: refrigerant detection system (RDS) plus intelliGen controller, set up for R-454A.
Key Features
- Low Profile Cabinet: about 16-7/16 in. tall housing saves headroom in low-ceiling walk-in boxes
- 1-Speed EC Motor: electronically commutated fan motors cut fan energy versus PSC motors
- Electric Defrost: factory electric defrost heaters (1,050 W) for freezer duty
- Multi-Refrigerant Ratings: published capacities for R-404A, R-448A, R-449A, R-454A, R-454C, R-455A
- 6 FPI Coil: fin spacing sized for frost-tolerant walk-in operation
- DOE AWEF Compliant Platform: part of the Larkin low profile line documented as meeting DOE minimum AWEF requirements
- RDS and intelliGen Controller: A2L preferred package: refrigerant detection system (RDS) plus intelliGen controller, set up for R-454A
Specifications
| Model | LEL0040BY6EEAG0212 |
|---|---|
| Brand / Series | Larkin LEL Low Profile Unit Cooler |
| Nominal Capacity | 4,000 BTU/h (model code) |
| Capacity R-404A (10°F TD / -20°F SST) | 3,500 BTU/h |
| Capacity R-448A/R-449A (10°F TD / -20°F SST) | 3,900 BTU/h |
| Capacity R-454A (10°F TD / -20°F SST) | 3,800 BTU/h |
| Capacity R-454C (10°F TD / -20°F SST) | 3,200 BTU/h |
| Capacity R-455A (10°F TD / -20°F SST) | 3,700 BTU/h |
| Defrost | Electric Defrost |
| Application | Freezer (low temperature), dual rated for cooler use |
| Fan Motors | EC 1-Speed |
| Number of Fans | 1 |
| Airflow | 685 CFM |
| Fins Per Inch | 6 |
| Fan Motor HP (each) | 1/20 |
| Defrost Heaters | 1,050 W (4.6 A at 208/230V 1-phase) |
| Electrical | 208/230V 1-Phase 60 Hz |
| Coil Inlet Connection | 1/2 in. OD |
| Suction Connection | 5/8 in. OD |
| Drain Connection | 3/4 MPT in. |
| Dimensions (L x D x H) | 29-1/2 x 13-1/4 x 16-7/16 in. |
| Net Weight (est.) | 36 lb |
| Refrigerants | R-404A, R-448A, R-449A, R-454A, R-454C, R-455A (A2L/HFC rated) |
| Factory Option Package | G0212: A2L preferred package: refrigerant detection system (RDS) plus intelliGen controller, set up for R-454A |
Ideal Applications
- Walk-in freezers for restaurants and commercial kitchens
- Convenience store and grocery freezers
- Ice cream and frozen food storage
- School, hospital and institutional frozen storage
Frequently Asked Questions
What refrigerants can the Larkin LEL0040BY6EEAG0212 use?
It is rated for R-404A, R-448A, R-449A, R-454A, R-454C, R-455A. Confirm the refrigerant matches your condensing unit and expansion valve before installation.
Is the LEL0040BY6EEAG0212 for a cooler or a freezer?
It is an electric defrost unit intended for freezers and is dual rated, so it can also be applied to coolers.
What power supply does it need?
The unit is wired for 208/230V 1-Phase 60 Hz. Electric defrost heaters draw significant current, so size the circuit per the nameplate.
What condensing unit should I pair with it?
Match the condensing unit capacity to the evaporator capacity at your design suction temperature, such as a Larkin LCH low temperature condensing unit. HVAC365 can help you size a matched system.
What does the option package include?
Package G0212 is the A2L preferred package: refrigerant detection system (RDS) plus intelliGen controller, set up for R-454A.
