Description
Overview

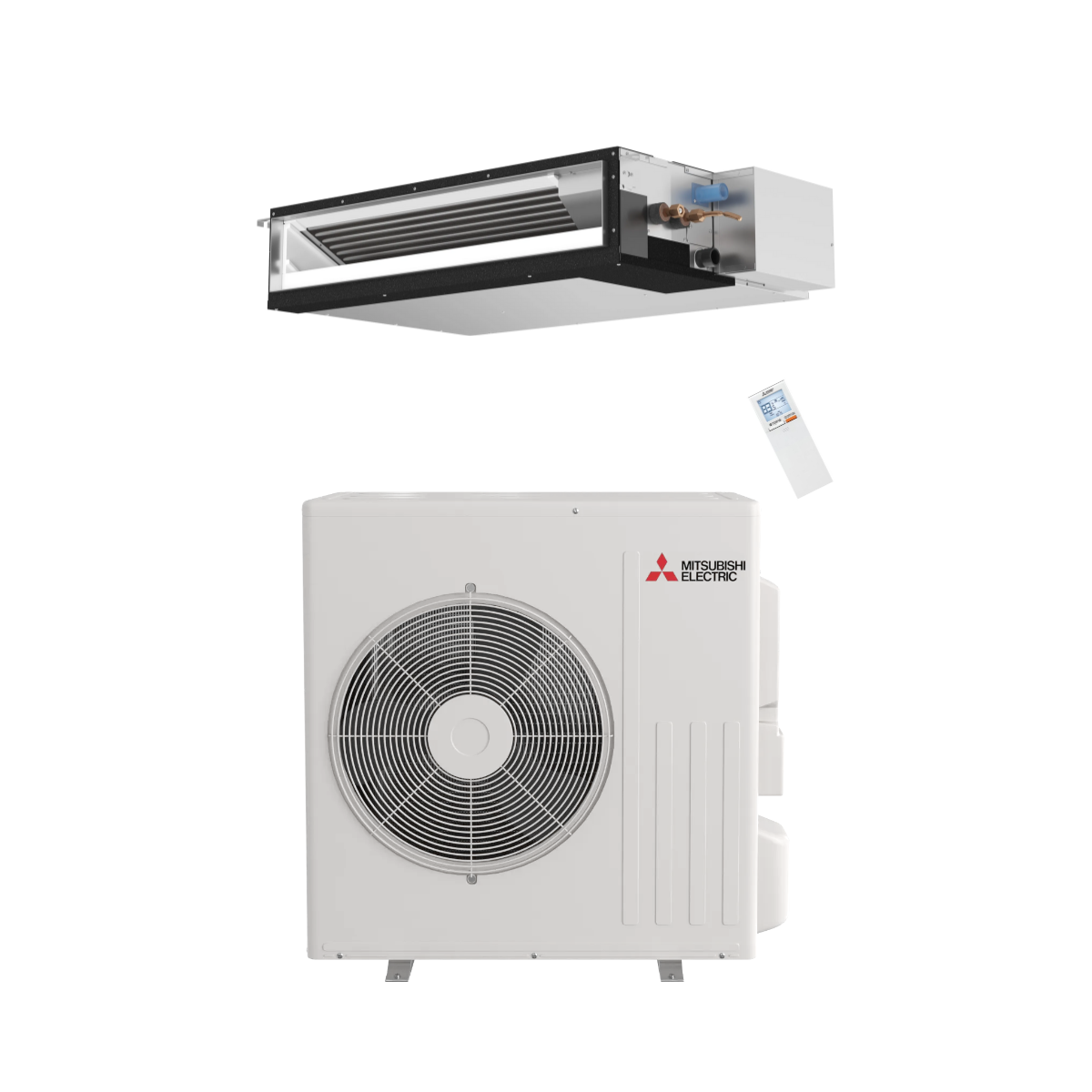

This system the Mitsubishi Electric SEZ-AD18NL indoor unit with the outdoor heat pump to deliver single-zone comfort in a low static horizontal-ducted indoor unit configuration. The combination is rated at 18,000 BTU/h cooling and is designed for efficient heating and cooling operation in residential and light commercial spaces. Published efficiency ratings include 17.0 SEER2, 12.8 EER2, and 10.4 HSPF2 (IV), helping buyers compare seasonal energy performance. Because this is a , key electrical and piping details are coordinated for proper compatibility. It’s a fit for projects where you want Mitsubishi comfort controls and inverter-driven capacity modulation in a compact, packaged selection.
Performance
The outdoor unit uses an inverter-driven compressor to modulate output and maintain setpoint with fewer temperature swings. Cooling capacity ranges from 5,500 to 18,000 BTU/h (rated 18,000), supporting part-load operation for shoulder seasons. At 47°F heating conditions, the system is rated at 20,000 BTU/h heating (maximum 23,500). At 17°F, rated heating capacity is 13,100 BTU/h for cold-weather planning. Listed COP at 47°F is 3.8, providing a reference point for efficiency in mild heating conditions. The outdoor section includes a Blue Fin coating and grooved piping features noted in the to support heat exchanger performance and durability. For designers, the published voltage is 208/230V single-phase, with a recommended 30A fuse/breaker size shown in the data.
Smart Features
Control flexibility is built into the through multiple controller and interface options documented for these units. SEZ-AD18NL indoor unit features note multiple control options including the Comfort app for remote access, third-party interfaces, and both wired and wireless controllers. Wi‑Fi-enabled configurations can with the Comfort app where listed, supporting remote temperature changes, fan adjustments, and scheduling. These control options can support single-zone living areas, offices, or supplemental conditioning zones where dependable setpoint control matters. If your project requires integration, the also reference third‑party interfaces as an available option depending on the installed controller package. For buyers, this translates into easier day‑to‑day management and fewer manual thermostat adjustments.
Comfort & Noise
Comfort performance is influenced by airflow range, discharge control, and sound output, all of which are documented in the for this match. Indoor airflow is listed at 423–635 (cooling/heating dry) CFM (depending on fan speed and mode). Indoor sound pressure levels are listed at 30–38 (cooling/heating) dB(A) across fan speeds. Available external static pressure settings are listed at 0.02, 0.06, 0.14, 0.20 in. w.g. for ducted applications. Indoor-unit features include a built-in condensate lift mechanism and an ultra-thin 7-7/8 inch high body intended for concealed ducted applications with short duct runs. The result is controllable air delivery that can be tuned for steady circulation or faster pull‑down/warm‑up using the system’s available modes. When with proper sizing and layout, this helps maintain even temperatures without over-conditioning a space.
Use Case Fit
This is well suited for projects that need a dedicated single-zone heat pump with a low static horizontal-ducted indoor unit indoor unit format. It fits concealed or ducted layouts where you want conditioned air delivered through short duct runs or distribution trunks. With documented operation across common indoor temperature ranges, it can support year-round comfort in many U.S. regions. Use it in homes, multi-family units, small retail, or office suites where zoning a single area improves comfort control and operating costs. For HVAC replacement projects, the pairing simplifies specifying compared with mixing components across families.
Value & Reliability
The call out durability and service-oriented design elements intended to support long-term ownership. Outdoor unit features listed include Blue Fin coating, inverter-driven compressor, and automatic restart after power returns. The outdoor unit directed-power concept and automatic restart behavior are also described, supporting resilience after power interruptions. Standardized 208/230V electrical and published wiring guidance help installers plan materials and circuits. For buyers comparing bundles, the combination of documented efficiency ratings and Mitsubishi control options supports a strong total-cost-of-ownership profile.
Summary Wrap-Up
Choose the -SEZ-AD18NL when you want a Mitsubishi Electric single-zone heat pump pairing SEZ-AD18NL with for predictable compatibility. With listed efficiency (17.0 SEER2 and 10.4 HSPF2 IV where published) and documented airflow/noise data, it’s straightforward to size and specify for comfort-driven projects. The indoor-unit form factor supports the layout needs of modern remodels and new builds, while inverter modulation supports steadier temperatures. If you’re sourcing equipment for a homeowner, contractor, or property manager, this keeps the selection simple while retaining Mitsubishi control flexibility. It’s a practical choice for single-room conditioning, additions, or dedicated zones that need reliable heating and cooling from a single system.
Key Features
- : SEZ-AD18NL with for a coordinated single-zone heat pump system.
- Efficiency ratings: Listed at 17.0 SEER2 and 10.4 HSPF2 (IV) for seasonal energy comparisons.
- Airflow range: Indoor airflow is listed at 423–635 (cooling/heating dry) CFM across fan settings for controllable air delivery.
- Sound performance: Indoor sound pressure levels are listed at 30–38 (cooling/heating) dB(A) depending on fan speed.
- Static pressure capability: External static pressure options listed at 0.02, 0.06, 0.14, 0.20 in. w.g. for duct design flexibility.
- Control options: Supports Comfort app, third-party interfaces, and wired/wireless controllers.
- Installation/service feature: Ultra-thin 7-7/8 inch high concealed ducted body and built-in condensate lift are listed.
Replaces Discontinued Models
- SUZ-AA18NL replaces: SUZ-KA18NA, SUZ-KA18NA2, SUZ-KA18NAR1
- SEZ-AD18NL replaces: SEZ-KD18NA, SEZ-KD18NA4, SEZ-KD18NA4R1
Replacement matches are based on unit type, capacity and features. Verify line set, electrical supply and controls before ordering. See the discontinued Mitsubishi model cross-reference for details and original manuals.
White Paper
- Mitsubishi SEZ-AD18NL + SUZ-AA18NL System Spec Sheet
- Mitsubishi SEZ-AD18NL Spec Sheet
- Mitsubishi SEZ-AD Series Installation Manual
- Mitsubishi SEZ-AD Series Operation Manual (Part 1 of 2)
- Mitsubishi SEZ-AD Series Operation Manual (Part 2 of 2)
- Mitsubishi SEZ-AD Series Service Manual
- Mitsubishi SUZ-AA Series Installation Manual
- Mitsubishi SUZ-AA Series Operation Manual
- Mitsubishi SUZ-AA Series Service Manual
