Daikin 5 Ton 13.7 SEER2 Gas/Electric Packaged Rooftop Unit, 140,000 BTU Heat, R-32, 208/230V 3-Phase | DSG0603DH00001S

Daikin Air Conditioners

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
DSG0603DH00001S
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives

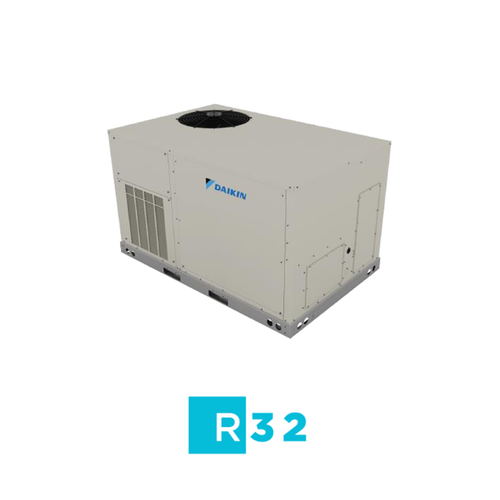

Daikin DSG0603DH00001S gas/electric packaged rooftop unit
Condition:
New
Width:
73.38 (in)
Height:
39.88 (in)
Depth:
47.63 (in)

Questions about Daikin 5 Ton 13.7 SEER2 Gas/Electric Packaged Rooftop Unit, 140,000 BTU Heat, R-32, 208/230V 3-Phase | DSG0603DH00001S?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Avaliable

$9,863.04
10 in stock • Ships in 2-3 Business Days

Description

Product Summary

The Daikin DSG0603DH00001S is a 5-ton standard efficiency gas/electric packaged rooftop unit from the Daikin DSG Series 3-6 Ton lineup, built for cooling with natural gas heating on light commercial buildings. It is factory charged with low-GWP R-32 refrigerant and wired for 208-230/3/60 power.

Key ratings include a rated cooling capacity of 57,500 BTU/h, efficiency of 13.7 SEER2 / 11.8 EER2, 140,000 BTU/h of gas heating input (112,000 BTU/h output). Electrical requirements are 28.1 A minimum circuit ampacity and 40 A maximum overcurrent protection. It suits contractors, facility managers and building owners replacing or adding rooftop equipment.

Key Features

  • R-32 Refrigerant: Lower global warming potential refrigerant, factory charged and tested.
  • Scroll Compression: Single-stage scroll compressor for reliable, quiet operation.
  • Gas Heat: 140,000 BTU/h input natural gas heat with WrinkleBend heat exchanger technology.
  • Direct-Drive Supply Fan: Direct-drive indoor fan for simple airflow setup and efficient operation.
  • Durable Cabinet: Galvanized steel cabinet with powder-paint finish for rooftop corrosion resistance.
  • Service Access: Draw-through filter section and accessible, weatherproof control box.
  • Factory Wired: Single-point power entry, factory wiring and run testing speed up commissioning.

Specifications

Model NumberDSG0603DH00001S
Brand / SeriesDaikin DSG Series 3-6 Ton (Standard Efficiency)
Unit TypeGas/Electric Packaged Rooftop Unit
Nominal Capacity5 Tons
Rated Cooling Capacity57,500 BTU/h
SEER213.7
EER211.8
Gas Heating Input (High Fire)140,000 BTU/h
Gas Heating Output112,000 BTU/h
Heating Efficiency80% Thermal Efficiency
CompressorSingle-stage scroll compressor
RefrigerantR-32 (factory charged)
Supply FanDirect drive, standard static
Nominal Airflow1,860 CFM
Electrical208-230/3/60
Minimum Circuit Ampacity (MCA)28.1 A
Maximum Overcurrent Protection (MOP)40 A
Shipping Weight624 lb
Manufacturer Warranty5 Years Parts, 20 Years Heat Exchanger, limited commercial warranty

Ideal Applications

  • Retail stores and strip centers
  • Restaurants and quick-service kitchens
  • Offices and professional buildings
  • Schools, churches and community buildings
  • Light industrial and warehouse spaces
  • Replacement of existing light commercial rooftop units

Frequently Asked Questions

What size is the Daikin DSG0603DH00001S?

It is a nominal 5-ton unit with a rated cooling capacity of 57,500 BTU/h. Have a load calculation done to confirm the size for your building.

What refrigerant does it use?

It uses R-32 and ships factory charged. Service technicians should use R-32 rated tools and recovery equipment.

What power supply does it need?

This model is built for 208-230/3/60 power, with 28.1 A MCA and 40 A MOP.

How much gas heat does it provide?

It has a 140,000 BTU/h high-fire input with 112,000 BTU/h output. Propane conversion and high-altitude kits are sold separately.

What accessories are available?

Daikin offers roof curbs, economizers, power exhaust, hail guards, dampers and thermostats for this cabinet. Contact HVAC365 to match the right accessories.

White Paper

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Daikin Air Conditioners
Width:
73.38 (in)
Height:
39.88 (in)
Depth:
47.63 (in)
Weight:
624.00 LBS
Capacity (Tons):
5
Heating Input (BTU):
140,000
SEER2:
13 SEER2
Refrigerant Type:
R-32
Voltage / Phase:
208/230V 3-Phase
Cooling Capacity (BTU):
57,500
EER2:
11 EER2
Compressor Stages:
Single Stage
DOE Regional Compliance:
Nationwide
Heating Output (BTU):
112,000
Low Stage Heating Input (BTU):
105,000
Thermal Efficiency:
80%
Gas Valve:
Two Stage
Number of Burners:
6
Temperature Rise Range:
High 35-65°F / Low 35-65°F
Heat Range:
High
Fuel Type:
Natural Gas
Electrical Phase:
3-Phase
Electrical Frequency:
60 Hz
Minimum Circuit Ampacity (MCA):
28.1 A
Maximum Overcurrent Protection (MOP):
40 A
Breaker Size (Amps):
40
Number of Compressors:
1
Compressor Type:
Scroll
Blower Motor Type:
Direct Drive (Standard Static)
Blower Motor HP:
1 HP
Airflow (CFM):
1,860
Max External Static Pressure (in. W.C.):
0.8
Filter Size:
20 x 25 x 2 (2)
Condensate Drain Size:
3/4" NPT
Refrigerant Charge (oz):
63
Sound Level (dB):
72
Unit Weight:
554 lb
Shipping Weight:
624 lb
Product Height:
39.875 in
Product Width:
73.375 in
Product Depth:
47.625 in
AHRI Certified:
Yes
AHRI Reference Number:
215414883
Product Line:
DSG
Package Type:
Gas/Electric
Product Category:
Gas Electric Package Unit
Warranty Information:
5 Years Parts & Compressor, 20 Years Heat Exchanger

Warranty Information

20 Years Heat Exchanger & 5 Years Parts | Registration Required within 60 Days of Purchase

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
