Description

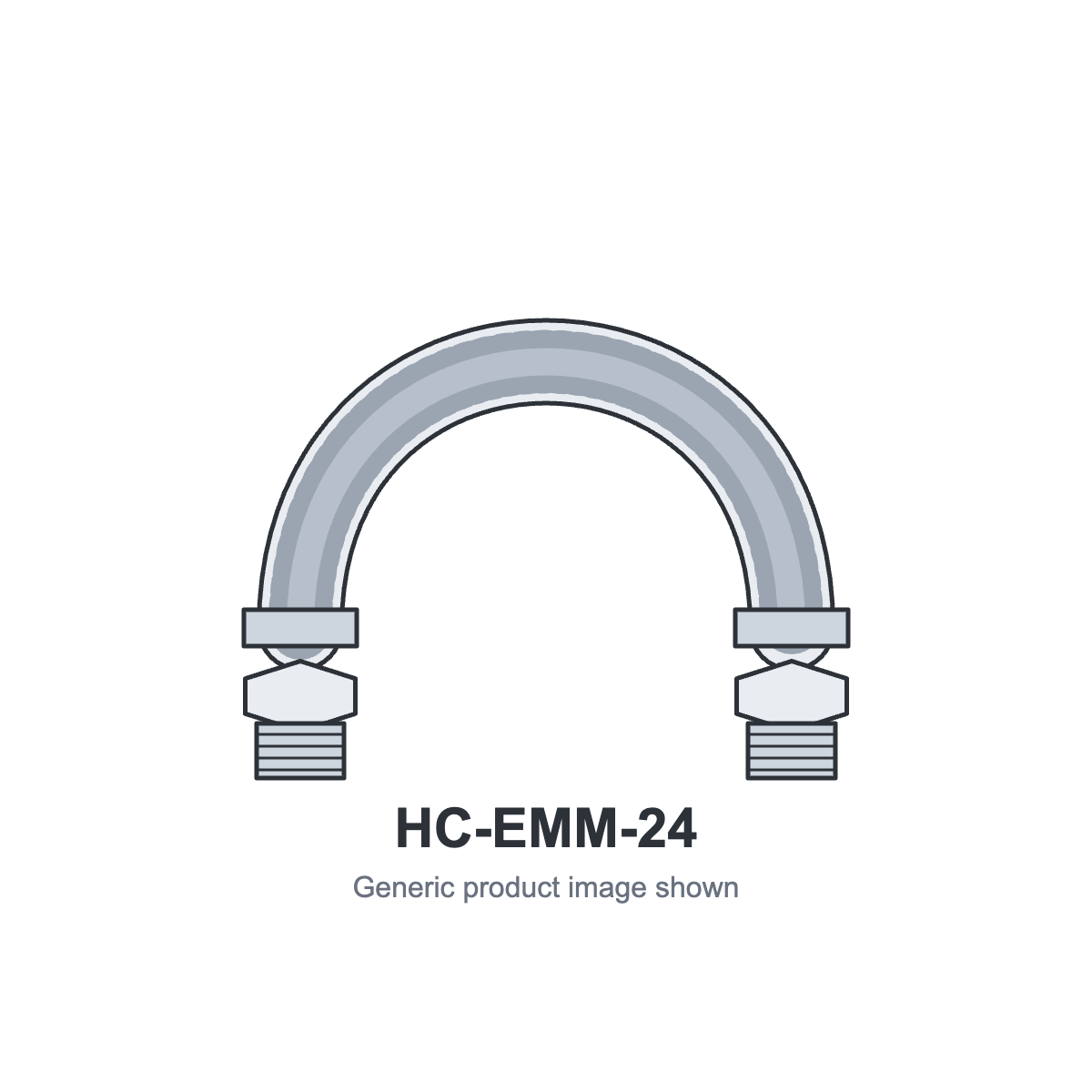

HCi 1-1/2" x 24" Stainless Steel Hose Assembly
This HCi 1-1/2" x 24" stainless steel braided hose makes the water connection between a large water source heat pump and the building loop. It is sized for belt-drive and high-capacity units with 1-1/2" water connections.
How it connects
One end is a fixed male NPT fitting and the other is a swivel end with a male NPT adapter. ClimateMaster and Comfort-aire belt-drive water source heat pumps use female pipe thread (FPT) water connections, so the hose threads straight into a 1-1/2" FPT unit connection and into your loop piping. The swivel end lets you snug the hose into position without twisting the braid.
Why a flexible connection
A flexible hose isolates compressor and blower vibration from the piping, takes up small misalignments between the unit and the loop, and makes the unit far easier to service or replace later. Follow the minimum bend radius in your heat pump's installation manual and keep bends away from the fittings.
Made to order
This hose is ordered for you from the manufacturer, so allow extra time before it ships.
