Rheem 2.5 Ton 28,400 BTU 15.2 SEER2 Air Conditioner Split System R454B | RA15AY30AJ1NALHP RF2TY3624STANSJB05417

Rheem

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
RA15AY30AJ1NALHP-RF2TY3624STANSJB05417
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives

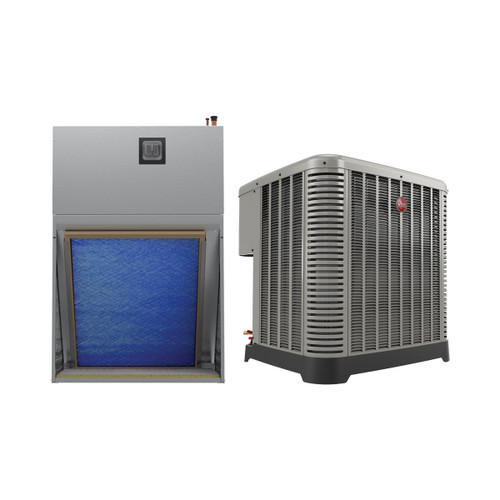

Rheem 2.5 Ton 28,400 BTU 15.2 SEER2 Air Conditioner Split System R454B | RA15AY30AJ1NALHP RF2TY3624STANSJB05417 - complete matched equipment bundle
Condition:
New
Width:
33.80 (in)
Height:
27.00 (in)
Depth:
33.80 (in)

Questions about Rheem 2.5 Ton 28,400 BTU 15.2 SEER2 Air Conditioner Split System R454B | RA15AY30AJ1NALHP RF2TY3624STANSJB05417?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Avaliable

$8,222.22
25 in stock • Ships in 2-3 Business Days

Description

Quick answer: This Rheem air conditioner split system is an AHRI-matched R454B system rated at 2.5 ton, 28,400 BTU, 15.2 SEER2, 12.0 EER2.

Included matched components

  • Outdoor unit: RA15AY30AJ1NALHP
  • Indoor air handler: RF2TY3624STANSJB05417
  • AHRI certificate: 215771394

What is sold separately?

thermostat, line set and installation materials unless specifically stated otherwise.

Verify the AHRI certificate, electrical requirements and installation requirements for the final application before ordering.

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
33.80 (in)
Height:
27.00 (in)
Depth:
33.80 (in)
Weight:
500.00 LBS
AHRI Certified:
Yes
AHRI Reference Number:
215771394
Refrigerant Type:
R-454B
Capacity (Tons):
2.5
Cooling Capacity (BTU):
30,000
Cooling (BTU) (delete):
28,400
SEER2:
15 SEER2
EER2:
12 EER2
Product Category:
Air Conditioner Split System
Product Line:
RA15AY
Outdoor Unit Model:
RA15AY30AJ1NALHP
Air Handler Model:
RF2TY3624STANSJB05417
Compatible Electric Heat Kits (Air Handler RF2TY3624STANSJB05417):
RXHJ-24B/T03J-1 (3 kW), RXHJ-24B/T05J-1 (4.8 kW), RXHJ-24B/T08J-1 (7.2 kW), RXHJ-24B/T10J-1 (9.6 kW)
Electric Heat Options (kW):
3, 4.8, 7.2, 9.6
UPC - RA15AY30AJ1NALHP:
662021715839
UPC - RF2TY3624STANSJB05417:
662021704208
Condenser RA15AY30AJ1NALHP - Nominal Capacity (Tons):
2.5
Condenser RA15AY30AJ1NALHP - Cooling Capacity (BTU/h):
28,600
Condenser RA15AY30AJ1NALHP - Refrigerant:
R-454B
Condenser RA15AY30AJ1NALHP - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Condenser RA15AY30AJ1NALHP - Minimum Circuit Ampacity (MCA):
17 A
Condenser RA15AY30AJ1NALHP - Maximum Overcurrent Protection (MOP):
25 A
Condenser RA15AY30AJ1NALHP - Compressor Type:
Scroll
Condenser RA15AY30AJ1NALHP - Compressor Stages:
1
Condenser RA15AY30AJ1NALHP - Liquid Line Size:
3/8 in
Condenser RA15AY30AJ1NALHP - Suction Line Size:
3/4 in
Condenser RA15AY30AJ1NALHP - Factory Refrigerant Charge:
92 oz
Condenser RA15AY30AJ1NALHP - Sound Level (dB):
71
Condenser RA15AY30AJ1NALHP - Unit Dimensions (W x D x H):
33.75 x 33.75 x 27 in
Condenser RA15AY30AJ1NALHP - Unit Weight:
190 lb
Condenser RA15AY30AJ1NALHP - Shipping Weight:
197 lb
Air Handler RF2TY3624STANSJB05417 - Nominal Capacity (Tons):
3
Air Handler RF2TY3624STANSJB05417 - Airflow (CFM):
1,200
Air Handler RF2TY3624STANSJB05417 - Blower Motor Type:
ECM (Electronically Commutated Motor), 1/2 HP
Air Handler RF2TY3624STANSJB05417 - Configuration:
Vertical
Air Handler RF2TY3624STANSJB05417 - Metering Device:
TXV/TEV - Thermostatic Expansion Valve
Air Handler RF2TY3624STANSJB05417 - Refrigerant:
R-454B
Air Handler RF2TY3624STANSJB05417 - Voltage/Phase/Hz:
208-240 V / 1 Ph / 60 Hz
Air Handler RF2TY3624STANSJB05417 - Unit Dimensions (W x D x H):
24.5 x 21 x 36 in
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Warning:
Yes
DOE Regional Compliance:
Nationwide
Compressor Stages:
Single Stage
Discharge:
Top
Voltage:
208/230V
Electrical Phase:
1-Phase
Energy Star Listed:
No
Matched Indoor Type:
Air Handler
Voltage / Phase:
208/230V 1-Phase

Warranty Information

10 Years Compressor & 10 Year Parts | Registration Required within 60 Days

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document
