Rheem 5 Ton 51,500 BTU 15.2 SEER2 Air Conditioner Split System R454B | RD16AY60AJVCA RH2VY6021STACAJ

Rheem

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
RD16AY60AJVCA-RH2VY6021STACAJ
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives

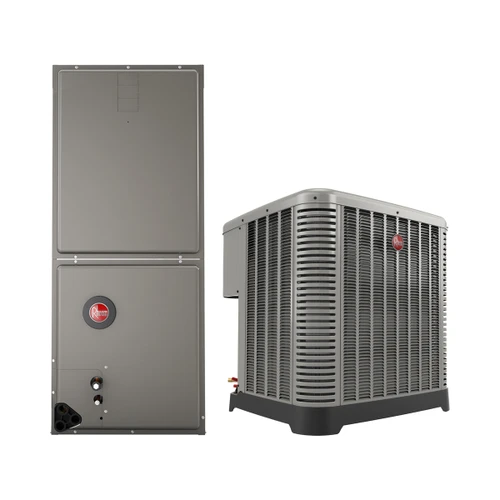

Rheem 5 Ton 51,500 BTU 15.2 SEER2 Air Conditioner Split System R454B | RD16AY60AJVCA RH2VY6021STACAJ - complete matched equipment bundle
Condition:
New
Width:
22.80 (in)
Height:
46.40 (in)
Depth:
42.20 (in)

Questions about Rheem 5 Ton 51,500 BTU 15.2 SEER2 Air Conditioner Split System R454B | RD16AY60AJVCA RH2VY6021STACAJ?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Avaliable

$15,148.07
25 in stock • Ships in 2-3 Business Days

Description

Quick answer: This Rheem air conditioner split system is an AHRI-matched R454B system rated at 5 ton, 51,500 BTU, 15.2 SEER2, 9.0 EER2, 8.5 HSPF2.

Included matched components

  • Outdoor unit: RD16AY60AJVCA
  • Indoor air handler: RH2VY6021STACAJ
  • AHRI certificate: 217349662

What is sold separately?

Compatible electric heat kit RXBH-1724C10J-B; Required control RETST800SYS; thermostat, line set and installation materials unless specifically stated otherwise.

Verify the AHRI certificate, electrical requirements and installation requirements for the final application before ordering.

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
22.80 (in)
Height:
46.40 (in)
Depth:
42.20 (in)
Weight:
500.00 LBS
AHRI Certified:
Yes
AHRI Number:
217349662
Refrigerant Type:
R454B
Capacity (Tons):
5
Cooling BTU | British Thermal Unit:
51,500
Cooling (BTU):
51,500
SEER2 | Seasonal Energy Efficiency Ratio 2:
15.2
EER2 | Energy Efficiency Ratio 2:
9.0
HSPF2 | Heating Seasonal Performance Factor 2:
8.5
Product Category:
Air Conditioner Split System
Product Line:
RD16AY
Outdoor Unit Model:
RD16AY60AJVCA
Air Handler Model:
RH2VY6021STACAJ
Compatible Electric Heat Kit (Sold Separately):
RXBH-1724(A/B/C)03J-B (3 kW), RXBH-1724(A/B/C)05J-B (4.8 kW), RXBH-1724(A/B/C)07J-B (7.2 kW), RXBH-1724(A/B/C)10J-B (9.6 kW), RXBH-1724A13J-B (12.5 kW), RXBH-1724A15J-B (14.4 kW), RXBH-1724A18J-B (17 kW), RXBH-24A20J-B (19.2 kW)
Required Control (Sold Separately):
RETST800SYS
HSPF2:
8.5
Electric Heat Options (kW):
3, 4.8, 7.2, 9.6, 12.5, 14.4, 17, 19.2, 24, 28.8
UPC - RD16AY60AJVCA:
662021758249
UPC - RH2VY6021STACAJ:
662021715129
Compatible Electric Heat Kit (Sold Separately) (2):
RXBH-24A25J-B (24 kW), RXBH-24A30J-B (28.8 kW)
Heat Pump RD16AY60AJVCA - Nominal Capacity (Tons):
5
Heat Pump RD16AY60AJVCA - Cooling Capacity (BTU/h):
56,000
Heat Pump RD16AY60AJVCA - Heating Capacity (BTU/h):
55,500
Heat Pump RD16AY60AJVCA - Refrigerant:
R-454B
Heat Pump RD16AY60AJVCA - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Heat Pump RD16AY60AJVCA - Minimum Circuit Ampacity (MCA):
31 A
Heat Pump RD16AY60AJVCA - Maximum Overcurrent Protection (MOP):
55 A
Heat Pump RD16AY60AJVCA - Compressor Stages:
Variable Speed (Inverter)
Heat Pump RD16AY60AJVCA - Liquid Line Size:
3/8 in
Heat Pump RD16AY60AJVCA - Suction Line Size:
7/8 in
Heat Pump RD16AY60AJVCA - Factory Refrigerant Charge:
169 oz
Heat Pump RD16AY60AJVCA - Sound Level (dB):
55-62
Heat Pump RD16AY60AJVCA - Unit Weight:
254 lb
Heat Pump RD16AY60AJVCA - Shipping Weight:
295 lb
Air Handler RH2VY6021STACAJ - Nominal Capacity (Tons):
5
Air Handler RH2VY6021STACAJ - Airflow (CFM):
1,140-1,857
Air Handler RH2VY6021STACAJ - Blower Motor Type:
ECM (Electronically Commutated Motor), 3/4 HP
Air Handler RH2VY6021STACAJ - Configuration:
Convertible
Air Handler RH2VY6021STACAJ - Metering Device:
TXV/TEV - Thermostatic Expansion Valve
Air Handler RH2VY6021STACAJ - Refrigerant:
R-454B
Air Handler RH2VY6021STACAJ - Voltage/Phase/Hz:
208-240 V / 1 Ph / 60 Hz
Air Handler RH2VY6021STACAJ - Minimum Circuit Ampacity (MCA):
8 A (blower only, no electric heat)
Air Handler RH2VY6021STACAJ - Liquid Line Size:
3/8 in
Air Handler RH2VY6021STACAJ - Suction Line Size:
7/8 in
Air Handler RH2VY6021STACAJ - Unit Dimensions (W x D x H):
21 x 21.69 x 57 in
Air Handler RH2VY6021STACAJ - Unit Weight:
140 lb
Air Handler RH2VY6021STACAJ - Shipping Weight:
152 lb
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Warning:
Yes
Heat Pump RD16AY60AJVCA - Compressor Type:
Scroll
Heat Pump RD16AY60AJVCA - Unit Dimensions (W x D x H):
22.8 x 42.3 x 46.4 in

Warranty Information

10 Years Compressor & 10 Year Parts | Registration Required within 60 Days

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
