Rheem 2 Ton 22,800 BTU 15.2 SEER2 Heat Pump Split System R454B | RP15AY24AJ2NA RF2TY2421STANSJB05417

Rheem

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
RP15AY24AJ2NA-RF2TY2421STANSJB05417
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives

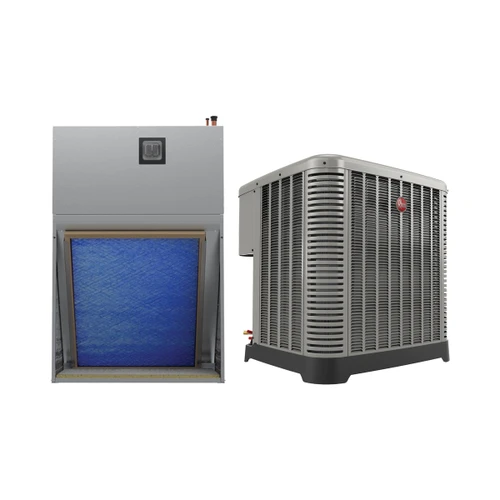

Rheem 2 Ton 22,800 BTU 15.2 SEER2 Heat Pump Split System R454B | RP15AY24AJ2NA RF2TY2421STANSJB05417 - complete matched equipment bundle
Condition:
New
Width:
29.80 (in)
Height:
25.00 (in)
Depth:
29.80 (in)

Questions about Rheem 2 Ton 22,800 BTU 15.2 SEER2 Heat Pump Split System R454B | RP15AY24AJ2NA RF2TY2421STANSJB05417?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Avaliable

$7,381.47
25 in stock • Ships in 2-3 Business Days

Description

Quick answer: This Rheem heat pump split system is an AHRI-matched R454B system rated at 2 ton, 22,800 BTU, 15.2 SEER2, 11.7 EER2, 7.8 HSPF2.

Included matched components

  • Outdoor unit: RP15AY24AJ2NA
  • Indoor air handler: RF2TY2421STANSJB05417
  • AHRI certificate: 216533425

What is sold separately?

thermostat, line set and installation materials unless specifically stated otherwise.

Verify the AHRI certificate, electrical requirements and installation requirements for the final application before ordering.

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
29.80 (in)
Height:
25.00 (in)
Depth:
29.80 (in)
Weight:
500.00 LBS
AHRI Certified:
Yes
AHRI Number:
216533425
Refrigerant Type:
R454B
Capacity (Tons):
2
Cooling BTU | British Thermal Unit:
22,800
Cooling (BTU):
22,800
SEER2 | Seasonal Energy Efficiency Ratio 2:
15.2
EER2 | Energy Efficiency Ratio 2:
11.7
HSPF2 | Heating Seasonal Performance Factor 2:
7.8
Product Category:
Heat Pump Split System
Product Line:
RP15AY
Outdoor Unit Model:
RP15AY24AJ2NA
Air Handler Model:
RF2TY2421STANSJB05417
HSPF2:
7.8
Compatible Electric Heat Kits (Air Handler RF2TY2421STANSJB05417):
RXHJ-21B/T03J-1 (3 kW), RXHJ-21B/T05J-1 (4.8 kW), RXHJ-21B/T08J-1 (7.2 kW), RXHJ-21B/T10J-1 (9.6 kW)
Electric Heat Options (kW):
3, 4.8, 7.2, 9.6
UPC - RP15AY24AJ2NA:
662021694325
UPC - RF2TY2421STANSJB05417:
662021706387
Heat Pump RP15AY24AJ2NA - Nominal Capacity (Tons):
2
Heat Pump RP15AY24AJ2NA - Cooling Capacity (BTU/h):
22,800
Heat Pump RP15AY24AJ2NA - Heating Capacity (BTU/h):
22,600
Heat Pump RP15AY24AJ2NA - Refrigerant:
R-454B
Heat Pump RP15AY24AJ2NA - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Heat Pump RP15AY24AJ2NA - Minimum Circuit Ampacity (MCA):
16 A
Heat Pump RP15AY24AJ2NA - Maximum Overcurrent Protection (MOP):
25 A
Heat Pump RP15AY24AJ2NA - Compressor Type:
Scroll
Heat Pump RP15AY24AJ2NA - Compressor Stages:
2
Heat Pump RP15AY24AJ2NA - Liquid Line Size:
3/8 in
Heat Pump RP15AY24AJ2NA - Suction Line Size:
3/4 in
Heat Pump RP15AY24AJ2NA - Factory Refrigerant Charge:
83 oz
Heat Pump RP15AY24AJ2NA - Sound Level (dB):
73
Heat Pump RP15AY24AJ2NA - Unit Dimensions (W x D x H):
29.75 x 29.75 x 25 in
Heat Pump RP15AY24AJ2NA - Unit Weight:
150 lb
Heat Pump RP15AY24AJ2NA - Shipping Weight:
157 lb
Air Handler RF2TY2421STANSJB05417 - Nominal Capacity (Tons):
2
Air Handler RF2TY2421STANSJB05417 - Airflow (CFM):
800
Air Handler RF2TY2421STANSJB05417 - Blower Motor Type:
ECM (Electronically Commutated Motor), 1/3 HP
Air Handler RF2TY2421STANSJB05417 - Configuration:
Vertical
Air Handler RF2TY2421STANSJB05417 - Metering Device:
TXV/TEV - Thermostatic Expansion Valve
Air Handler RF2TY2421STANSJB05417 - Refrigerant:
R-454B
Air Handler RF2TY2421STANSJB05417 - Voltage/Phase/Hz:
208-240 V / 1 Ph / 60 Hz
Air Handler RF2TY2421STANSJB05417 - Unit Dimensions (W x D x H):
21.5 x 17 x 36 in
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Warning:
Yes

Warranty Information

10 Years Compressor & 10 Year Parts | Registration Required within 60 Days

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
