Rheem 2.5 Ton 28,400 BTU 14.3 SEER2 Air Conditioner Split System R454B Select Series | WA15AY30AJ1NA WH1PY3017STANNJ

Rheem

Local HVAC Offers

Special pricing available — add to cart or call for details.
Limited-time availability.
About this promotion
Cyber Weekend Sales Event

No reviews yet Write a Review
SKU:
WA15AY30AJ1NA-WH1PY3017STANNJ
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives

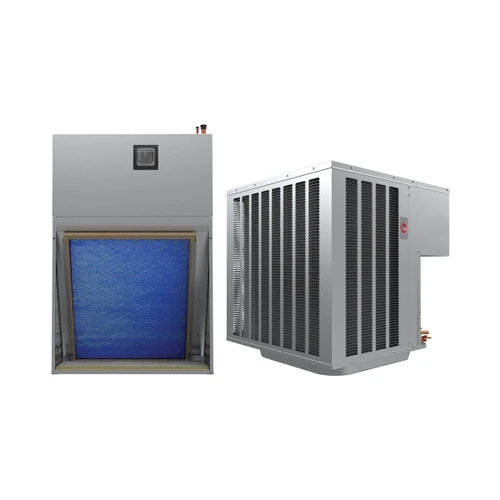

Rheem 2.5 Ton 28,400 BTU 14.3 SEER2 Air Conditioner Split System R454B Select Series | WA15AY30AJ1NA WH1PY3017STANNJ - complete matched equipment bundle
Condition:
New
Width:
33.70 (in)
Height:
25.20 (in)
Depth:
33.70 (in)

Questions about Rheem 2.5 Ton 28,400 BTU 14.3 SEER2 Air Conditioner Split System R454B Select Series | WA15AY30AJ1NA WH1PY3017STANNJ?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

At a glance

Fast Shipping

Customer Support

Warranty Coverage

Financing Avaliable

$4,708.53
25 in stock • Ships in 2-3 Business Days

Description

Quick answer: This Rheem air conditioner split system is an AHRI-matched R454B system rated at 2.5 ton, 28,400 BTU, 14.3 SEER2, 11.7 EER2.

Included matched components

  • Outdoor unit: WA15AY30AJ1NA
  • Indoor air handler: WH1PY3017STANNJ
  • AHRI certificate: 217047492

What is sold separately?

Compatible electric heat kit RXBH-1724C05J-B; thermostat, line set and installation materials unless specifically stated otherwise.

Verify the AHRI certificate, electrical requirements and installation requirements for the final application before ordering.

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
33.70 (in)
Height:
25.20 (in)
Depth:
33.70 (in)
Weight:
500.00 LBS
AHRI Certified:
Yes
AHRI Number:
217047492
Refrigerant Type:
R454B
Capacity (Tons):
2.5
Cooling BTU | British Thermal Unit:
28,400
Cooling (BTU):
28,400
SEER2 | Seasonal Energy Efficiency Ratio 2:
14.3
EER2 | Energy Efficiency Ratio 2:
11.7
Product Category:
Air Conditioner Split System
Product Line:
WA15AY
Outdoor Unit Model:
WA15AY30AJ1NA
Air Handler Model:
WH1PY3017STANNJ
Compatible Electric Heat Kit (Sold Separately):
RXBH-1724(A/B/C)03J-1 (3 kW), RXBH-1724(A/B/C)05J-1 (4.8 kW), RXBH-1724(A/B/C)07J-1 (7.2 kW), RXBH-1724(A/B/C)10J-1 (9.6 kW), RXBH-1724A13J-1 (12.5 kW), RXBH-1724A15J-1 (14.4 kW), RXBH-1724A18J-1 (17 kW)
Electric Heat Options (kW):
3, 4.8, 7.2, 9.6, 12.5, 14.4, 17
UPC - WA15AY30AJ1NA:
662021715525
UPC - WH1PY3017STANNJ:
662021720451
Condenser WA15AY30AJ1NA - Nominal Capacity (Tons):
2.5
Condenser WA15AY30AJ1NA - Cooling Capacity (BTU/h):
28,600
Condenser WA15AY30AJ1NA - Refrigerant:
R-454B
Condenser WA15AY30AJ1NA - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Condenser WA15AY30AJ1NA - Minimum Circuit Ampacity (MCA):
17 A
Condenser WA15AY30AJ1NA - Maximum Overcurrent Protection (MOP):
25 A
Condenser WA15AY30AJ1NA - Compressor Type:
Scroll
Condenser WA15AY30AJ1NA - Liquid Line Size:
3/8 in
Condenser WA15AY30AJ1NA - Suction Line Size:
3/4 in
Condenser WA15AY30AJ1NA - Factory Refrigerant Charge:
92 oz
Condenser WA15AY30AJ1NA - Sound Level (dB):
71
Condenser WA15AY30AJ1NA - Unit Weight:
180 lb
Condenser WA15AY30AJ1NA - Shipping Weight:
208 lb
Air Handler WH1PY3017STANNJ - Nominal Capacity (Tons):
2.5
Air Handler WH1PY3017STANNJ - Airflow (CFM):
1,000
Air Handler WH1PY3017STANNJ - Blower Motor Type:
PSC (Permanent Split Capacitor), 1/4 HP
Air Handler WH1PY3017STANNJ - Configuration:
Multi-Position
Air Handler WH1PY3017STANNJ - Metering Device:
TXV/TEV - Thermostatic Expansion Valve
Air Handler WH1PY3017STANNJ - Refrigerant:
R-454B
Air Handler WH1PY3017STANNJ - Voltage/Phase/Hz:
208-240 V / 1 Ph / 60 Hz
Air Handler WH1PY3017STANNJ - Minimum Circuit Ampacity (MCA):
4 A (blower only, no electric heat)
Air Handler WH1PY3017STANNJ - Liquid Line Size:
3/8 in
Air Handler WH1PY3017STANNJ - Suction Line Size:
3/4 in
Air Handler WH1PY3017STANNJ - Unit Dimensions (W x D x H):
17.5 x 21.69 x 42.5 in
Air Handler WH1PY3017STANNJ - Unit Weight:
90 lb
Air Handler WH1PY3017STANNJ - Shipping Weight:
104 lb
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Prop 65 Warning:
Yes

Warranty Information

10 Years Compressor & 10 Year Parts | Registration Required within 60 Days

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
