Description
Overview

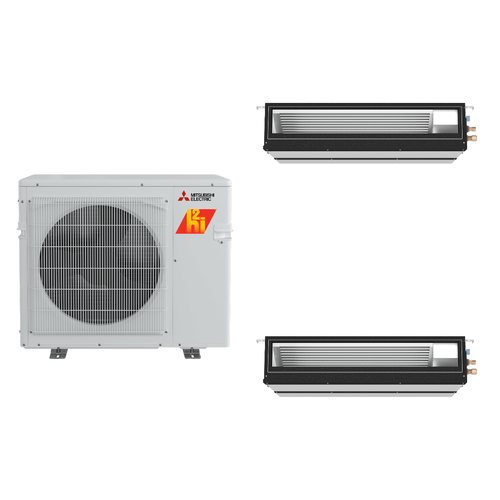

This Mitsubishi Electric multi-zone heat pump system pairs the MXZ-4D30NL outdoor unit with 2 PEAD-AA mid-static ducted indoor units for dual-zone heating and cooling. Every indoor unit in this system uses the same mount style, so each room gets matching appearance, airflow and controls. The system runs on 208/230V, 1-phase, 60 Hz power and uses R-454B refrigerant.
What Is Included
- 1 x MXZ-4D30NL multi-zone outdoor unit (4-port, Inverter Twin Rotary compressor)
- 2 x PEAD-AA15NL (15,000 BTU class PEAD-AA mid-static ducted)
Performance
Ducted system ratings for the MXZ-4D30NL: up to 16.1 SEER2, 9.6 EER2 and 8.8 HSPF2, with rated capacities of 27,400 BTU/h cooling and 27,600 BTU/h heating. Connected indoor capacity for this combination totals 30,000 BTU/h class (15K + 15K). Heating operation is rated down to 6 F outdoor temperature. Final efficiency depends on the exact AHRI-matched combination.
Comfort and Noise
Each zone has its own indoor unit and controller, so occupied rooms can be conditioned independently while unused rooms stay idle. The INVERTER-driven compressor modulates capacity to hold set points closely and reduce on/off cycling. Outdoor sound level is rated at 53 dB(A).
Smart Features
Wi-Fi control through the Mitsubishi Electric Comfort app is available with the optional Wi-Fi interface kit. Each indoor unit supports Mitsubishi Electric wireless or wired controllers for local zone control.
Use Case Fit
Concealed ducted indoor units sit in an attic, crawlspace or soffit and deliver air through short duct runs, keeping equipment out of sight. Confirm room loads, line set lengths and electrical requirements before ordering.
Value and Reliability
Bundling the outdoor unit with matched indoor units in one product simplifies ordering. Warranty: 7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase
Key Features
- Dual-zone system: 15K + 15K
- Ducted rating up to 16.1 SEER2 / 8.8 HSPF2
- R-454B refrigerant
- Heating down to 6 F
- Single mount style throughout: Ducted
Replaces Discontinued Models
- MXZ-4D30NL replaces: MUM30EN2, MUM30NN, MUM30NN2, MXZ-4A36NA, MXZ-4B36NA, MXZ-4C36NA, MXZ-4C36NA2, MXZ-4C36NA3, MXZ-4C36NA4, MXZ-4C36NAHZ, MXZ-4C36NAHZ2-U1, MXZ30TN, MXZ30TN2
- PEAD-AA15NL replaces: PEAD-A15AA7, PEAD-A15AA8, PEAD-A15AA9
Replacement matches are based on unit type, capacity and features. Verify line set, electrical supply and controls before ordering. See the discontinued Mitsubishi model cross-reference for details and original manuals.
