Mitsubishi Electric 48,000 BTU Single Zone Heat Pump Outdoor Unit PUZ-AK Series R454B | PUZ-AK48NL

Mitsubishi Electric

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
PUZ-AK48NL
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives
Mitsubishi Electric 48,000 BTU Single Zone Heat Pump Outdoor Unit PUZ-AK Series R454B, model PUZ-AK48NL
Condition:
New
Width:
41.34 (in)
Height:
52.67 (in)
Depth:
14.00 (in)

Questions about Mitsubishi Electric 48,000 BTU Single Zone Heat Pump Outdoor Unit PUZ-AK Series R454B | PUZ-AK48NL?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$10,795.96
10 in stock • Ships in 1-2 Business Days
Overview

Mitsubishi Electric 48,000 BTU Single Zone Heat Pump Outdoor Unit PUZ-AK Series R454B | PUZ-AK48NL

Mitsubishi Electric 48,000 BTU Single Zone Heat Pump Outdoor Unit PUZ-AK Series R454B, model PUZ-AK48NL
Product details

Description

Overview

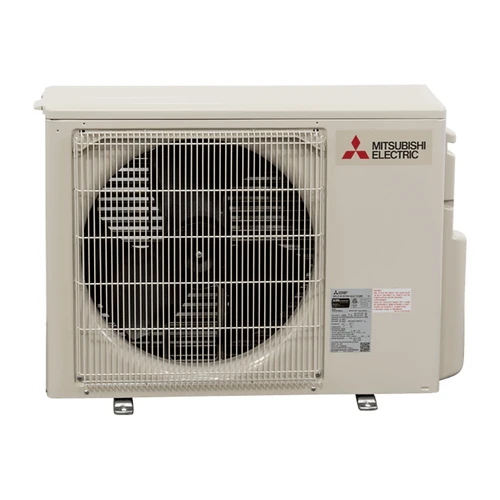

The Mitsubishi Electric PUZ-AK48NL is a 48,000 BTU class single-zone heat pump outdoor unit from the PUZ-AK series. It uses R-454B refrigerant and is sold individually so it can be matched with compatible Mitsubishi Electric indoor units.

Compatibility

Confirm the approved indoor/outdoor combination, line set sizes and electrical requirements against the Mitsubishi Electric submittal before ordering. Professional installation is recommended.

Warranty

7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase

Replaces Discontinued Models

Replacement matches are based on unit type, capacity and features. Verify line set, electrical supply and controls before ordering. See the discontinued Mitsubishi model cross-reference for details and original manuals.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Mitsubishi Electric
Width:
41.34 (in)
Height:
52.67 (in)
Depth:
14.00 (in)
Weight:
291.00 LBS
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product Category:
Ductless Mini Split Outdoor Unit
Product Line:
PUZ-AK Series
Cooling Capacity (BTU):
48,000
Capacity (Tons):
4
Refrigerant Type:
R-454B
Voltage / Phase:
208/230V 1-Phase
System Type:
Heat Pump
Cold Climate:
No
Nominal Capacity (Tons):
4
Cooling Capacity (BTU/h):
48,000
Heating Output (BTU):
40,000 - 69,000 BTU
Maximum Indoor Units (Zones):
1
Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Minimum Circuit Ampacity (MCA):
38 A
Maximum Overcurrent Protection (MOP):
67 A
Compressor Type:
Twin Rotary
Minimum Heating Temp (F):
-4 F
Sound Level (dB):
60
Liquid Line Size:
3/8 in
Suction Line Size:
5/8 in
Unit Dimensions (W x D x H):
41.34 in x 14 in x 52.67 in
Unit Weight:
265 lb
Shipping Weight:
291 lb
Replaces Models:
PUH-4G6, PUHX-48TG6
Zones:
1
Minimum Heating Temp (°F):
-4
Heating Capacity (BTU/h):
60,000
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase
Frequently asked questions
How much cooling does the provide?
It is rated for 48,000 BTU of cooling.
What size is the ?
The is a 4 ton unit.
What refrigerant does the use?
It uses R-454B refrigerant.
What power supply does the need?
It requires 208/230V 1-Phase power.
Which models does the replace?
PUH-4G6, PUHX-48TG6
How many zones does the support?
It supports 1 zone(s).
How cold can it be outside for the to keep heating?
It is rated to heat down to -4 °F outdoors.
What warranty comes with the PUZ-AK48NL?
7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase
Who makes the PUZ-AK48NL?
The PUZ-AK48NL is made by Mitsubishi Electric.
