Overview

Mitsubishi Electric 60,000 BTU 20 SEER2 Smart Multi Tri Zone Wall Mounted Ductless Mini Split Heat Pump System 9+18+36 with Branch Box R454B | MXZ-SM60NL-MSZ-GX09NL-MSZ-GX18NL-MSZ-GX36NL-PAC-LMA30BC

Mitsubishi Electric 60,000 BTU 20 SEER2 Smart Multi Tri Zone Wall Mounted Ductless Mini Split Heat Pump System 9+18+36 with Branch Box R454B
Product details

Description

Overview

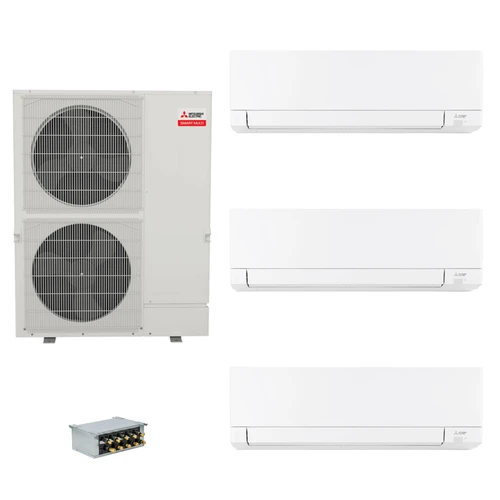

This Mitsubishi Electric Smart Multi heat pump system pairs the MXZ-SM60NL outdoor unit with 3 MSZ-GX wall-mounted indoor units connected through a branch box for tri-zone heating and cooling. Every indoor unit uses the same mount style, so each room gets matching appearance, airflow and controls. The system runs on 208/230V, 1-phase, 60 Hz power and uses R-454B refrigerant.

What Is Included

  • 1 x MXZ-SM60NL Smart Multi outdoor unit
  • 1 x MSZ-GX09NL (9,000 BTU class MSZ-GX wall-mounted)
  • 1 x MSZ-GX18NL (18,000 BTU class MSZ-GX wall-mounted)
  • 1 x MSZ-GX36NL (36,000 BTU class MSZ-GX wall-mounted)
  • 1 x PAC-LMA30BC 3-port branch box

Performance

Non-ducted system ratings for the MXZ-SM60NL: up to 20 SEER2, 12 EER2 and 10.5 HSPF2, with rated capacities of 60,000 BTU/h cooling and 66,000 BTU/h heating. Connected indoor capacity for this combination totals 63,000 BTU/h class (9K + 18K + 36K). Heating operation is rated down to -13 F outdoor temperature. Final efficiency depends on the exact AHRI-matched combination.

Comfort and Noise

Each zone has its own indoor unit and controller, so occupied rooms can be conditioned independently. The INVERTER-driven compressor modulates capacity to hold set points closely and reduce on/off cycling.

Smart Features

Wi-Fi control through the Mitsubishi Electric Comfort app is available with the optional Wi-Fi interface kit. Each indoor unit supports Mitsubishi Electric wireless or wired controllers.

Use Case Fit

Wall-mounted indoor units suit bedrooms, offices, living rooms and additions. Confirm room loads, line set lengths, branch box location and electrical requirements before ordering.

Value and Reliability

Bundling the outdoor unit, matched indoor units and branch boxes in one product simplifies ordering. Warranty: 7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase

Key Features

  • Tri-zone Smart Multi system: 9K + 18K + 36K
  • Non-ducted rating up to 20 SEER2 / 10.5 HSPF2
  • Branch box(es) included: PAC-LMA30BC
  • R-454B refrigerant
  • Single mount style throughout: Wall Mount

Replaces Discontinued Models

Replacement matches are based on unit type, capacity and features. Verify line set, electrical supply and controls before ordering. See the discontinued Mitsubishi model cross-reference for details and original manuals.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Mitsubishi Electric
Width:
41.30 (in)
Height:
52.70 (in)
Depth:
13.00 (in)
Weight:
126.00 LBS
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Cooling Capacity (BTU):
60,000
Capacity (Tons):
5
Zones:
3
Mount Type:
Wall Mount
System Type:
Heat Pump
SEER2:
20+ SEER2
EER2:
12 EER2
HSPF2:
10+ HSPF2
Cold Climate:
No
Minimum Heating Temp (°F):
-13
Refrigerant Type:
R-454B
Electrical Phase:
1-Phase
Voltage / Phase:
208/230V 1-Phase
Sound Level Outdoor (dB):
58
Indoor Unit Combination:
9K + 18K + 36K
Wi-Fi Control:
Optional Kit
Product Line:
MXZ Smart Multi
Compressor Stages:
Variable Speed
DOE Regional Compliance:
Nationwide
Branch Boxes Included:
1 x PAC-LMA30BC
AHRI Rating Basis:
Non-Ducted system rating (submittal)
Outdoor Unit MXZ-SM60NL - Nominal Capacity (Tons):
5
Outdoor Unit MXZ-SM60NL - Cooling Capacity (BTU/h):
60,000
Outdoor Unit MXZ-SM60NL - Maximum Indoor Units (Zones):
8
Outdoor Unit MXZ-SM60NL - Refrigerant:
R-454B
Outdoor Unit MXZ-SM60NL - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Outdoor Unit MXZ-SM60NL - Compressor Type:
Twin Rotary
Outdoor Unit MXZ-SM60NL - Minimum Heating Temp (F):
-13 F
Outdoor Unit MXZ-SM60NL - Sound Level (dB):
58
Outdoor Unit MXZ-SM60NL - Liquid Line Size:
3/8 in
Outdoor Unit MXZ-SM60NL - Suction Line Size:
3/4 in
Outdoor Unit MXZ-SM60NL - Unit Dimensions (W x D x H):
41.34 in x 13 in x 52.69 in
Indoor Unit MSZ-GX09NL - Type:
Wall Mounted
Indoor Unit MSZ-GX09NL - Nominal Capacity (Tons):
0.75
Indoor Unit MSZ-GX09NL - Cooling Capacity (BTU/h):
9,000
Indoor Unit MSZ-GX09NL - Heating Capacity (BTU/h):
10,900
Indoor Unit MSZ-GX09NL - Refrigerant:
R-454B
Indoor Unit MSZ-GX09NL - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Indoor Unit MSZ-GX09NL - Airflow (CFM):
151-448
Indoor Unit MSZ-GX09NL - Sound Level (dB):
19-43
Indoor Unit MSZ-GX09NL - Liquid Line Size:
1/4 in
Indoor Unit MSZ-GX09NL - Suction Line Size:
3/8 in
Indoor Unit MSZ-GX09NL - Unit Dimensions (W x D x H):
31.41 in x 9.66 in x 11.78 in
Indoor Unit MSZ-GX09NL - Unit Weight:
23 lb
Indoor Unit MSZ-GX09NL - Shipping Weight:
27 lb
Indoor Unit MSZ-GX18NL - Type:
Wall Mounted
Indoor Unit MSZ-GX18NL - Nominal Capacity (Tons):
1.5
Indoor Unit MSZ-GX18NL - Cooling Capacity (BTU/h):
18,000
Indoor Unit MSZ-GX18NL - Heating Capacity (BTU/h):
21,600
Indoor Unit MSZ-GX18NL - Refrigerant:
R-454B
Indoor Unit MSZ-GX18NL - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Indoor Unit MSZ-GX18NL - Airflow (CFM):
324-650
Indoor Unit MSZ-GX18NL - Sound Level (dB):
28-49
Indoor Unit MSZ-GX18NL - Liquid Line Size:
1/4 in
Indoor Unit MSZ-GX18NL - Suction Line Size:
1/2 in
Indoor Unit MSZ-GX18NL - Unit Dimensions (W x D x H):
43.31 in x 10.13 in x 12.81 in
Indoor Unit MSZ-GX18NL - Unit Weight:
37 lb
Indoor Unit MSZ-GX18NL - Shipping Weight:
42 lb
Indoor Unit MSZ-GX36NL - Type:
Wall Mounted
Indoor Unit MSZ-GX36NL - Nominal Capacity (Tons):
3
Indoor Unit MSZ-GX36NL - Cooling Capacity (BTU/h):
33,800
Indoor Unit MSZ-GX36NL - Heating Capacity (BTU/h):
35,200
Indoor Unit MSZ-GX36NL - Refrigerant:
R-454B
Indoor Unit MSZ-GX36NL - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Indoor Unit MSZ-GX36NL - Airflow (CFM):
324-765
Indoor Unit MSZ-GX36NL - Sound Level (dB):
30-53
Indoor Unit MSZ-GX36NL - Liquid Line Size:
1/4 in
Indoor Unit MSZ-GX36NL - Suction Line Size:
5/8 in
Indoor Unit MSZ-GX36NL - Unit Dimensions (W x D x H):
43.31 in x 10.13 in x 12.81 in
Indoor Unit MSZ-GX36NL - Unit Weight:
37 lb
Indoor Unit MSZ-GX36NL - Shipping Weight:
42 lb
Branch Box PAC-LMA30BC - Ports:
3
Branch Box PAC-LMA30BC - Indoor Liquid Connections:
1/4 in (Ports A-C)
Branch Box PAC-LMA30BC - Indoor Gas Connections:
3/8 in (Ports A-C)
Branch Box PAC-LMA30BC - Outdoor Liquid Connection:
3/8 in
Branch Box PAC-LMA30BC - Outdoor Gas Connection:
5/8 in
Branch Box PAC-LMA30BC - Voltage/Phase/Hz:
208-230 V / 1 Ph / 60 Hz
Branch Box PAC-LMA30BC - Unit Dimensions (W x D x H):
17.75 in x 11.06 in x 6.75 in
Branch Box PAC-LMA30BC - Unit Weight:
15 lb
Branch Box PAC-LMA30BC - Power Input:
0.003 kW
Branch Box PAC-LMA30BC - Running Current:
0.15 A
Indoor Unit MSZ-GX09NL - Quantity:
1
Indoor Unit MSZ-GX18NL - Quantity:
1
Indoor Unit MSZ-GX36NL - Quantity:
1
Branch Box PAC-LMA30BC - Quantity:
1
Replaces Models:
MXZ-8C60NA, MXZ-8C60NA-U1, MXZ-8C60NA2-U1, MXZ-SM60NAM, MXZ-SM60NAM2, MSH09CW, MSH09DW-U1, MSH09EW, MSH09NW, MSH09NW2, MSH09TW, MSHM09CN, MSZ-A09NA, MSZ-GE09NA, MSZ-GL09NA, MSZ-GS09NA, MSZ09UN, MSH17NN, MSH17NN2, MSH17TN, MSZ-A17NA, MSZ-GE18NA
Replaces Models:
MSZ-GL18NA, MSZ-GS18NA, MSZ-D36NA, MSZ-GS36NA, MSZ-GS36NA2, PAC-AKA31BC, PAC-MKA30BC, PAC-MKA31BC, PAC-MKA32BC, PAC-MKA33BC
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase
Videos2 videos
How Heat Pumps Work: Mitsubishi Electric Mr. Slim Explained
Frequently asked questions
How much cooling does the provide?
It is rated for 60,000 BTU of cooling.
What size is the ?
The is a 5 ton unit.
How many zones does the support?
It supports 3 zone(s).
What is the SEER2 rating of the ?
The is rated at 20+ SEER2 SEER2.
What is the HSPF2 heating efficiency of the ?
It is rated at 10+ HSPF2 HSPF2.
How cold can it be outside for the to keep heating?
It is rated to heat down to -13 °F outdoors.
What refrigerant does the use?
It uses R-454B refrigerant.
What power supply does the need?
It requires 208/230V 1-Phase power.
How loud is the outdoors?
The rated outdoor sound level is 58 dB.
Can the be controlled over Wi-Fi?
Optional Kit.
Which models does the replace?
MXZ-8C60NA, MXZ-8C60NA-U1, MXZ-8C60NA2-U1, MXZ-SM60NAM, MXZ-SM60NAM2, MSH09CW, MSH09DW-U1, MSH09EW, MSH09NW, MSH09NW2, MSH09TW, MSHM09CN, MSZ-A09NA, MSZ-GE09NA, MSZ-GL09NA, MSZ-GS09NA, MSZ09UN, MSH17NN, MSH17NN2, MSH17TN, MSZ-A17NA, MSZ-GE18NA
Which models does the replace?
MSZ-GL18NA, MSZ-GS18NA, MSZ-D36NA, MSZ-GS36NA, MSZ-GS36NA2, PAC-AKA31BC, PAC-MKA30BC, PAC-MKA31BC, PAC-MKA32BC, PAC-MKA33BC
What warranty comes with the MXZ-SM60NL-MSZ-GX09NL-MSZ-GX18NL-MSZ-GX36NL-PAC-LMA30BC?
7 Years Compressor & 5 Years Parts | Registration Required within 90 Days of Purchase
Who makes the MXZ-SM60NL-MSZ-GX09NL-MSZ-GX18NL-MSZ-GX36NL-PAC-LMA30BC?
The MXZ-SM60NL-MSZ-GX09NL-MSZ-GX18NL-MSZ-GX36NL-PAC-LMA30BC is made by Mitsubishi Electric.
