Description

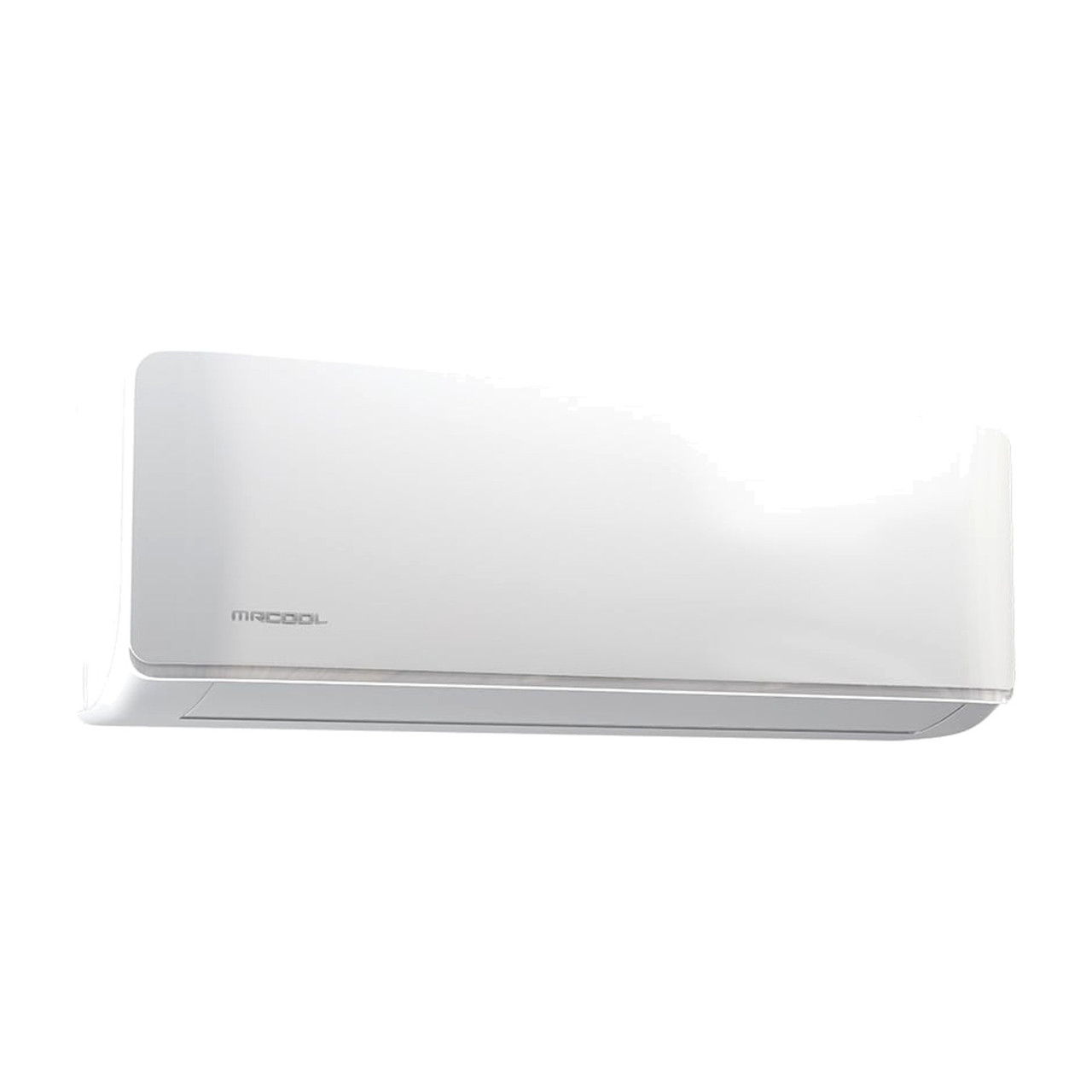

The MRCOOL Advantage 5th Gen A-09-HP-WMAH-115D-O is a 9,000 BTU (1-ton) wall mounted indoor unit (air handler) for MRCOOL Advantage 5th Gen single-zone ductless systems using R-454B refrigerant.
The 5th Generation MRCOOL® 9k BTU 115V Advantage Air Handler now comes equipped with R454B refrigerant, the latest eco-friendly solution offering enhanced energy efficiency, reduced greenhouse gas emissions, and a lower Global Warming Potential (GWP).Designed for quiet operation, this Advantage mini-split unit delivers reliable heating and cooling for your home without the need for ductwork, ensuring an efficient and cost-effective solution for any space.
Ideal for homeowners seeking an affordable yet powerful climate control system, the sleek Advantage air handler will give you the comfort you need all year long.With built-in Wi-Fi, you can conveniently control the unit via remote access, allowing it to automatically adjust the temperature overnight for optimal comfort and energy savings.Register your unit online and enjoy peace of mind with MRCOOL®’s robust warranty: 1 year parts warranty, 2 year compressor warranty, and 1 year remote control warranty.
For further peace of mind, enroll in the MRCOOL® Care Program. Say goodbye to comfort concerns with the MRCOOL® Advantage Air Handler.
Key Features
- Variable fan speeds: 5 fan speeds for quiet operation.
- Quiet: As low as 18 dBA.
- Remote control: Wireless remote included.
Product Specifications
| Unit Dimensions (W x D x H) | 28.43" x 7.36" x 11.42" |
|---|---|
| Unit Weight | 17.42 lb |
| Max Coverage Area | Up to 400 sq ft |
| Brand | MRCOOL |
| Model | A-09-HP-WMAH-115D-O |
| Series | Advantage 5th Gen |
| Tonnage | 0.75 |
| Voltage | 115V |
| Phase | 1 |
| Cycle | 60Hz |
| Max Fuse Breaker | 15A |
| Min Circuit Ampacity | 3A |
| Mount Type | Wall |
| Color | White |
| Decibel Rating | 33.5 dBA |
| Decibel Rating (Low) | 18 dBA |
| Decibel Rating (High) | 43 dBA |
| Number Of Speeds | 5 |
| Max Line Set Length | 82 ft |
| Liquid Line Size | 1/4 in |
| Suction Line Size | 3/8 in |
| Filter Type | Reusable |
| Overload Protection | Yes |
| Remote Control Included | Yes |
| UL Listed | Yes |
| Csa Listed | Yes |
| ETL Listed | Yes |
| AHRI Certified | Yes |
| Base Parts Warranty | 1 Year |
| Base Compressor Warranty | 2 Years |
| Net Depth | 7.36 in |
| Net Height | 11.42 in |
| Net Width | 28.43 in |
| Net Weight | 17.42 lbs |
Compatibility & Installation
Matched with: : Yes Works with iOS: Yes Works with Android: Yes Remote Control Included: Yes UL Listed: Yes CSA Listed: Yes ETL Listed: Yes AHRI Certified: Yes Base Parts Warranty: 1 Year Base Compressor Warranty: 2 Years Has Batteries: Yes Contains Chemicals: Yes Contains Compressed Gas: Yes Proposi
- Line set: Flare connections — 1/4 in liquid × 3/8 in suction; maximum line length 82 ft. Line set not included.
- Electrical: 115V single-phase, 60 Hz.
- Professional installation: Requires installation by a licensed HVAC technician (evacuation and charge verification with gauges). R-454B is an A2L refrigerant — follow current codes.
