Description

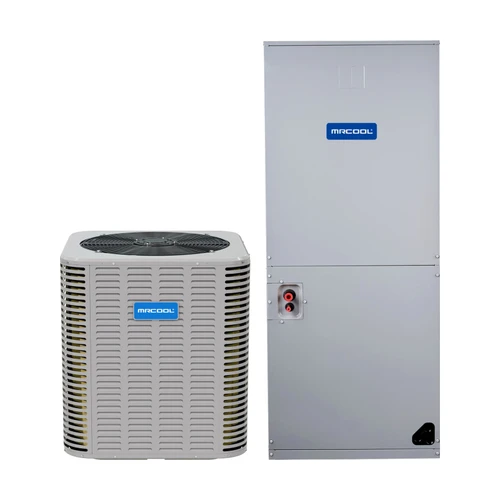

This MRCOOL Signature Series 1.5-ton air conditioner split system pairs the MCAESAS4T1821AA R-454B air conditioner condenser with the MCAEAMPSF18C21AA multi-position air handler (PSC blower). The combination is AHRI certified (AHRI #217513213) at 14.3 SEER2 and 11.7 EER2, delivering 17,000 BTU/h of rated cooling. It is a straightforward, efficient replacement for an older R-410A split system.
What's Included
- 1 × MCAESAS4T1821AA — Signature Series 1.5 Ton R-454B air conditioner condenser
- 1 × MCAEAMPSF18C21AA — Signature Series 1.5 Ton multi-position air handler, PSC motor
System Performance
| AHRI Reference Number | 217513213 |
|---|---|
| Cooling Capacity | 17,000 BTU/h |
| SEER2 | 14.3 |
| EER2 | 11.7 |
| Refrigerant | R-454B |
| Power Supply | 208/230V, 1-Phase, 60 Hz |
Component Specifications
Air Conditioner Condenser — MCAESAS4T1821AA
| Minimum Circuit Ampacity | 12.2 A |
|---|---|
| Maximum Fuse / Breaker | 20 A |
| Refrigerant Connections | 3/8" liquid, 3/4" suction |
| Sound Level | 60 dB(A) |
| Unit Dimensions (W x H x D) | 23.6" x 25" x 23.6" |
| Unit Weight | 132 lb |
| Cooling Capacity | 18k BTU |
| Efficiency Ratings | 14.3 SEER2 / 11.7 EER2 |
| Refrigerant | Pre-charged with R-454B |
| Compressor | Single-speed scroll |
| Tubing | High-efficiency inner-groove copper |
| Noise Level | 60 dB with sound-dampening top |
| Durability Features | Wire fan discharge grille, steel louver coil guard |
| Service Features | Sweat connection service valves, accessible gauge port |
| Design | Compact for flexible placement |

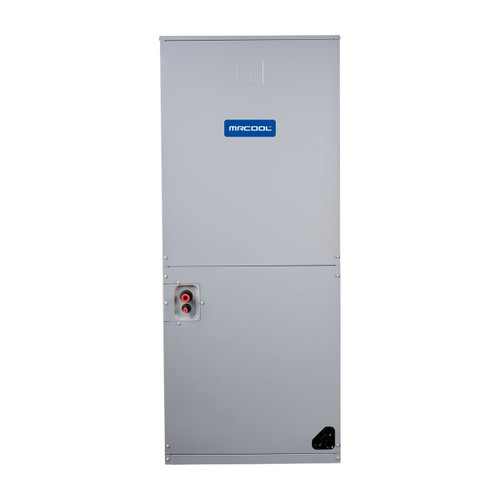

Multi-Position Air Handler — MCAEAMPSF18C21AA
| Blower Motor | PSC, 1/4 HP |
|---|---|
| Rated Airflow | 749 CFM |
| Minimum Circuit Ampacity | 2.1 A |
| Maximum Fuse / Breaker | 3 A |
| Unit Dimensions (W x H x D) | 19.6" x 45.75" x 22" |
| Unit Weight | 120 lb |
| Capacity | 18,000 BTU (1.5 ton) |
| Refrigerant | Compatible with R-454B (low-GWP) |
| Airflow Options | Upflow, downflow, horizontal configurations |
| Cabinet | Galvanized steel for durability and corrosion resistance |
| Coils | Copper “A” coil with aluminum fins for efficient heat transfer |
| Insulation | Internal thermal insulation reduces energy loss and condensation |
| Filter | Built-in air filter rack for easy replacement |
| Optional Accessory | Electric heat kit available |
| Smart Control | Works with most third-party thermostats |
Compatibility & Installation
- Electric heat: Add a Signature Series R-454B heat kit (5–15 kW) using the "Add an Electric Heat Strip" option above.
- Line set: Sweat connections, 3/8" liquid / 3/4" suction; line set not included.
- Thermostat: Standard 24V thermostat (not included).
- Professional installation: Licensed HVAC contractor required; R-454B is an A2L refrigerant.
