Description

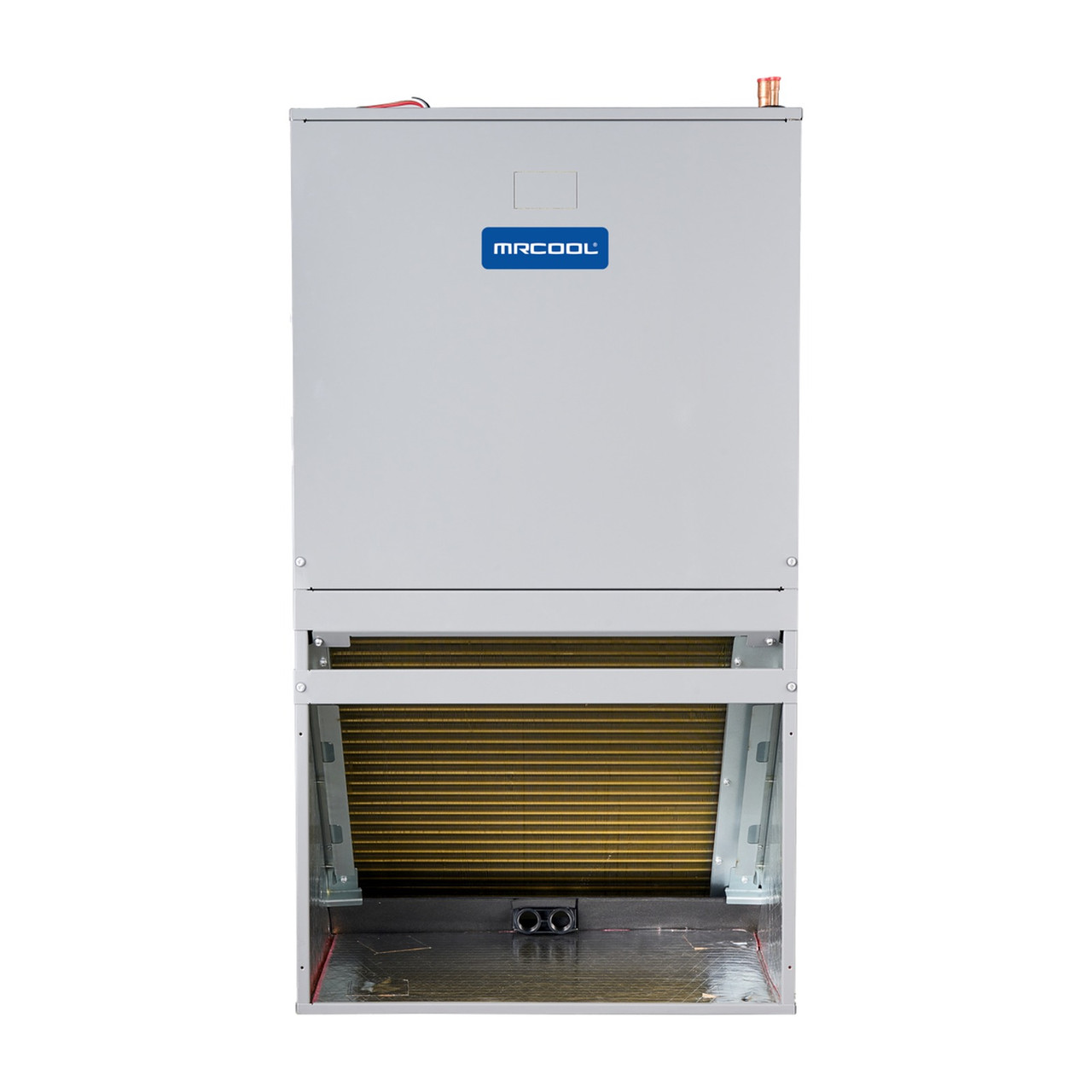

The MRCOOL Signature Series MCAEAWPEF24D21AA is a 2-ton stud-mount (wall-closet) air handler for R-454B split systems, matched with Signature Series heat pump and air conditioner condensers for AHRI-rated performance. Its slim cabinet fits between wall studs in closets and small mechanical spaces. An ECM blower motor moves air quietly, and an optional MRCOOL electric heat kit adds supplemental or emergency heat.
Transform your HVAC system with the MRCOOL® Signature Series 24K Stud Mount Air Handler—crafted for maximum flexibility, energy efficiency, and hassle-free installation.
Designed to fit cleanly between standard wall studs, this compact unit is perfect for tight spaces where conventional air handlers won’t fit, making it ideal for a wide range of applications.Despite its slim profile, the unit delivers dependable heating and cooling performance when paired with a compatible heat pump or condenser.
With both front and bottom return air options, it adapts easily to your layout and airflow requirements.Built to last, the 24K Stud Mount Air Handler features a durable galvanized steel cabinet and advanced blower technology for quiet, efficient operation. Full cabinet insulation minimizes energy loss and prevents condensation, while the high-efficiency ECM motor ensures steady airflow and lower utility bills.
Maintenance is simple with an integrated air filter rack for quick filter changes, and optional electric heat kits provide added warmth during colder months.Backed by a 10-year limited parts warranty, this unit delivers reliable performance and peace of mind. Whether renovating, upgrading, or building new, the MRCOOL® Signature Series 24K Stud Mount Air Handler offers compact comfort without compromise.
Key Features
- Installation: Fits between standard wall studs—ideal for space-restricted areas
- Airflow Configuration: Supports front or bottom return air
- Cabinet: Durable galvanized steel with full insulation to reduce energy loss and condensation
- Blower Motor: High-efficiency ECM motor for consistent airflow and energy savings
- Noise Level: Quiet operation
- Filter: Integrated air filter rack for fast, easy filter changes
- Optional Upgrades: Electric heat kits for supplemental heating in colder climates
Product Specifications
| Brand | MRCOOL |
|---|---|
| Model | MCAEAWPEF24D21AA |
| Series | Signature Series (R-454B) |
| Capacity | 24,000 BTU (24K) – pairs with compatible heat pumps or condensers |
| Installation | Fits between standard wall studs—ideal for space-restricted areas |
| Airflow Configuration | Supports front or bottom return air |
| Cabinet | Durable galvanized steel with full insulation to reduce energy loss and condensation |
| Blower Motor | High-efficiency ECM motor for consistent airflow and energy savings |
| Noise Level | Quiet operation |
| Filter | Integrated air filter rack for fast, easy filter changes |
| Optional Upgrades | Electric heat kits for supplemental heating in colder climates |
| Applications | Perfect for remodeling, new construction, or upgrades |
| Design | Compact, space-saving profile without sacrificing performance |
Compatibility & Installation
- Matched system: Pairs with Signature Series R-454B heat pump (MCAESHS4T) and air conditioner (MCAESAS4T) condensers of the same tonnage.
- Line set: Sweat (brazed) connections; line set not included.
- Professional installation: Must be installed by a licensed HVAC contractor; R-454B is an A2L refrigerant.
