Description

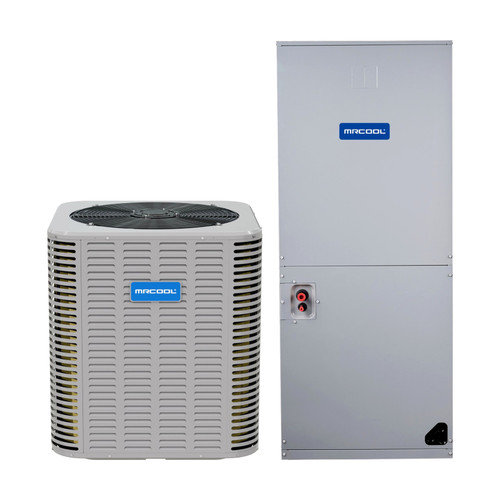

This MRCOOL Signature Series 4-ton air conditioner split system pairs the MCAESAS4T4821AA R-454B air conditioner condenser with the MCAEAMPEF48E21AA multi-position air handler (ECM blower). The combination is AHRI certified (AHRI #217513222) at 13.8 SEER2 and 11.2 EER2, delivering 45,000 BTU/h of rated cooling. It is a straightforward, efficient replacement for an older R-410A split system.
What's Included
- 1 × MCAESAS4T4821AA — Signature Series 4 Ton R-454B air conditioner condenser
- 1 × MCAEAMPEF48E21AA — Signature Series 4 Ton multi-position air handler, ECM motor
System Performance
| AHRI Reference Number | 217513222 |
|---|---|
| Cooling Capacity | 45,000 BTU/h |
| SEER2 | 13.8 |
| EER2 | 11.2 |
| Refrigerant | R-454B |
| Power Supply | 208/230V, 1-Phase, 60 Hz |
Component Specifications
Air Conditioner Condenser — MCAESAS4T4821AA
| Minimum Circuit Ampacity | 30 A |
|---|---|
| Maximum Fuse / Breaker | 50 A |
| Refrigerant Connections | 3/8" liquid, 7/8" suction |
| Sound Level | 65 dB(A) |
| Unit Dimensions (W x H x D) | 29.14" x 32.8" x 29.14" |
| Unit Weight | 204 lb |
| Cooling Capacity | 48k BTU |
| Efficiency Ratings | 13.8 SEER2 / 11.2 EER2 |
| Refrigerant | Pre-charged R-454B |
| Compressor | Scroll |
| Tubing | Inner-groove copper |
| Noise Level | 65 dB with sound-dampening top |
| Durability Features | Steel louver coil guard, wire fan discharge grille |
| Service Features | Sweat connection valves, convenient gauge port |
| Design | Compact for flexible placement |
Multi-Position Air Handler — MCAEAMPEF48E21AA
| Blower Motor | ECM, 3/4 HP |
|---|---|
| Rated Airflow | 1549 CFM |
| Minimum Circuit Ampacity | 7.2 A |
| Maximum Fuse / Breaker | 10 A |
| Unit Dimensions (W x H x D) | 22" x 53.12" x 24.5" |
| Unit Weight | 163 lb |
| Capacity | 48k (≈4 ton) |
| Refrigerant | R-454B (eco-friendly, modern standard) |
| Configuration | Multi-position (upflow, downflow, horizontal) |
| Design | Compact and streamlined for easy installation in tight spaces |
| Cabinet | Durable galvanized steel exterior |
| Blower Motor | High-efficiency ECM |
| Coil | Copper “A” coils with aluminum fins for effective heat transfer |
| Insulation | Internal thermal insulation reduces condensation, energy loss & noise |
| Filter | Built-in air filter rack for quick maintenance |
| Heat Option | Compatible with optional electric heat kit for colder climates |
| Thermostat Compatibility | Works with most third-party smart thermostats |
Compatibility & Installation
- Electric heat: Add a Signature Series R-454B heat kit (5–15 kW) using the "Add an Electric Heat Strip" option above.
- Line set: Sweat connections, 3/8" liquid / 7/8" suction; line set not included.
- Thermostat: Standard 24V thermostat (not included).
- Professional installation: Licensed HVAC contractor required; R-454B is an A2L refrigerant.
