Description

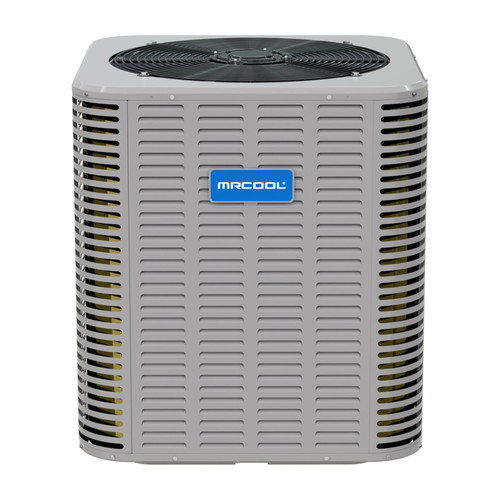

The MRCOOL Signature Series MCAESAS4T6021AA is a 5-ton (60,000 BTU) air conditioner condenser factory charged with low-GWP R-454B refrigerant and AHRI rated up to 13.8 SEER2 / 11.2 EER2 with the matching Signature Series air handler. A single-speed scroll compressor, inner-groove copper tubing and a sound-dampening top make it a dependable, quiet replacement for older R-410A equipment.
The MRCOOL® Signature Series 60k Cooling Only Condenser is a high-efficiency system designed to deliver reliable, long-lasting comfort. With a 13.8 SEER2 and 11.2 EER2 rating, this unit offers strong cooling performance while helping reduce energy usage.This unit comes pre-charged with R-454B refrigerant, a modern, low-GWP solution that aligns with current environmental standards while maintaining excellent cooling performance.
This eco-conscious refrigerant helps reduce the system’s environmental footprint without sacrificing power or efficiency.At the heart of the system lies a durable scroll compressor, specifically engineered to provide consistent, reliable performance under a variety of operating conditions.
Meanwhile, the use of inner-groove copper tubing increases surface area and enhances heat transfer for improved energy efficiency and faster temperature regulation.Despite its strong output, the unit maintains a quiet operational level of just 65 decibels, comparable to the hum of a standard dishwasher.
A sound-dampening top is integrated into the design to further reduce noise, making the system ideal for homes in noise-sensitive areas.To protect internal components from debris, weather, and potential impacts, the unit is equipped with a steel louver coil guard and a wire fan discharge grille, adding to its overall durability.The MRCOOL® Signature Series 60k Cooling Only Condenser delivers reliable cooling, long-term durability, and quiet operation in a compact, installer-friendly design.
Key Features
- Scroll compressor: Dependable single-speed scroll compressor.
- R-454B refrigerant: Factory pre-charged A2L refrigerant for the current efficiency standards.
- Built-in protection: Temperature and pressure sensors guard the compressor.
- Quiet operation: About 63 dB with a sound-dampening top.
- Durable cabinet: Steel louvered coil guard and wire fan grille.
- Service-friendly: Sweat-connection service valves and an accessible gauge port.
Product Specifications
| Minimum Circuit Ampacity | 37 A |
|---|---|
| Maximum Fuse / Breaker | 60 A |
| Refrigerant Connections | 3/8" liquid, 7/8" suction (sweat) |
| Sound Level | 65 dB(A) |
| Unit Dimensions (W x H x D) | 29.14" x 32.8" x 29.14" |
| Unit Weight | 206 lb |
| Brand | MRCOOL |
| Model | MCAESAS4T6021AA |
| Series | Signature Series (R-454B) |
| Capacity | 60,000 BTU (5 ton) cooling only |
| Efficiency Ratings | 13.8 SEER2 / 11.2 EER2 |
| Refrigerant | Pre-charged with R-454B (low-GWP) |
| Compressor | Durable scroll compressor for reliable performance |
| Coil Design | Inner-groove copper tubing for enhanced heat transfer |
| Sound Level | 65 dB, with sound-dampening top for quieter operation |
| Protective Features | Steel louver coil guard and wire fan discharge grille |
| Design | Compact, installer-friendly construction |
Compatibility & Installation
- Matched system: Pairs with the Signature Series R-454B multi-position air handler (MCAEAMP) of the same tonnage.
- Line set: Sweat (brazed) connections; line set not included.
- Professional installation: Must be installed by a licensed HVAC contractor; R-454B is an A2L refrigerant.
