Description

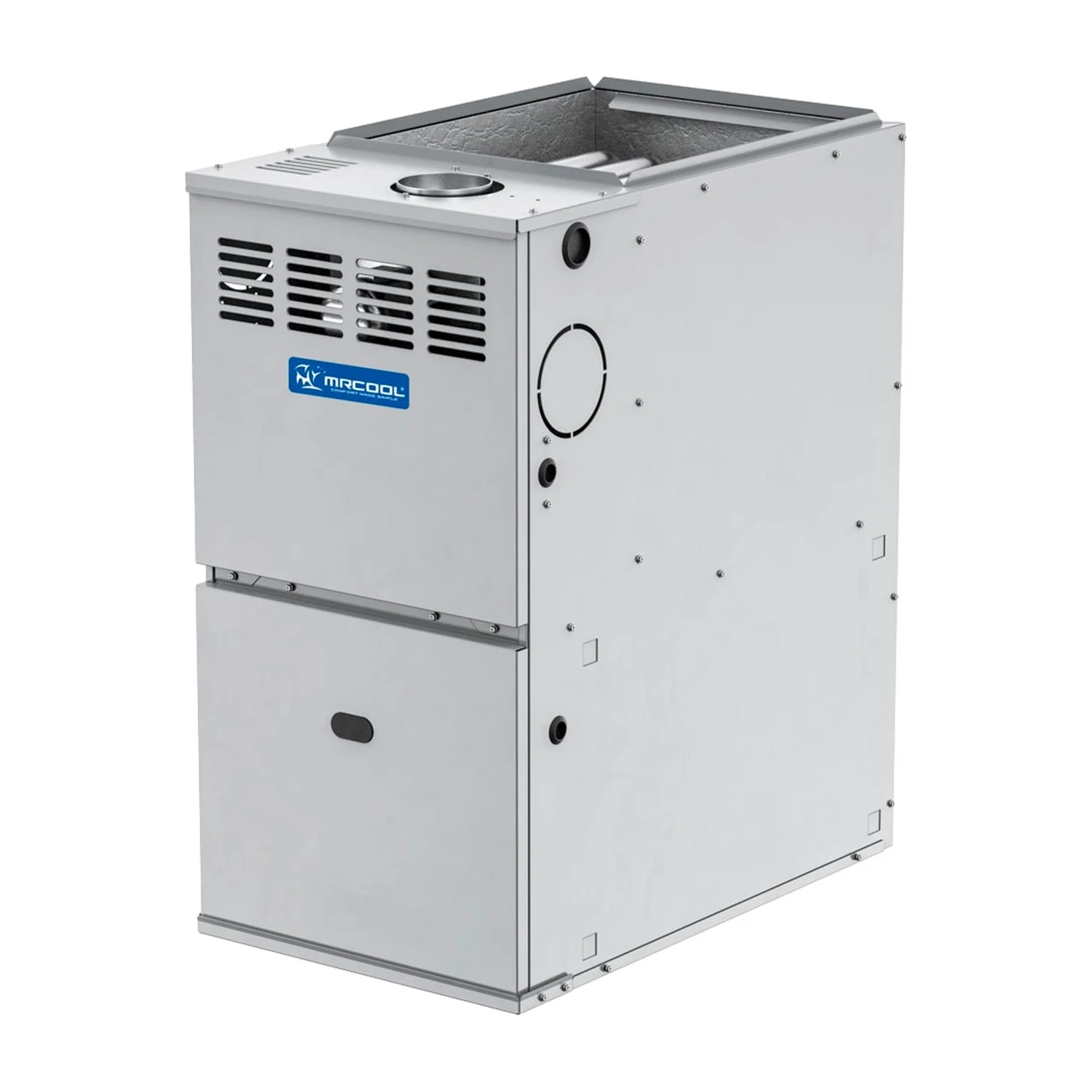

The MRCOOL VersaPro MGA80SE080C4C is a 80,000 BTU input, 80% AFUE single-stage natural gas furnace in a 21" multi-position cabinet (upflow, downflow, horizontal) with a DC blower motor. It is built to pair with MRCOOL R-454B cased coils and condensers (A2L ready).
Presenting the MRCOOL® VersaPro® 80K BTU 80% AFUE Gas Furnace, engineered to provide consistent warmth and comfort throughout the winter months. With an 80% AFUE rating, this high-efficiency furnace transforms the majority of the fuel it uses into heat, offering an affordable and dependable heating solution while helping to lower energy bills.
Designed for both performance and longevity, the VersaPro® features a robust ECM blower motor that boosts airflow efficiency, enables smooth speed adjustments, and aids in reducing energy costs. Its compact design allows for versatile installation, making it an excellent option for homes with space constraints. Whether you need upflow, downflow, or horizontal installation, this furnace adapts to multiple configurations.
It also includes convenient left or right gas and electric service connections, and with the optional LP conversion kit, switching from natural gas to propane is simple. Compatible with most 24V thermostats, this furnace ensures easy operation and precise temperature control. For added reassurance.
Find the Brochure HERE
Product Specifications
| Brand | MRCOOL |
|---|---|
| Model | MGA80SE080C4C |
| Side Return | 16x25x1 |
| Bottom Return | varies on furnace casing width 14x25, 16x25, 20x25, 24x25 |
| AFUE | 80 |
| CFM | 1300 |
| Fuel Type | Natural/Propane Gas |
| Voltage (V) | 115 |
| Stage | Single |
| Max Fuse Breaker (A) | 15 |
| Min Circuit Ampacity (A) | 8 |
| Full Load | 8A |
| Number Of Speeds | 5 |
| Number Of Burners | 5 |
| Gas Connection Size | 3/4 in |
| Blower Motor Type | ECM |
| Blower Motor HP | 1/2 |
| Blower Motor Speeds | 5 |
| Blower Motor RPM | 1050 |
| Heat Exchanger Type | Aluminized Tubular Steel |
| Ignition Type | Hot Surface |
| LP Kit Included | Yes |
| LP Kit Available | Yes |
| UL Listed | Yes |
| ETL Listed | Yes |
| Net Dimensions (D X H X W In) | 28.5 x 33.75 x 21 |
| Net Weight (lb) | 135 |
