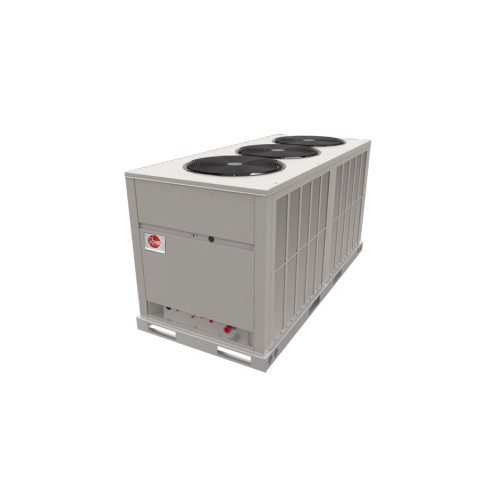

Rheem 12.5 Ton Commercial Air Conditioner Condenser (RACY2150DAZ)
The Rheem RACY2150DAZ is a Commercial Classic Series RACY split-system condensing unit for light commercial buildings with 460 volt 3-phase service. It pairs with the Rheem RHCYA2150DAS belt-drive commercial air handler, which is the AHRI-rated indoor match for this size. It is the outdoor half of a split system: the condenser sits on a pad or roof, and refrigerant lines run to the air handler inside.
Performance
- Nominal capacity: 12.5 ton (142,500 BTU/h net cooling per the Rheem spec sheet)
- Efficiency: 11.0 EER, 14.2 IEER when matched with the RHCYA2150DAS air handler
- Compressor: 2 scroll compressors, tandem (2-stage)
- Staging: Two stages of cooling for part-load operation
- Refrigerant: R-454B (A2L)
- Sound rating: 88 dB (AHRI 270)
Electrical
- Power supply: 460V 3-Phase, 60 Hz
- Minimum circuit ampacity: 26 A
- Overcurrent protection: 30 A minimum / 30 A maximum
- Compressor: RLA 18.4 A, LRA 149.2 A
Cabinet
- Dimensions: 44 in H x 74.25 in L x 40 in W
- Operating weight: 647 lb
- Shipping weight: 667 lb
Line set sizing for R-454B depends on run length and lift; follow the Rheem RACY installation instructions. Metering is handled by the TXV in the matched air handler.
Warranty
Rheem limited warranty for commercial applications: 5-year compressor and 1-year parts. Full terms are in the Rheem warranty document for this series.
