Rheem 6.5 Ton 11.2 EER Commercial Air Conditioner Split System, 208/230V 3-Phase, with Belt Drive VFD Commercial Air Handler, R454B | RACY2078CAZ RHCYA2090CAS

Rheem

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
RACY2078CAZ-RHCYA2090CAS
Your Price $0.00
Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Learn more about incentives
Rheem 6.5 Ton 11.2 EER Commercial Air Conditioner Split System, 208/230V 3-Phase, with Belt Drive VFD Commercial Air Handler, R454B | RACY2078CAZ RHCYA2090CAS
Condition:
New
Width:
54.50 (in)
Height:
57.90 (in)
Depth:
27.90 (in)

Questions about Rheem 6.5 Ton 11.2 EER Commercial Air Conditioner Split System, 208/230V 3-Phase, with Belt Drive VFD Commercial Air Handler, R454B | RACY2078CAZ RHCYA2090CAS?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business
View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$20,306.96
  • Qualifies for FREE Shipping
0 in stock • Ships in 1-2 Business Days
Overview

Rheem 6.5 Ton 11.2 EER Commercial Air Conditioner Split System, 208/230V 3-Phase, with Belt Drive VFD Commercial Air Handler, R454B | RACY2078CAZ RHCYA2090CAS

Rheem 6.5 Ton 11.2 EER Commercial Air Conditioner Split System, 208/230V 3-Phase, with Belt Drive VFD Commercial Air Handler, R454B | RACY2078CAZ RHCYA2090CAS
Product details

Description

Rheem 6.5 Ton Commercial Air Conditioner Split System (RACY2078CAZ + RHCYA2090CAS)

This AHRI-certified Rheem split system pairs the RACY2078CAZ Commercial Classic Series RACY condensing unit with the RHCYA2090CAS belt-drive commercial air handler. Both run on 208/230 volt 3-phase power. It is a 6.5 ton cooling system for offices, retail, restaurants, schools and light industrial space where the air handler sits in a mechanical room, mezzanine or above-ceiling platform and the condenser sits on a pad or roof.

The system is cooling only. Electric heat can be added inside the air handler with a Rheem RXHE heater kit offered on this listing.

System performance

  • AHRI reference number: 214437930
  • Rated cooling capacity: 78,000 BTU/h (AHRI 340/360)
  • Efficiency: 11.2 EER, 14.8 IEER
  • Staging: Two stages of cooling for part-load operation
  • Refrigerant: R-454B (A2L)

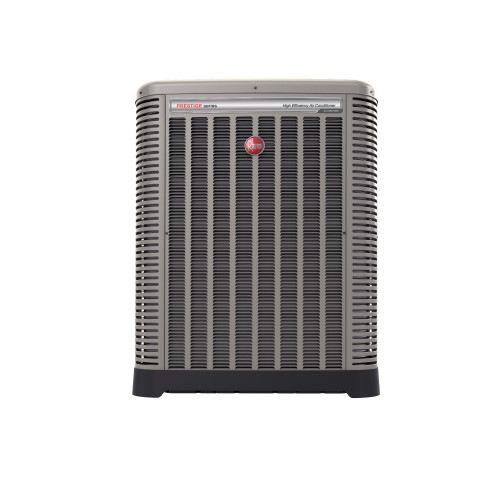

Condenser: RACY2078CAZ

  • Compressor: 1 scroll, 2-stage
  • Power supply: 208/230V 3-Phase, 60 Hz
  • Minimum circuit ampacity: 39 A
  • Maximum overcurrent protection: 60 A
  • Compressor amps: RLA 26.3 A, LRA 178.5 A
  • Sound rating: 86 dB (AHRI 270)
  • Dimensions: 35.75 in W x 35.75 in D x 51.0 in H
  • Operating / shipping weight: 383 lb / 403 lb

Air handler: RHCYA2090CAS

  • Blower: Belt Drive with VFD, 2 HP, adjustable belt drive, medium static
  • Airflow: 2400-4000 CFM
  • Coil: 4 rows / 15 FPI / 10.2 sq ft
  • Metering: TXV, field adjustable, non-bleed
  • Configuration: Field convertible, vertical upflow or horizontal sideflow
  • Power supply: 208/230V 3-Phase, 60 Hz
  • Minimum circuit ampacity: 8 A (blower only)
  • Refrigerant connections: 1/2 in liquid / 1-1/8 in vapor
  • Filters: 1 x 16x25 or 2 x 16x25 in (filter rack accessory)
  • Dimensions: 54.5 in W x 27.86 in H x 57.85 in L
  • Operating / shipping weight: 409 lb / 429 lb

Electric heat options

Rheem RXHE auxiliary heater kits approved for the RHCYA2090CAS: RXHE-DE020CA (15.6 kW at 208V / 20.2 kW at 240V), RXHE-DE030CA (22.0 kW at 208V / 29.6 kW at 240V). Choose one in the "Add an Electric Heat Strip" option; the kit is sold separately and is not included in the system price. Air handler circuit sizing changes with the heater installed.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
54.50 (in)
Height:
57.90 (in)
Depth:
27.90 (in)
Weight:
832.00 LBS
AHRI Certified:
Yes
AHRI Reference Number:
214437930
Refrigerant Type:
R-454B
Capacity (Tons):
6.5
Cooling Capacity (BTU):
78,000
EER:
11 EER
IEER:
14 IEER
Product Category:
Air Conditioner Split System
Product Line:
RACY / RHCYA
Outdoor Unit Model:
RACY2078CAZ
Air Handler Model:
RHCYA2090CAS
Voltage / Phase:
208/230V 3-Phase
Electrical Phase:
3-Phase
Compatible Electric Heat Kits:
RXHE-DE020CA (15.6 kW at 208V / 20.2 kW at 240V), RXHE-DE030CA (22.0 kW at 208V / 29.6 kW at 240V)
Electric Heat Options (kW):
20, 30
Outdoor Unit RACY2078CAZ - UPC:
662021686313
Outdoor Unit RHCYA2090CAS - UPC:
662021686726
Condenser RACY2078CAZ - Nominal Capacity (Tons):
6.5
Condenser RACY2078CAZ - Refrigerant:
R-454B
Condenser RACY2078CAZ - Voltage/Phase/Hz:
208/230V 3-Phase / 60 Hz
Condenser RACY2078CAZ - Minimum Circuit Ampacity (MCA):
39 A
Condenser RACY2078CAZ - Maximum Overcurrent Protection (MOP):
60 A
Condenser RACY2078CAZ - Compressor Type:
Scroll
Condenser RACY2078CAZ - Sound Level (dB):
86
Condenser RACY2078CAZ - Unit Dimensions:
35.75 in W x 35.75 in D x 51.0 in H
Condenser RACY2078CAZ - Shipping Weight:
403 lb
Air Handler RHCYA2090CAS - Nominal Capacity (Tons):
7.5
Air Handler RHCYA2090CAS - Airflow (CFM):
2400-4000
Air Handler RHCYA2090CAS - Blower Motor Type:
Belt Drive with VFD, 2 HP
Air Handler RHCYA2090CAS - Configuration:
Convertible (Vertical Upflow / Horizontal)
Air Handler RHCYA2090CAS - Metering Device:
TXV
Air Handler RHCYA2090CAS - Voltage/Phase/Hz:
208/230V 3-Phase / 60 Hz
Air Handler RHCYA2090CAS - Minimum Circuit Ampacity (MCA):
8 A (blower only)
Air Handler RHCYA2090CAS - Liquid Line Size:
1/2 in
Air Handler RHCYA2090CAS - Suction Line Size:
1-1/8 in
Air Handler RHCYA2090CAS - Unit Dimensions:
54.5 in W x 27.86 in H x 57.85 in L
Air Handler RHCYA2090CAS - Shipping Weight:
429 lb
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Information:
5 Years Compressor & 1 Year Parts
Electrical Frequency:
60 Hz
DOE Regional Compliance:
Nationwide
Air Handler RHCYA2090CAS - UPC:
662021686726
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Videos1 videos
Rheem Commercial: Extremely Tested. Extremely Tough.
Frequently asked questions
Is the AHRI certified?
Yes. The AHRI reference number is 214437930.
What refrigerant does the use?
It uses R-454B refrigerant.
What size is the ?
The is a 6.5 ton unit.
How much cooling does the provide?
It is rated for 78,000 BTU of cooling.
What power supply does the need?
It requires 208/230V 3-Phase power.
What warranty comes with the RACY2078CAZ-RHCYA2090CAS?
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Who makes the RACY2078CAZ-RHCYA2090CAS?
The RACY2078CAZ-RHCYA2090CAS is made by Rheem.
