Description
Overview

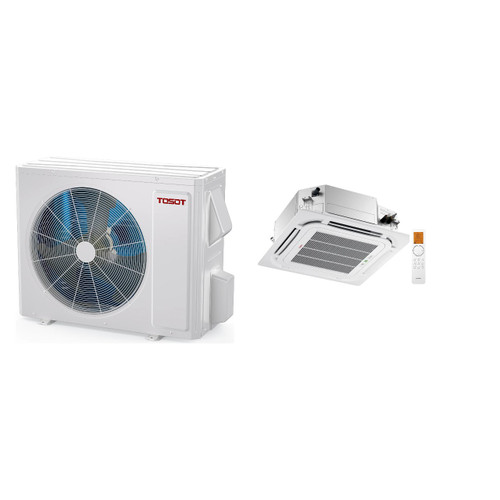

The Tosot Aoraki 12,000 BTU ceiling cassette mini split is a complete single-zone heat pump system: indoor unit, inverter outdoor unit, remote and installation package. It uses a high-efficiency inverter compressor, runs on 208/230V single-phase power and uses R32 refrigerant.
Ceiling cassettes sit flush in a drop ceiling and spread air in several directions, which suits open offices, retail space, restaurants and large living areas.
Key Features
- Commercial-grade airflow: High-CFM indoor sections for large rooms, open plans, shops and offices.
- DC inverter compressor: Smooth, efficient capacity control with R32 refrigerant.
- Wi-Fi control: TOSOT+ app control and scheduling.
- Built-in safety: Refrigerant leak detection and condensate overflow protection where equipped.
- Wide operating range: Reliable cooling and heating across extreme outdoor temperatures.
- Up to 23 SEER2 & 9 HSPF2 with R32 Refrigerant
- ENERGY STAR Certified with tax rebate eligibility
- 8-way airflow with 7-speed fan control for customized comfort
- Built-in condensate pump with 47.2" lift
- Operates in Extreme Temperatures from -40°F to 140°F
Performance & Efficiency
Capacity is matched to the room size listed below. The inverter compressor ramps up quickly to reach the setpoint, then slows down to hold it, which avoids the on/off cycling of single-speed equipment and cuts power use.
Comfort & Control
Every indoor unit includes a wireless remote, and the TOSOT+ app adds Wi-Fi control, scheduling and voice control through Alexa or Google Home. Sleep, quiet and turbo modes, auto restart after a power outage and a dehumidification (dry) mode are built in.
Specifications
System Performance
| Cooling Capacity | 12,000 Btu/h |
|---|---|
| Heating Capacity | 12,000 Btu/h |
| EER | 13.0 Btu/h/W |
| COP | 13.0 Btu/h/W |
| SEER2 | 23 |
| HSPF2 | 9.0 |
| Voltage | 208/230V, 60Hz, 1Ph |
| Dehumidification | 2.96 Pts/hr |
| Rated Power of Cooling | 923 W |
| Rated Power of Heating | 923 W |
| Rated Current of Cooling | 4.46A |
| Rated Current of Heating | 4.46 A |
| Rated Power Max. | 1,550 W |
| Rated Current | 7.49 A |
| Min. Current (MCA) | 10 A |
| Max. Over Current Protection | 15 A |
| Temperature Setting Range | 60–86°F |
| Lowest Noise Level | 28 dB(A) |
| Energy Star & UL Certified | Yes |
| Built-in Pump | Yes |
| Refrigerant | R32 |
Indoor Unit (Ceiling Cassette)
| Approximate Shipping Weight | 48.5 lbs |
|---|---|
| Approximate Net Weight | 37.5 lbs |
| Shipping Dimensions (W × H × D) | 27.36x25.59x11.03 in |
| Unit Dimensions (W × H × D) | 22.44x22.44x10.44 in |
Outdoor Unit
| Approximate Net Weight | 67.3 lbs |
|---|---|
| Approximate Shipping Weight | 72.8 lbs |
| Shipping Dimensions (W × H × D) | 33.9x15.4x23.2 in |
| Unit Dimensions (W × H × D) | 31.58x21.84x13.78 in |
Line Set & Piping
| Copper Line Set Length | 16 ft |
|---|---|
| Max. Line Set Length | 65.6 ft |
| Copper Line Set Size | 1/4" & 1/2" |
| Max. Height Difference | 40 ft |
What's Included
- Indoor unit
- Outdoor unit
- Wireless remote controller
- 16 ft pre-flared copper line set, signal cable and power cord
Installation
Professional installation by a licensed HVAC technician is recommended to protect performance and warranty coverage. Plan the indoor unit location, line set route, condensate drain and a dedicated electrical circuit before ordering.
Frequently Asked Questions
Is this a heat pump?
Yes. It provides both cooling and heating.
What warranty does it carry?
Tosot covers the system for 5 years.
Can I control it from my phone?
Yes. The TOSOT+ app provides Wi-Fi control, schedules and voice control with Alexa and Google Home.
