Description

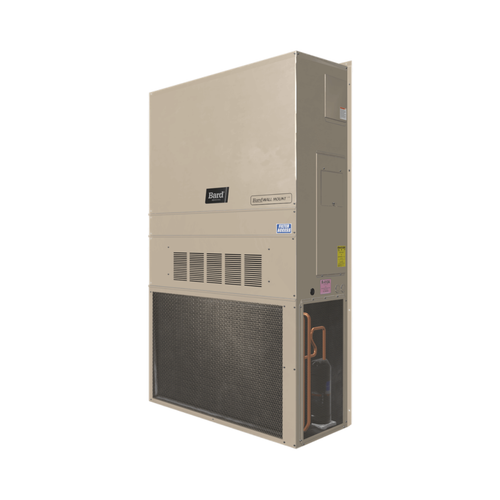

The Bard W18HF-A00 is a WH Series wall-mount, single-stage heat pump built to deliver both cooling and heating from a single, exterior-mounted packaged system. It’s designed for commercial-duty spaces where interior floor space is limited and a repeatable wall-mount footprint makes planning and replacement easier. Typical applications include modular buildings, classrooms, portable buildings, telecom and equipment rooms, light commercial spaces, and industrial support areas that need dependable comfort without complex split-system pairing.
For cooling performance, the WH Series rating table lists W18HF at 18,000 BTUH with 11.3 EER. For heating, W18HF is listed at 16,000 BTUH with 3.3 COP. That combination makes the W18HF-A00 a straightforward option when you want a packaged wall-mount heat pump that can handle year-round operation in mild-to-moderate heating climates, with supplemental electric heat available as an option when the job requires it.
On controls and protection, WH Series units include high and low pressure switches, a compressor control module, and a refrigerant leak detector (RDS) as standard equipment. This matters for real-world serviceability and uptime because the unit is built to protect itself and support faster troubleshooting. The “A00” configuration uses 230/208V single-phase power with lug connections, making it easy to align with common commercial electrical service planning.
Key Features
-
Bard W18HF-A00 wall-mount heat pump: Packaged cooling and heating in one exterior-mounted system
-
Certified cooling performance: 18,000 BTUH; 11.3 EER
-
Certified heating performance: 16,000 BTUH; 3.3 COP
-
Electrical (A00 configuration): 230/208V, 1 phase; MCA 15; MOCP 20; lug connections
-
Standard protection controls: High/low pressure switches and compressor control module
-
Standard refrigerant leak safety: RDS refrigerant leak detector included
-
Electric heat ready (optional): Heater packages available depending on job requirements
