Description

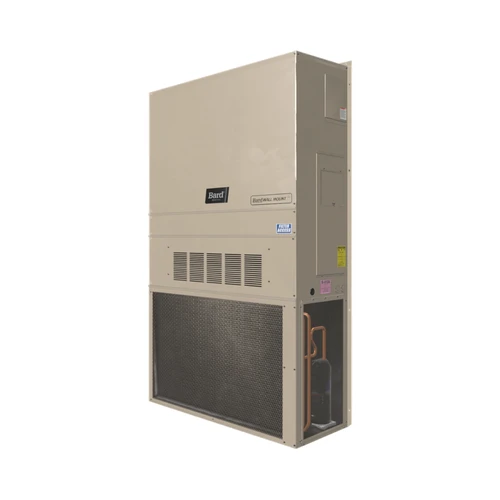

The Bard W60AF-A00 is a WA Series wall-mount, single-stage packaged air conditioner built for high-load commercial cooling applications where the exterior wall-mount format keeps the mechanical footprint controlled and service access straightforward. It’s commonly specified for larger modular deployments, institutional buildings, telecom and equipment shelters, industrial support spaces, energy storage sites, and data center support environments where cooling demand is high and the building layout benefits from an exterior-mounted packaged system.
W60AF-A00 is supported by certified performance ratings for clear specification. Capacity is certified to ANSI/ARI 390-2021, and the W60AF model is rated at 57,000 BTUH cooling capacity with 11.4 EER (ratings based on no outside air introduction). These certified values help buyers and pros align the correct model to the load without guessing.
The WA Series is built around durable, serviceable commercial features: multi-speed ECM indoor motor technology for airflow control, an enclosed outdoor fan motor with ball-bearing construction, and copper/aluminum finned coils. The refrigerant platform is R-454B (A2L) with a filter drier included for protection, and green fin evaporator coil protection is included to support long-term performance.
If the job requires ventilation, filtration upgrades, or supplemental electric heat, W60AF-A00 can be configured with available options such as economizers/ERVs, filtration up to MERV13, IAQ accessories (UVC-LED/NPBI), cabinet finishes/coatings, and optional electric heat from 2 kW up to 15 kW depending on the configuration.
Key Features
-
Model: Bard W60AF-A00 (WA Series wall-mount packaged air conditioner): Single-stage cooling for high-load wall-mount applications
-
Certified cooling capacity: 57,000 BTUH (ANSI/ARI 390-2021; ratings based on no outside air introduction)
-
Certified efficiency: 11.4 EER (ANSI/ARI 390-2021; ratings based on no outside air introduction)
-
Refrigerant platform: R-454B (A2L) with filter drier included
-
Airflow control: Multi-speed ECM indoor motor technology
-
Durability: Enclosed outdoor fan motor with ball bearings; copper/aluminum finned coils
-
Coil protection: Green fin evaporator coil protection
-
Controls and protection: Short cycle protection, phase monitoring, high/low pressure switch, and RDS included
-
Upgrade paths: Economizers/ERVs, optional electric heat (2–15 kW), filtration up to MERV13, IAQ accessories (UVC-LED/NPBI)
