Description
Product Summary

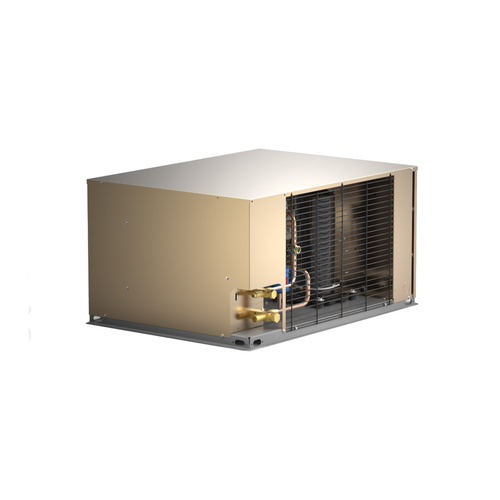

The Bohn BCH0008MCACYA0200 is a 3/4 HP medium temp outdoor air-cooled condensing unit from the Bohn BCH 0.5-6 HP Horizontal Air Discharge series, with a Copeland scroll compressor (YB07KA-TF5) and 208/230V 3-Phase power. It is built for walk-in coolers and refrigerated storage in restaurants, convenience stores, grocery and food service.
Heatcraft rates it at 8,260 BTU/h with R-455A (95°F Ambient / +25°F SST). It is an A2L-ready unit for R-454A, R-454C and R-455A and ships with option package A0200 (factory defrost timer for electric-defrost systems (Timer-Elec)).
Standard equipment includes a microchannel condenser coil, receiver with fusible plug, sealed liquid line drier and sight glass, liquid and suction service valves, crankcase heater, fixed high and adjustable low pressure controls and a head pressure control valve.
Key Features
- Scroll compressor: Efficient, reliable compression for commercial refrigeration duty.
- Microchannel condenser coil: Compact coil with reduced refrigerant charge.
- Horizontal air discharge: Outdoor horizontal-discharge cabinet for roof or slab mounting.
- Complete factory package: Receiver, drier, sight glass, service valves and crankcase heater are standard.
- Pressure controls: Fixed high pressure and adjustable low pressure controls protect the compressor.
- Factory option package: Factory defrost timer for electric-defrost systems (Timer-Elec).
- A2L ready: Approved for lower-GWP R-454A, R-454C and R-455A.
Specifications
| Brand | Bohn |
|---|---|
| Model | BCH0008MCACYA0200 |
| Series | BCH 0.5-6 HP Horizontal Air Discharge |
| Horsepower | 3/4 HP |
| Temperature Application | Medium Temp |
| Compressor | Scroll, YB07KA-TF5 |
| Capacity, R-455A (95°F Ambient / +25°F SST) | 8,260 BTU/h |
| Condenser | Air-cooled, microchannel coil |
| Voltage | 208-230/3/60 |
| MCA | 15 A |
| MOP | 15 A |
| Sound Level | 61 dBA |
| Factory Option Package | A0200 (factory defrost timer for electric-defrost systems (Timer-Elec)) |
| Estimated Net Weight | 168 lb |
| Cabinet Dimensions (H x D x W) | 19.75 x 28.25 x 24.625 in |
Ideal Applications
- Walk-in coolers
- Restaurants and commercial kitchens
- Convenience stores and grocery
- Schools, hospitals and institutional food service
- Light commercial rooftops and slab installations
Frequently Asked Questions
What refrigerant does the BCH0008MCACYA0200 use?
Heatcraft lists it for R-455A. Use the refrigerant your evaporator and expansion valve are selected for.
What are the electrical requirements of the BCH0008MCACYA0200?
It runs on 208/230V 3-Phase with an MCA of 15 A and MOP of 15 A.
What evaporator matches this condensing unit?
Pair it with a Bohn air or electric defrost unit cooler such as the BEL low profile series, sized to the unit capacity at your design suction temperature.
Is it preconfigured?
Yes. It includes a factory defrost timer for electric-defrost systems (Timer-Elec).
Can it be installed outdoors?
Yes. The BCH is an outdoor horizontal air discharge unit with a crankcase heater as standard.
