Brand:
Comfortstar
Width:
29.75
(in)
Height:
24.50
(in)
Depth:
29.63
(in)
Weight:
161.00 LBS
Cooling BTU | British Thermal Unit:
33600
AHRI Certified:
Yes
Air Conditioner Condenser Series:
BAR7
Compressor Stages:
Single Stage
Compressor Type:
Scroll
Designed for:
R454B Refrigerant
DOE Regional Compliance:
Nationwide
Capacity (Tons):
3
Electrical Frequency:
60hz
Electrical Phase:
1ph
Product Depth:
29 1/8
Product Line:
BAR7
Operating Mode:
Cooling Only
Minimum Amps:
21.9
Maximum Overcurrent Protection:
38.3
Product Category:
Air Conditioner Condenser
Energy Star Listed:
No
Product Height:
24 15/16
Liquid Line Size | OD - Outside Diameter:
3/8"
ETL Listed:
Yes
PRODUCT NAME:

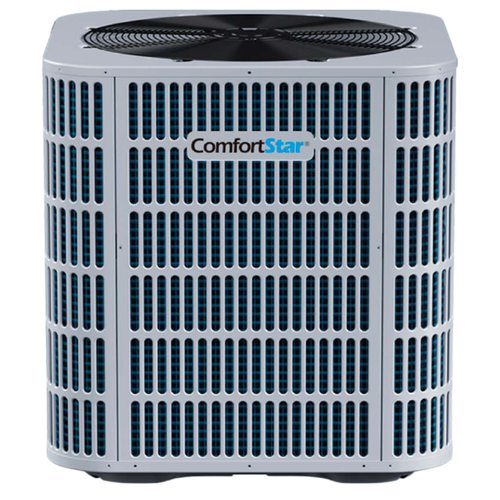

Comfortstar 3 Ton 14.3 SEER Air Conditioner Condenser R454B Refrigerant | BAR7-36-15
SEER2 | Seasonal Energy Efficiency Ratio 2:
14.3
Product Width:
29 1/8
Suction Line Size | OD - Outside Diameter:
3/4"
Ship Weight (lbs):
161
Type:
Air Conditioner Condenser
Safety Information:
PROP 65 WARNING: This product and other products on our site may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
Refrigerant Type:
R454B
Product Weight (Pounds):
154
Voltage:
208 to 230
Warranty Information
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Please Note:
To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
