Brand:
Comfortstar
Width:
28.00
(in)
Height:
33.50
(in)
Depth:
28.00
(in)
Weight:
196.00 LBS
Air Conditioner Condenser Series:
BAR7
AHRI Certified:
Yes
Capacity (Tons):
4
Compressor Type:
Scroll
Compressor Stages:
Single Stage
Cooling BTU | British Thermal Unit:
45000
Designed for:
R454B Refrigerant
ETL Listed:
Yes
Operating Mode:
Cooling Only
Electrical Phase:
1ph
Energy Star Listed:
No
Liquid Line Size | OD - Outside Diameter:
3/8"
DOE Regional Compliance:
Nationwide
Maximum Overcurrent Protection:
49.3
Minimum Amps:
28.3
Electrical Frequency:
60hz
Product Height:
33 3/16
Product Width:
28
Product Line:
BAR7
PRODUCT NAME:

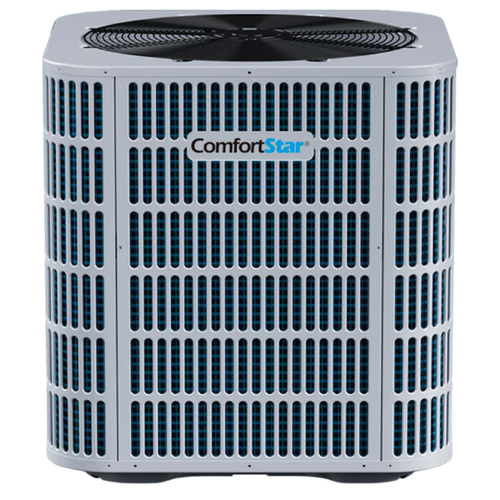

Comfortstar 4 Ton 14.3 SEER Air Conditioner Condenser R454B Refrigerant | BAR7-48-15
Product Weight (Pounds):
187
Refrigerant Type:
R454B
Product Category:
Air Conditioner Condenser
Product Depth:
28
SEER2 | Seasonal Energy Efficiency Ratio 2:
14.3
Safety Information:
PROP 65 WARNING: This product and other products on our site may contain a chemical known to the State of California to cause cancer or birth defects or other reproductive harm.
Ship Weight (lbs):
196
Suction Line Size | OD - Outside Diameter:
7/8"
Voltage:
208 to 230
Type:
Air Conditioner Condenser
Warranty Information
10 Years Compressor & 10 Years Parts | Registration Required within 60 Days of Purchase
Please Note:
To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
