Name: Comfortstar BAR6 3 Ton 14.3 SEER2 Air Conditioner Split System with Wall-Mounted Front Return Air Handler with ECM Motor R454B | BAR6-36-15 CWM6-36-15
Brand: Comfortstar
SKU: BAR6-36-15-CWM6-36-15
Price: 3777.78 USD
Availability: InStock

Overview

Comfortstar BAR6 3 Ton 14.3 SEER2 Air Conditioner Split System with Wall-Mounted Front Return Air Handler with ECM Motor R454B | BAR6-36-15 CWM6-36-15

Product details

Description

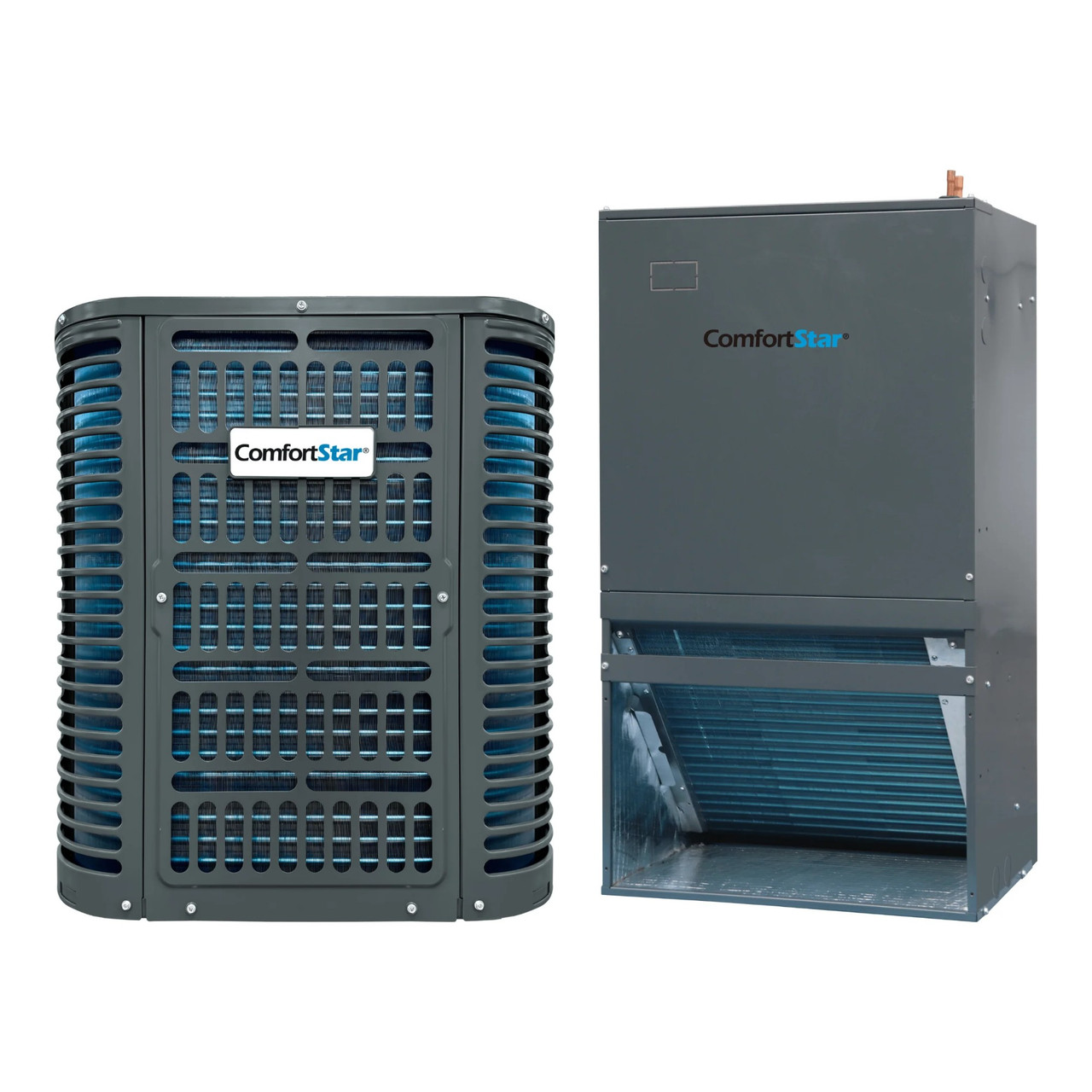

Comfortstar BAR6 3 Ton Air Conditioner Split System (BAR6-36-15 + CWM6-36-15)

This is a complete, AHRI matched air conditioning system from Comfortstar: the BAR6-36-15 top-discharge condenser and the CWM6-36-15 wall-mounted air handler, running on R-454B. Together they are rated at 33,800 BTU/h cooling, 14.3 SEER2 and 11.7 EER2 under AHRI certificate 217638337.

The outdoor unit is a straightforward single-stage scroll condenser: fewer parts, simple 24V controls and easy service. It is a dependable choice for replacements and new construction where you want solid efficiency without the cost of variable-speed equipment.

Indoors, the CWM6-36-15 mounts on the wall or in a closet with a front or bottom return, which makes it a natural fit for condos, apartments and other replacements where a wall-mounted unit was there before. Its ECM blower and the system runs on a standard 24V cooling thermostat, so no proprietary controls are required.

Condenser: BAR6-36-15 Specifications

Nominal Capacity (Tons): 3
Rated Cooling Capacity (BTU/h): 33,800
Compressor: Single-Stage Scroll
Discharge: Top
Refrigerant: R-454B
Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
MCA / MOP: 25 A / 35 A
Liquid / Suction Line: 3/8" / 3/4"
Sound Level: 60 dBA
Dimensions (W x D x H): 29 1/7" x 29 1/7" x 32 7/8"
Net / Shipping Weight: 160 lb / 170 lb

Air Handler: CWM6-36-15 Specifications

Configuration: Wall-Mounted, Front or Bottom Return
Blower Motor: ECM
Refrigerant: R-454B
Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
MCA / MOP (without heat): 5 A / 6 A
Electric Heat: Field-installed heat strip, sold separately
Dimensions (W x D x H): 22" x 19" x 39 1/2"
Net Weight: 105 lb

System Ratings

AHRI Reference Number: 217638337
SEER2: 14.3
EER2: 11.7

Both units ship separately. Line set, thermostat, disconnect, condenser pad, filter are sold separately. Installation and service require a licensed HVAC technician.

What's in this bundle

Complete your install

Life at home

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Key features

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Comfortstar

Width:

29.10 (in)

Height:

32.90 (in)

Depth:

29.10 (in)

Weight:

275.00 LBS

AHRI Certified:

Yes

AHRI Reference Number:

217638337

Refrigerant Type:

R-454B

Capacity (Tons):

3

Cooling Capacity (BTU):

33,800

SEER2:

14 SEER2

EER2:

11.7 EER2

Product Category:

Air Conditioner Split System

Product Line:

BAR6

Condenser Model:

BAR6-36-15

Air Handler Model:

CWM6-36-15

Compressor Stages:

Single Stage

Discharge:

Top

Electrical Phase:

1-Phase

Voltage / Phase:

208/230V 1-Phase

Matched Indoor Type:

Air Handler

Configuration:

Wall-Mounted, Front or Bottom Return

Blower Motor Type:

ECM

DOE Regional Compliance:

Nationwide

Electric Heat Options:

Field-installed heat strip, sold separately

System Type:

Air Conditioner

Operating Mode:

Cooling Only

Prop 65 Warning:

Yes

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Condenser BAR6-36-15 - Compressor:

Single-Stage Scroll

Condenser BAR6-36-15 - Discharge:

Top

Condenser BAR6-36-15 - MCA / MOP:

25 A / 35 A

Condenser BAR6-36-15 - Liquid / Suction Line:

3/8" / 3/4"

Condenser BAR6-36-15 - Sound Level (dBA):

60

Condenser BAR6-36-15 - Dimensions (W x D x H):

29 1/7" x 29 1/7" x 32 7/8"

Condenser BAR6-36-15 - Net / Shipping Weight:

160 lb / 170 lb

Air Handler CWM6-36-15 - Configuration:

Wall-Mounted, Front or Bottom Return

Air Handler CWM6-36-15 - Blower Motor:

ECM

Air Handler CWM6-36-15 - MCA / MOP (without heat):

5 A / 6 A

Air Handler CWM6-36-15 - Dimensions (W x D x H):

22" x 19" x 39 1/2"

Air Handler CWM6-36-15 - Net Weight:

105 lb

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty

Warranty

10 Years Compressor & 10 Years Parts & 3 Years Unit Replacement | Registration Required within 60 Days of Installation

Frequently asked questions

Is the AHRI certified?

Yes. The AHRI reference number is 217638337.

What refrigerant does the use?

It uses R-454B refrigerant.

What size is the ?

The is a 3 ton unit.

How much cooling does the provide?

It is rated for 33,800 BTU of cooling.

What is the SEER2 rating of the ?

The is rated at 14 SEER2 SEER2.

What power supply does the need?

It requires 208/230V 1-Phase power.

What warranty comes with the BAR6-36-15-CWM6-36-15?

10 Years Compressor & 10 Years Parts & 3 Years Unit Replacement | Registration Required within 60 Days of Installation

Who makes the BAR6-36-15-CWM6-36-15?

The BAR6-36-15-CWM6-36-15 is made by Comfortstar.
