Name: Comfortstar BAH6 2 Ton 14.3 SEER2 Heat Pump Split System with Wall-Mounted Front Return Air Handler with ECM Motor R454B | BAH6-24-15 CWM6-24-15
Brand: Comfortstar
SKU: BAH6-24-15-CWM6-24-15
Price: 2888.89 USD
Availability: InStock

Overview

Comfortstar BAH6 2 Ton 14.3 SEER2 Heat Pump Split System with Wall-Mounted Front Return Air Handler with ECM Motor R454B | BAH6-24-15 CWM6-24-15

Product details

Description

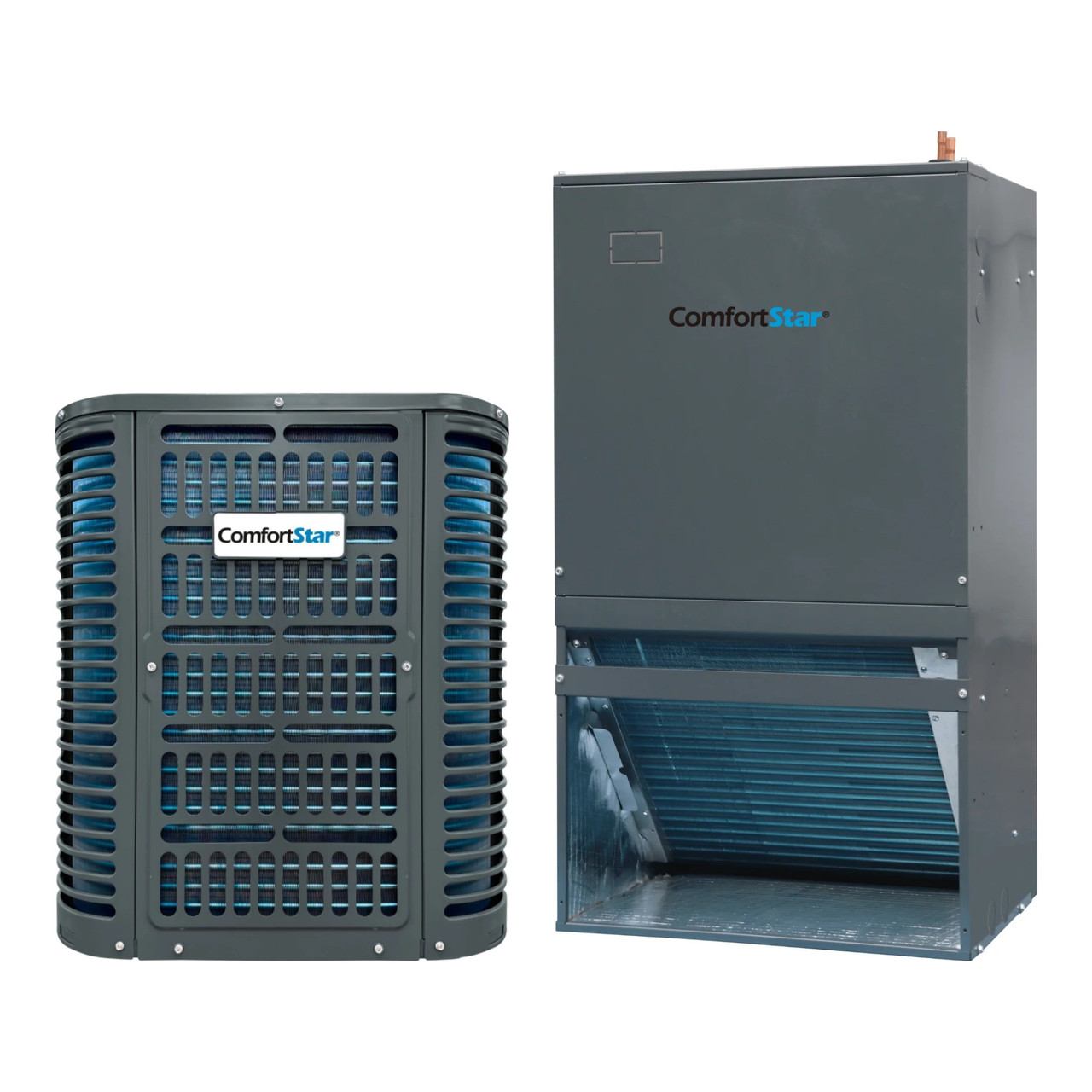

Comfortstar BAH6 2 Ton Heat Pump Split System (BAH6-24-15 + CWM6-24-15)

This is a complete, AHRI matched heat pump system from Comfortstar: the BAH6-24-15 top-discharge heat pump and the CWM6-24-15 wall-mounted air handler, running on R-454B. Together they are rated at 22,000 BTU/h cooling, 22,000 BTU/h heating, 14.3 SEER2 and 11.7 EER2 with 7.5 HSPF2 under AHRI certificate 217638339.

The outdoor unit is a straightforward single-stage scroll heat pump: fewer parts, simple 24V controls and easy service. It is a dependable choice for replacements and new construction where you want solid efficiency without the cost of variable-speed equipment.

Indoors, the CWM6-24-15 mounts on the wall or in a closet with a front or bottom return, which makes it a natural fit for condos, apartments and other replacements where a wall-mounted unit was there before. Its ECM blower and the system runs on a standard 24V heat pump thermostat, so no proprietary controls are required.

Heat Pump: BAH6-24-15 Specifications

Nominal Capacity (Tons): 2
Rated Cooling Capacity (BTU/h): 22,000
Rated Heating Capacity @ 47°F (BTU/h): 22,000
Compressor: Single-Stage Scroll
Discharge: Top
Refrigerant: R-454B
Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
MCA / MOP: 20 A / 30 A
Liquid / Suction Line: 3/8" / 3/4"
Max Line Length: 131 ft
Sound Level: 60 dBA
Dimensions (W x D x H): 21 4/5" x 21 4/5" x 25"
Net / Shipping Weight: 133 lb / 139 lb

Air Handler: CWM6-24-15 Specifications

Configuration: Wall-Mounted, Front or Bottom Return
Blower Motor: ECM
Refrigerant: R-454B
Voltage/Phase/Hz: 208-230 V / 1 Ph / 60 Hz
MCA / MOP (without heat): 4 A / 6 A
Electric Heat: Field-installed heat strip, sold separately
Dimensions (W x D x H): 20 2/3" x 15" x 36 1/2"
Net Weight: 81.4 lb

System Ratings

AHRI Reference Number: 217638339
SEER2: 14.3
EER2: 11.7
HSPF2: 7.5

Both units ship separately. Line set, thermostat, disconnect, condenser pad, filter and electric heat strip are sold separately. Installation and service require a licensed HVAC technician.

What's in this bundle

Complete your install

Life at home

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Key features

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Comfortstar

Width:

21.80 (in)

Height:

25.00 (in)

Depth:

21.80 (in)

Weight:

220.40 LBS

AHRI Certified:

Yes

AHRI Reference Number:

217638339

Refrigerant Type:

R-454B

Capacity (Tons):

2

Cooling Capacity (BTU):

22,000

Heating Output (BTU):

20,000 - 29,000 BTU

SEER2:

14 SEER2

EER2:

11.7 EER2

HSPF2:

7.5 HSPF2

Product Category:

Heat Pump Split System

Product Line:

BAH6

Outdoor Unit Model:

BAH6-24-15

Air Handler Model:

CWM6-24-15

Compressor Stages:

Single Stage

Discharge:

Top

Electrical Phase:

1-Phase

Voltage / Phase:

208/230V 1-Phase

Matched Indoor Type:

Air Handler

Configuration:

Wall-Mounted, Front or Bottom Return

Blower Motor Type:

ECM

DOE Regional Compliance:

Nationwide

Electric Heat Options:

Field-installed heat strip, sold separately

System Type:

Heat Pump

Operating Mode:

Cooling & Heating

Max Line Length:

131 ft

Prop 65 Warning:

Yes

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Heat Pump BAH6-24-15 - Compressor:

Single-Stage Scroll

Heat Pump BAH6-24-15 - Discharge:

Top

Heat Pump BAH6-24-15 - MCA / MOP:

20 A / 30 A

Heat Pump BAH6-24-15 - Liquid / Suction Line:

3/8" / 3/4"

Heat Pump BAH6-24-15 - Sound Level (dBA):

60

Heat Pump BAH6-24-15 - Dimensions (W x D x H):

21 4/5" x 21 4/5" x 25"

Heat Pump BAH6-24-15 - Net / Shipping Weight:

133 lb / 139 lb

Air Handler CWM6-24-15 - Configuration:

Wall-Mounted, Front or Bottom Return

Air Handler CWM6-24-15 - Blower Motor:

ECM

Air Handler CWM6-24-15 - MCA / MOP (without heat):

4 A / 6 A

Air Handler CWM6-24-15 - Dimensions (W x D x H):

20 2/3" x 15" x 36 1/2"

Air Handler CWM6-24-15 - Net Weight:

81.4 lb

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty

Warranty

10 Years Compressor & 10 Years Parts & 3 Years Unit Replacement | Registration Required within 60 Days of Installation

Frequently asked questions

Is the AHRI certified?

Yes. The AHRI reference number is 217638339.

What refrigerant does the use?

It uses R-454B refrigerant.

What size is the ?

The is a 2 ton unit.

How much cooling does the provide?

It is rated for 22,000 BTU of cooling.

What is the SEER2 rating of the ?

The is rated at 14 SEER2 SEER2.

What is the HSPF2 heating efficiency of the ?

It is rated at 7.5 HSPF2 HSPF2.

What power supply does the need?

It requires 208/230V 1-Phase power.

What warranty comes with the BAH6-24-15-CWM6-24-15?

10 Years Compressor & 10 Years Parts & 3 Years Unit Replacement | Registration Required within 60 Days of Installation

Who makes the BAH6-24-15-CWM6-24-15?

The BAH6-24-15-CWM6-24-15 is made by Comfortstar.
