Description

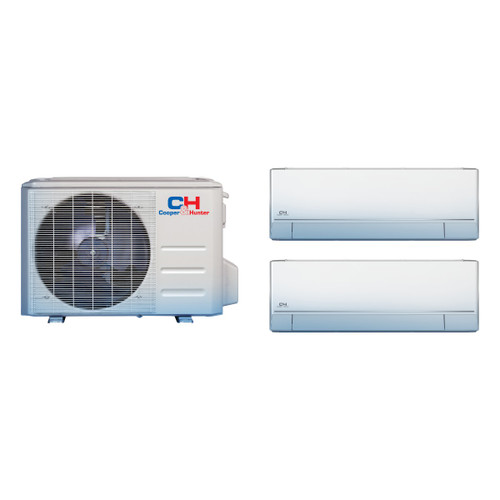

This Cooper & Hunter dual zone system pairs the CH-R18MES-230VO 18,000 BTU multi-zone inverter heat pump with 2 Astoria wall-mounted indoor units (12K + 12K), a combination listed on Cooper & Hunter's multi-zone combination chart. Each room gets its own indoor unit and remote, and the rooms do not have to run at the same time or set point.
The outdoor unit is rated up to 25.1 SEER2 and 9.8 HSPF2 (Region IV) with non-ducted indoor units (AHRI reference 215864254 for the non-ducted family); actual efficiency varies with the indoor combination. It heats down to -13°F and cools down to -13°F outdoors, uses R-454B refrigerant and runs on 208/230V single-phase power.
What's Included
- 1 × CH-R18MES-230VO Cooper & Hunter 18,000 BTU multi-zone outdoor heat pump (up to 3 zones)
- 2 × CH-RH12MASTWM-230VI Astoria 12,000 BTU wall-mounted indoor unit
- 2 × wireless remote control (one per indoor unit)
- 2 × Smart Kit (Wi-Fi) — one per indoor unit
- Port adapters (included with the outdoor unit)
System Performance
- Outdoor Unit Capacity (rated, min~max): 18,000 (5,400~21,600) BTU/h cooling
- Heating (rated, min~max): 19,000 (5,700~21,600) BTU/h
- Heating @ 5°F: 13,500 BTU/h
- SEER2 (non-ducted): 25.1
- EER2: 14
- HSPF2 (Region IV / V): 9.8 / 7.8
- Indoor Unit Combination: 12K + 12K
- Connected Indoor Capacity: 24,000 BTU/h
- Refrigerant: R-454B
- Power Supply: 208/230V 1-Phase 60 Hz
Component Specifications
Outdoor Unit — CH-R18MES-230VO
- Cooling Capacity, rated (min~max) BTU/h: 18,000 (5,400~21,600)
- Heating Capacity, rated (min~max) BTU/h: 19,000 (5,700~21,600)
- COP @ 47°F: 3.8
- HSPF2 (Region IV / V): 9.8 / 7.8
- Max Line Length (ft): 196.8
- Max Height Difference (ft): 49.2
- Refrigerant Pre-Charge: 75 ft of line
- Minimum Circuit Ampacity (A): 16
- Max Fuse / Breaker (A): 20
- Outdoor Sound Level (dB(A)): 59.5
- Cooling Operating Range (°F outdoor): -13~122
- Heating Operating Range (°F outdoor): -13~75
- Unit Dimensions (W x D x H): 35.04 in x 13.46 in x 26.50 in
- Net / Shipping Weight: 100.53 lb / 109.35 lb
- Refrigerant Ports: 3 x 1/4" liquid / 3 x 3/8" gas
- Max Total Line Length (ft): 196.8
- Max Line Length to One Indoor Unit (ft): 98.4
Indoor Unit — CH-RH12MASTWM-230VI
- Cooling Capacity (BTU/h): 12,000
- Refrigerant Piping (Liquid/Gas): 1/4"/3/8"
- Airflow (CFM, high to low): 441.4 / 323.7 / 229.6 / 176.6
- Sound Level (dB(A), high/med/low): 38/33/18
- Condensate Drain: 5/8"
- Unit Dimensions (W x D x H): 33.74 in x 9.09 in x 11.81 in
- Net / Shipping Weight: 22.93 lb / 29.32 lb
Installation Notes
Each indoor unit gets its own line set and communication cable from the matching port on the outdoor unit (minimum 10 ft per zone). Line sets, wall sleeves, condensate lines and mounting hardware are sold separately. Installation, evacuation and charge adjustment must be done by a licensed HVAC technician with A2L-rated tools.
White Paper
- Cooper & Hunter CH-RH12MASTWM-230VI Spec Sheet (PDF)
- Cooper & Hunter CH-R18MES-230VO Ducted Spec Sheet (PDF)
- Cooper & Hunter CH-R18MES-230VO Non-Ducted Spec Sheet (PDF)
- Cooper & Hunter Installation Manual – Multi-R (PDF)
- Cooper & Hunter New Smart Kit Manual 2025 (PDF)
- Cooper & Hunter Owner's Manual R-454B Astoria (PDF)
- Cooper & Hunter Remote Controller Manual Astoria (PDF)
- Cooper & Hunter Astoria Leaflet 2026 (PDF)
- Cooper & Hunter Accessories Leaflet 2024 (PDF)
- Cooper & Hunter Multi-Zone Leaflet 2025 (PDF)
Common Questions
Can I swap a wall unit for a cassette or ducted unit?
Yes, within Cooper & Hunter's combination chart. The indoor units for this outdoor unit are also listed individually, so a technician can build a mixed system with ceiling cassettes, slim duct, floor console or floor/ceiling units.
Do all zones have to be installed at once?
No. Zones can be added later as long as the final combination is on the chart.
