Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9T800603BN CHPTA3630B3

Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9T800603BN CHPTA3630B3

Name: Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9T800603BN CHPTA3630B3
Brand: Goodman
SKU: GLXS5BA3010-GR9T800603BN-CHPTA3630B3
Price: 4955 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS5BA3010-GR9T800603BN-CHPTA3630B3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

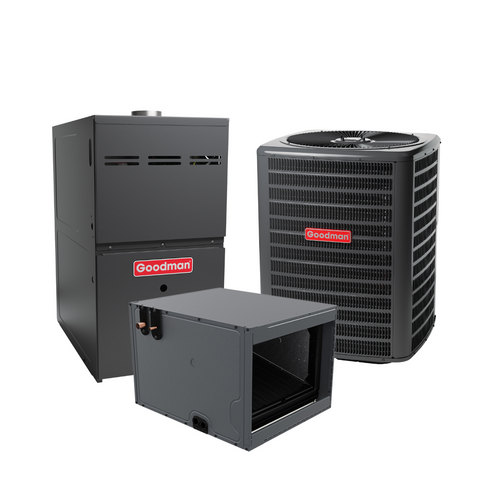

Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32, model GLXS5BA3010 GR9T800603BN CHPTA3630B3 - view 5

UPC:
Condition:: New
Width:: 48.00 (in)
Height:: 46.00 (in)
Depth:: 40.00 (in)

Questions about Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9T800603BN CHPTA3630B3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$4,955.00

Overview

Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 | GLXS5BA3010 GR9T800603BN CHPTA3630B3

Product details

Description

The Goodman 2.5 Ton 16 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Horizontal R-32 (GLXS5BA3010 / GR9T800603BN / CHPTA3630B3) is a complete residential heating and cooling solution designed to provide dependable year-round comfort. This matched system combines a 2.5-ton R-32 air conditioner, 80% AFUE gas furnace, and 3-ton cased evaporator coil for efficient cooling performance and reliable heating.

Designed for horizontal installation, this system is suitable for applications where duct connections require horizontal airflow configuration. The furnace features single-stage heating and a multi-speed blower motor to help provide consistent airflow, improved comfort, and efficient operation.

Key Features

2.5 Ton Cooling Capacity – Delivers 30,000 BTU of residential cooling capacity
16 SEER2 Efficiency – Provides enhanced cooling efficiency for residential comfort
60,000 BTU Gas Furnace – Delivers reliable heating capacity for residential applications
80% AFUE Efficiency – Converts approximately 80% of fuel into usable heating energy
Horizontal R-32 Configuration – Designed for horizontal installation with compatible duct systems
Multi-Speed Blower Motor – Helps maintain consistent airflow and efficient system operation
Matched 3 Ton Coil – Designed to support proper cooling capacity and system performance

System Components Included

Goodman GLXS5BA3010 2.5 Ton 16 SEER2 R-32 Air Conditioner
Goodman GR9T800603BN 60,000 BTU 80% AFUE Gas Furnace
Goodman CHPTA3630B3 3 Ton Cased Horizontal R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA3010 / GR9T800603BN / CHPTA3630B3 system is designed for residential horizontal applications. Compatibility with existing ductwork, electrical service, natural gas supply, refrigerant lines, condensate drainage, and approved furnace venting should be confirmed before installation.

The complete equipment combination should be verified against applicable AHRI matching data to confirm certified efficiency ratings and system performance.

Installation Notes

Verify compatibility with existing horizontal ductwork
Confirm electrical service and natural gas connection requirements
Check required refrigerant line sizes before installation
Install approved furnace venting and proper evaporator coil condensate drainage
Confirm adequate installation and service clearances
Verify complete system AHRI-rated performance
Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA3010 air conditioner, GR9T800603BN gas furnace, and CHPTA3630B3 cased evaporator coil.

What is the cooling capacity of this system?

The system provides 2.5 tons or 30,000 BTU of cooling capacity.

Is the furnace single-stage or two-stage?

The Goodman GR9T800603BN is a single-stage gas furnace designed to provide dependable heating performance.

What is the approximate heating output?

With an 80% AFUE rating, the 60,000 BTU furnace provides approximately 48,000 BTU of usable heating output.

How does a horizontal HVAC system operate?

A horizontal system moves conditioned air through horizontal duct connections and is designed for compatible horizontal installation spaces.

What does 80% AFUE mean?

An 80% AFUE rating means approximately 80% of the furnace’s fuel is converted into usable heating energy.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

48.00 (in)

Height:

46.00 (in)

Depth:

40.00 (in)

Weight:

437.00 LBS

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Category:

Gas Heating & Air Conditioner Bundle

AHRI Certified:

Yes

Configuration:

Horizontal

Capacity (Tons):

2.5

AHRI Reference Number:

215380640

Blower Motor Type:

ECM Constant Torque

Airflow (CFM):

1,200

AFUE:

80%

Unit Weight:

193.5 lb

Prop 65 Warning:

Yes

SEER2:

16 SEER2

Liquid Line Size:

3/8 in

Shipping Weight:

208.5 lb

Vent Type:

Chimney / Category I

Refrigerant Type:

R-32

Line Set Connection Type:

Braze

Heating Input (BTU):

40,000 - 69,000 BTU

Color:

Gray

EER2:

12 EER2

Heating Stages:

Two Stage

Cabinet Width (in):

17.5

Electrical Frequency:

60 Hz

Electrical Phase:

1-Phase

Cooling Capacity (BTU):

30,000

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS5BA3010 - Nominal Capacity (Tons):

2.5

Condenser GLXS5BA3010 - Cooling Capacity (BTU/h):

30,000

Condenser GLXS5BA3010 - Refrigerant:

R-32

Condenser GLXS5BA3010 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS5BA3010 - Minimum Circuit Ampacity (MCA):

15.4 A

Condenser GLXS5BA3010 - Maximum Overcurrent Protection (MOP):

25 A

Condenser GLXS5BA3010 - Compressor Type:

Scroll

Condenser GLXS5BA3010 - Compressor Stages:

Single Stage

Condenser GLXS5BA3010 - Liquid Line Size:

3/8 in

Condenser GLXS5BA3010 - Suction Line Size:

3/4 in

Condenser GLXS5BA3010 - Sound Level (dB):

Condenser GLXS5BA3010 - Shipping Weight:

214 lb

Furnace GR9T800603BN - Input (BTU/h):

60,000

Furnace GR9T800603BN - Output (BTU/h):

48,000

Furnace GR9T800603BN - AFUE:

80%

Furnace GR9T800603BN - Heating Stages:

Two Stage

Furnace GR9T800603BN - Blower Motor Type:

ECM Constant Torque

Furnace GR9T800603BN - Maximum Cooling Capacity (Tons):

Furnace GR9T800603BN - Configuration:

Upflow/Horizontal

Furnace GR9T800603BN - Cabinet Width:

17.5 in

Furnace GR9T800603BN - Vent Type:

Chimney / Category I

Furnace GR9T800603BN - Gas Type:

Propane Convertible

Furnace GR9T800603BN - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GR9T800603BN - Unit Dimensions (W x D x H):

17.5 in x 28 in x 33.375 in

Furnace GR9T800603BN - Shipping Weight:

107 lb

Evaporator Coil CHPTA3630B3 - Nominal Capacity (Tons):

Evaporator Coil CHPTA3630B3 - Cased/Uncased:

Cased

Evaporator Coil CHPTA3630B3 - Configuration:

Horizontal

Evaporator Coil CHPTA3630B3 - Cabinet Width:

30 in

Evaporator Coil CHPTA3630B3 - Metering Device:

TXV

Evaporator Coil CHPTA3630B3 - Refrigerant:

R-32

Evaporator Coil CHPTA3630B3 - Liquid Line Size:

3/8 in

Evaporator Coil CHPTA3630B3 - Suction Line Size:

7/8 in

System Type:

Gas Electric Split System

Cooling Capacity:

2.5 Ton / 30,000 BTU

Evaporator Coil Capacity:

3 Ton / 36,000 BTU nominal

Heating Output:

Approximately 48,000 BTU

Furnace Efficiency:

80% AFUE

Furnace Stages:

Single-Stage

Blower Motor:

Multi-Speed

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
