Goodman 2.5 Ton 16 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS5BA3010 GR9T800803BX CAPTA3626B3

Designed for upflow installation, the system features a two-stage gas furnace and a multi-speed ECM blower motor for improved comfort, consistent airflow, and efficient operation. Its upflow configuration draws return air through the bottom and supplies conditioned air from the top, making it suitable for closets, basements, utility rooms, and other vertical installations.

Key Features

• 2.5 Ton Cooling Capacity – Delivers 30,000 BTU of residential cooling
• 16 SEER2 Efficiency – Supports energy-efficient cooling performance
• 80,000 BTU Gas Furnace – Provides dependable two-stage heating
• 80% AFUE Efficiency – Converts approximately 80% of fuel into usable heat
• Two-Stage Heating – Adjusts heating output for improved temperature control
• Upflow R-32 System – Designed for vertical residential installations

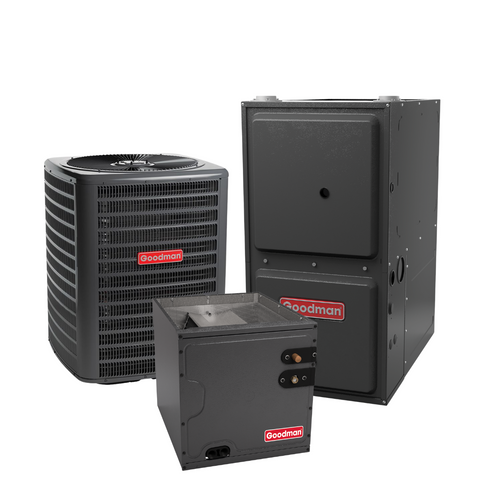

System Components Included

• Goodman GLXS5BA3010 2.5 Ton 16 SEER2 R-32 Air Conditioner
• Goodman GR9T800803BX 80,000 BTU 80% AFUE Two-Stage Gas Furnace
• Goodman CAPTA3626B3 Cased Upflow/Downflow R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA3010 / GR9T800803BX / CAPTA3626B3 system is designed for residential upflow applications. The evaporator coil has a larger nominal capacity than the outdoor condenser and may be paired with the 2.5-ton air conditioner to support the system’s rated efficiency. The exact AHRI-rated combination, ductwork, electrical service, gas supply, refrigerant lines, condensate drainage, thermostat, and approved furnace venting must be confirmed before installation.

Installation Notes

• Verify compatibility with the existing upflow ductwork
• Confirm the complete system combination and efficiency through an AHRI match
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install approved furnace venting and proper evaporator condensate drainage
• Use a compatible two-stage thermostat for full staging functionality
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA3010 air conditioner, GR9T800803BX gas furnace, and CAPTA3626B3 evaporator coil.

What is the cooling capacity of this system?

The system provides 2.5 tons or 30,000 BTU of cooling capacity.

Is the furnace single-stage or two-stage?

The Goodman GR9T800803BX is a two-stage gas furnace, allowing it to operate at a lower heating level during milder conditions and increase output when additional heat is required.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy, providing an estimated maximum heating output of 64,000 BTU.

Why is the evaporator coil larger than the air conditioner?

A larger nominal evaporator coil may be matched with a smaller outdoor condenser to help achieve the intended cooling efficiency. The complete equipment combination should be verified using its AHRI certification.
