Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS5BA2410 GR9T800603BN CAPTA2422B3

The Goodman 2 Ton 15.2 SEER2 80% AFUE 60,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 (GLXS5BA2410 / GR9T800603BN / CAPTA2422B3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2-ton R-32 air conditioner, 80% AFUE gas furnace, and cased upflow evaporator coil for energy-efficient cooling and reliable heating.

Designed for upflow installation, the system features a two-stage gas furnace and a multi-speed ECM blower motor for improved comfort, consistent airflow, and efficient operation. Its upflow configuration draws return air through the bottom and supplies conditioned air from the top, making it suitable for closets, basements, utility rooms, and other vertical installations.

Key Features

• 2 Ton Cooling Capacity – Delivers 24,000 BTU of residential cooling
• 15.2 SEER2 Efficiency – Supports energy-efficient cooling performance
• 60,000 BTU Gas Furnace – Provides dependable two-stage heating
• 80% AFUE Efficiency – Converts approximately 80% of fuel into usable heat
• Two-Stage Heating – Adjusts heating output for improved temperature control
• Upflow R-32 System – Designed for vertical residential installations

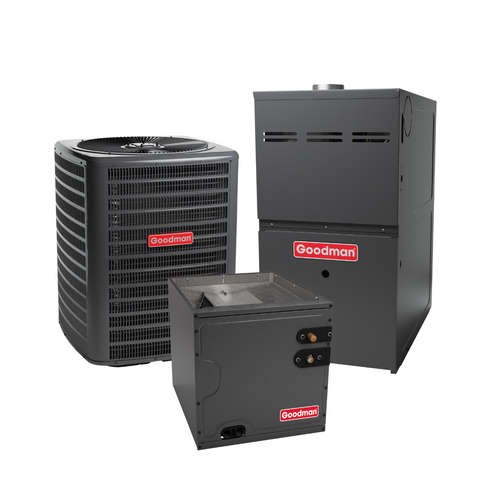

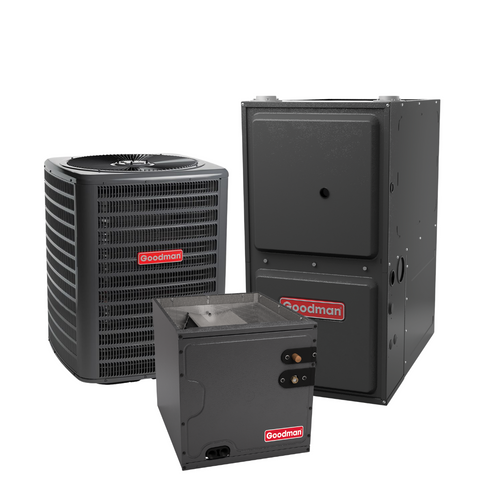

System Components Included

• Goodman GLXS5BA2410 2 Ton 15.2 SEER2 R-32 Air Conditioner
• Goodman GR9T800603BN 60,000 BTU 80% AFUE Two-Stage Gas Furnace
• Goodman CAPTA2422B3 Cased Upflow/Downflow R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA2410 / GR9T800603BN / CAPTA2422B3 system is designed for residential upflow applications. Compatibility with the property’s ductwork, electrical service, gas supply, refrigerant lines, condensate drainage, thermostat, and approved furnace venting must be confirmed before installation.

Specifications

• System Type: Gas Electric Split System
• Cooling Capacity: 2 Ton / 24,000 BTU
• Heating Input: 60,000 BTU
• Heating Output: Approximately 48,000 BTU
• Cooling Efficiency: 15.2 SEER2
• Furnace Efficiency: 80% AFUE
• Furnace Stages: Two-Stage
• Refrigerant / Orientation: R-32 / Upflow

Installation Notes

• Verify compatibility with the existing upflow ductwork
• Confirm the complete system combination and efficiency through an AHRI match
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install approved furnace venting and proper evaporator condensate drainage
• Use a compatible two-stage thermostat for full staging functionality
• Maintain required clearances and follow applicable local codes
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA2410 air conditioner, GR9T800603BN gas furnace, and CAPTA2422B3 evaporator coil.

What is the cooling capacity of this system?

The system provides 2 tons or 24,000 BTU of cooling capacity.

Is the furnace single-stage or two-stage?

The Goodman GR9T800603BN is a two-stage gas furnace, allowing it to operate at a lower heating level during milder conditions and increase output when additional heat is required.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy, providing an estimated maximum heating output of 48,000 BTU.

What does upflow installation mean?

An upflow system draws return air through the bottom and sends heated or cooled air upward through the supply ductwork.

Does a two-stage thermostat need to be used?

A compatible two-stage thermostat is recommended to provide full control over both heating stages and maximize comfort.
