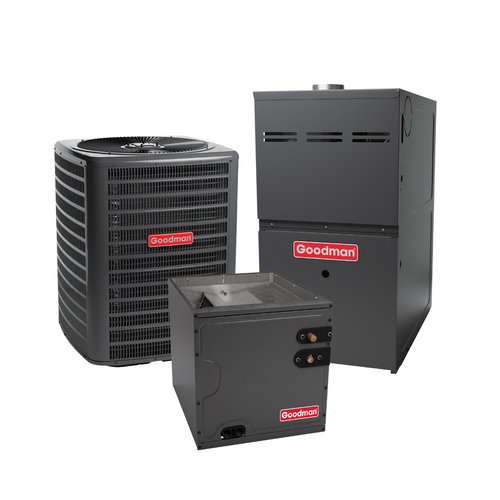

Goodman 2 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS5BA2410 GR9T800804CN CAPTA3022C3

The Goodman 2 Ton 15.2 SEER2 80% AFUE 80,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 (GLXS5BA2410 / GR9T800804CN / CAPTA3022C3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 2-ton R-32 air conditioner, 80% AFUE gas furnace, and 2.5-ton cased evaporator coil for energy-efficient cooling and reliable heating.

Designed for upflow installation, the system draws return air through the bottom and supplies conditioned air through the top. The two-stage gas furnace and multi-speed ECM blower motor provide improved temperature control, consistent airflow, and efficient operation.

Key Features

• 2 Ton Cooling Capacity – Delivers 24,000 BTU of residential cooling
• 15.2 SEER2 Efficiency – Supports energy-efficient cooling performance
• 80,000 BTU Gas Furnace – Provides dependable residential heating
• Two-Stage Heating – Adjusts heating output according to comfort demand
• 80% AFUE Efficiency – Converts approximately 80% of fuel into usable heat
• Multi-Speed ECM Blower – Promotes consistent airflow and efficient operation
• Upflow Configuration – Draws return air from the bottom and discharges it through the top
• 2.5 Ton Evaporator Coil – Paired with the 2-ton condenser as part of the matched system
• R-32 Refrigerant System – Uses next-generation refrigerant technology

System Components Included

• Goodman GLXS5BA2410 2 Ton 15.2 SEER2 R-32 Air Conditioner
• Goodman GR9T800804CN 80,000 BTU 80% AFUE Two-Stage Gas Furnace
• Goodman CAPTA3022C3 2.5 Ton Cased Upflow/Downflow R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA2410 / GR9T800804CN / CAPTA3022C3 system is configured for residential upflow applications. The 2.5-ton evaporator coil is paired with the 2-ton air conditioner as part of the complete equipment combination. The system match and stated efficiency should be verified using the applicable AHRI certification.

Compatibility with the property’s ductwork, electrical service, natural gas supply, refrigerant lines, condensate drainage, and approved furnace venting must be confirmed before installation. A compatible two-stage thermostat is recommended to access the furnace’s full staged-heating capability.

Specifications

• System Type: Gas Electric Split System
• Cooling Capacity: 2 Ton / 24,000 BTU
• Evaporator Coil Capacity: 2.5 Ton
• Heating Input: 80,000 BTU
• Heating Output: Approximately 64,000 BTU
• Cooling Efficiency: 15.2 SEER2
• Furnace Efficiency: 80% AFUE
• Furnace Stages: Two Stage
• Blower Motor: Multi-Speed ECM
• Refrigerant: R-32
• Installation Orientation: Upflow

Installation Notes

• Verify compatibility with the existing upflow ductwork
• Confirm the complete equipment combination and AHRI-rated efficiency
• Install a compatible two-stage thermostat for full staged operation
• Confirm electrical service and natural gas connection requirements
• Check the required refrigerant line sizes before installation
• Install approved furnace venting and proper evaporator-coil condensate drainage
• Maintain the required equipment clearances and service access
• Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA2410 air conditioner, GR9T800804CN gas furnace, and CAPTA3022C3 cased evaporator coil.

What is the cooling capacity of this system?

The air conditioner provides 2 tons or 24,000 BTU of cooling capacity.

Why is a 2.5-ton evaporator coil paired with a 2-ton air conditioner?

A larger evaporator coil may be used as part of an approved matched combination to support cooling performance and efficiency. The complete system pairing should be verified through its applicable AHRI certification.

Is the furnace single-stage or two-stage?

The Goodman GR9T800804CN is a two-stage gas furnace that can operate at a lower heating level during moderate demand and increase its output when additional heat is required.

Does this system require a two-stage thermostat?

A compatible two-stage thermostat is recommended to provide proper control and access the furnace’s full two-stage heating capability.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy, providing an estimated maximum heating output of 64,000 BTU.

Does this system use R-32 refrigerant?

Yes. The air conditioner and evaporator coil are designed for R-32 refrigerant.
