Goodman 3.5 Ton 15 SEER2 96% AFUE 120,000 BTU Gas Electric Air Conditioner Split System Upflow R-32 | GLXS4BA4210 GR9T961205DN CAPTA4230D3

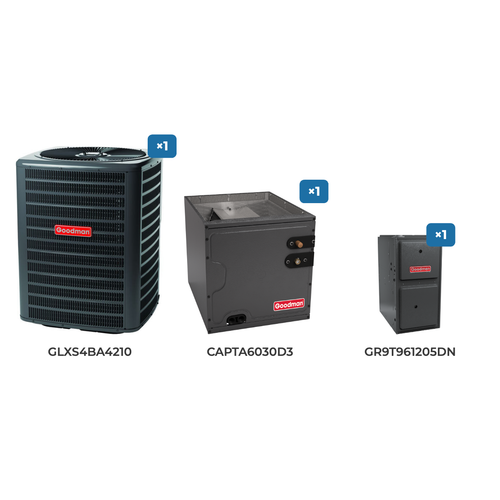

The Goodman 3.5 Ton 15 SEER2 96% AFUE 120,000 BTU Gas Electric Air Conditioner Split System Upflow with R-32 Refrigerant (GLXS4BA4210-GR9T961205DN-CAPTA4230D3) is a matched residential HVAC system designed to provide efficient cooling and high-performance gas heating for year-round indoor comfort. This configuration combines the GLXS4BA4210 outdoor air conditioner, GR9T961205DN high-efficiency gas furnace, and CAPTA4230D3 cased evaporator coil for an upflow installation.

With a nominal 3.5-ton / 42,000 BTU cooling capacity, 15 SEER2 cooling efficiency, and a 120,000 BTU furnace rated at 96% AFUE, this Goodman system delivers reliable climate control with powerful heating capability. The cooling circuit uses R-32 lower-GWP refrigerant, while the upflow configuration supports installations where conditioned air is distributed upward through the duct system.

Key Features

• 3.5 Ton Cooling Capacity – Provides approximately 42,000 BTU of nominal cooling capacity
• 15 SEER2 Efficiency – Designed for efficient seasonal cooling performance
• 120,000 BTU Gas Furnace – Provides high heating capacity for larger residential applications
• 96% AFUE Rating – High-efficiency furnace helps improve fuel utilization and reduce energy loss
• Two-Stage Gas Furnace – Supports staged heating operation for improved comfort control
• Upflow R-32 System – Upflow configuration using modern lower-GWP R-32 refrigerant technology

Product Specifications

• Brand: Goodman
• Outdoor Condenser Model: GLXS4BA4210
• Gas Furnace Model: GR9T961205DN
• Evaporator Coil Model: CAPTA4230D3
• Cooling Capacity / Efficiency: 3.5 Ton / 15 SEER2
• Heating Capacity / Efficiency: 120,000 BTU / 96% AFUE
• System Configuration / Refrigerant: Upflow / R-32

Benefits

• Provides complete cooling and high-capacity gas heating from one matched HVAC system
• 96% AFUE furnace helps improve heating efficiency and reduce energy loss
• 120,000 BTU heating capacity supports larger residential comfort requirements
• Upflow configuration works with many common residential duct layouts

Compatibility & Installation

The Goodman GLXS4BA4210-GR9T961205DN-CAPTA4230D3 package combines the primary components required for an upflow gas/electric split-system installation. Proper sizing, airflow setup, refrigerant installation, and professional commissioning are required to achieve reliable system performance.

Installation considerations:

• Verify the 3.5-ton cooling and 120,000 BTU heating capacities match the home's calculated requirements
• Confirm ductwork supports the required upflow airflow configuration
• Verify gas supply, electrical connections, furnace venting, and condensate drainage requirements
• Follow R-32 A2L refrigerant handling and safety requirements
• Install according to Goodman instructions and applicable HVAC codes

Frequently Asked Questions

What cooling capacity does this Goodman system provide?
The system provides a nominal 3.5-ton cooling capacity, equivalent to approximately 42,000 BTU.

What is the cooling efficiency rating?
This matched configuration is listed at 15 SEER2.

What is the furnace capacity and efficiency?
The GR9T961205DN furnace has a 120,000 BTU input capacity and is rated at 96% AFUE.

Is the furnace single-stage or two-stage?
The GR9T961205DN is a two-stage gas furnace, designed to provide staged heating operation for improved comfort.

What refrigerant does this system use?
The air-conditioning circuit uses R-32, a lower-GWP A2L refrigerant used in newer HVAC systems.

What installation orientation does this system support?
This configuration is designed for upflow installation, where conditioned air moves upward into the supply ductwork.
