Goodman 3 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA3610 GD9T801005CX CAPTA4230C3

Goodman 3 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA3610 GD9T801005CX CAPTA4230C3

Name: Goodman 3 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA3610 GD9T801005CX CAPTA4230C3
Brand: Goodman
SKU: GLXS5BA3610-GD9T801005CX-CAPTA4230C3
Price: 5659 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS5BA3610-GD9T801005CX-CAPTA4230C3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

Goodman 3 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32, model GLXS5BA3610 GD9T801005CX CAPTA4230C3 - view 5

UPC:
Condition:: New
Width:: 48.00 (in)
Height:: 46.00 (in)
Depth:: 40.00 (in)

Questions about Goodman 3 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA3610 GD9T801005CX CAPTA4230C3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$5,659.00

Overview

Goodman 3 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA3610 GD9T801005CX CAPTA4230C3

Product details

Description

The Goodman 3 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 (GLXS5BA3610 / GD9T801005CX / CAPTA4230C3) is a complete residential heating and cooling solution designed for dependable year-round comfort. This matched system combines a 3-ton R-32 air conditioner, 80% AFUE gas furnace, and cased downflow evaporator coil for energy-efficient cooling and reliable heating.

Designed for downflow installation, the system features a two-stage gas furnace and a multi-speed ECM blower motor for improved comfort, consistent airflow, and efficient operation. Its downflow configuration draws return air through the top and delivers conditioned air through the bottom, making it suitable for installations where the supply ductwork is located beneath the furnace.

Key Features

3 Ton Cooling Capacity – Delivers 36,000 BTU of residential cooling
15 SEER2 Efficiency – Supports energy-efficient cooling performance
100,000 BTU Gas Furnace – Provides powerful two-stage heating
80% AFUE Efficiency – Converts approximately 80% of fuel into usable heat
Two-Stage Heating – Adjusts heating output for improved temperature control
Downflow R-32 System – Designed for installations with supply ductwork below the unit

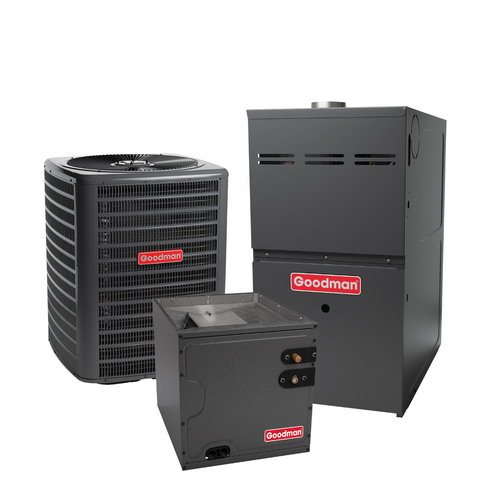

System Components Included

Goodman GLXS5BA3610 3 Ton 15 SEER2 R-32 Air Conditioner
Goodman GD9T801005CX 100,000 BTU 80% AFUE Two-Stage Gas Furnace
Goodman CAPTA4230C3 Cased Upflow/Downflow R-32 Evaporator Coil

Compatibility & Installation Notes

The GLXS5BA3610 / GD9T801005CX / CAPTA4230C3 system is designed for residential downflow applications. The evaporator coil has a larger nominal capacity than the outdoor condenser and may be paired with the 3-ton air conditioner to support the system’s rated efficiency. The exact AHRI-rated combination, ductwork, electrical service, gas supply, refrigerant lines, condensate drainage, thermostat, furnace venting, and required downflow accessories must be confirmed before installation.

Installation Notes

Verify compatibility with the existing downflow ductwork
Confirm the complete system combination and efficiency through an AHRI match
Confirm electrical service and natural gas connection requirements
Check the required refrigerant line sizes before installation
Install approved furnace venting and proper evaporator condensate drainage
Use a compatible two-stage thermostat for full staging functionality
Confirm whether a combustible-floor base or other downflow accessories are required
Maintain required clearances and follow applicable local codes
Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?

The package includes the GLXS5BA3610 air conditioner, GD9T801005CX gas furnace, and CAPTA4230C3 evaporator coil.

What is the cooling capacity of this system?

The system provides 3 tons or 36,000 BTU of cooling capacity.

Is the furnace single-stage or two-stage?

The Goodman GD9T801005CX is a two-stage gas furnace, allowing it to operate at a lower heating level during milder conditions and increase output when additional heat is required.

What does 80% AFUE mean?

It means approximately 80% of the furnace’s fuel is converted into usable heating energy, providing an estimated maximum heating output of 80,000 BTU.

Why is the evaporator coil larger than the air conditioner?

A larger nominal evaporator coil may be matched with a smaller outdoor condenser to help achieve the intended cooling efficiency. The complete combination should be verified using its AHRI certification.

What does downflow installation mean?

A downflow system draws return air through the top and sends heated or cooled air downward into supply ductwork located beneath the unit.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

48.00 (in)

Height:

46.00 (in)

Depth:

40.00 (in)

Weight:

460.00 LBS

AFUE:

80%

AHRI Certified:

Yes

Airflow (CFM):

2,000

Refrigerant Type:

R-32

Electrical Phase:

1-Phase

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Electrical Frequency:

60 Hz

Capacity (Tons):

Configuration:

Downflow

SEER2:

15 SEER2

EER2:

12 EER2

Unit Weight:

217.5 lb

Product Category:

Gas Heating & Air Conditioner Bundle

Air Conditioner Condenser Series:

2000

Ambient Temperature Range (Cooling):

Nationwide (Except CA)

EER:

12.5

Prop 65 Warning:

Yes

Line Set Connection Type:

Braze

Heating Stages:

Two Stage

Liquid Line Size:

3/8 in

Heating Input (BTU):

100,000 - 149,000 BTU

Vent Type:

Chimney / Category I

Shipping Weight:

232.5 lb

AHRI Reference Number:

215380714

Blower Motor Type:

ECM Constant Torque

Color:

Gray

Cabinet Width (in):

Cooling Capacity (BTU):

36,000

DOE Regional Compliance:

Nationwide

Compressor Stages:

Single Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS5BA3610 - Nominal Capacity (Tons):

Condenser GLXS5BA3610 - Cooling Capacity (BTU/h):

36,000

Condenser GLXS5BA3610 - Refrigerant:

R-32

Condenser GLXS5BA3610 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS5BA3610 - Minimum Circuit Ampacity (MCA):

17.8 A

Condenser GLXS5BA3610 - Maximum Overcurrent Protection (MOP):

30 A

Condenser GLXS5BA3610 - Compressor Type:

Scroll

Condenser GLXS5BA3610 - Compressor Stages:

Single Stage

Condenser GLXS5BA3610 - Liquid Line Size:

3/8 in

Condenser GLXS5BA3610 - Suction Line Size:

7/8 in

Condenser GLXS5BA3610 - Sound Level (dB):

Condenser GLXS5BA3610 - Unit Dimensions (W x D x H):

35.5 in x 35.5 in x 39.5 in

Condenser GLXS5BA3610 - Unit Weight:

191 lb

Condenser GLXS5BA3610 - Shipping Weight:

213 lb

Furnace GD9T801005CX - Input (BTU/h):

100,000

Furnace GD9T801005CX - Output (BTU/h):

80,000

Furnace GD9T801005CX - AFUE:

80%

Furnace GD9T801005CX - Heating Stages:

Two Stage

Furnace GD9T801005CX - Blower Motor Type:

ECM Constant Torque

Furnace GD9T801005CX - Maximum Cooling Capacity (Tons):

Furnace GD9T801005CX - Configuration:

Downflow/Horizontal

Furnace GD9T801005CX - Cabinet Width:

21 in

Furnace GD9T801005CX - Vent Type:

Chimney / Category I

Furnace GD9T801005CX - Gas Type:

Propane Convertible

Furnace GD9T801005CX - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GD9T801005CX - Unit Dimensions (W x D x H):

21 in x 28 in x 19.5 in

Furnace GD9T801005CX - Shipping Weight:

131 lb

Evaporator Coil CAPTA4230C3 - Nominal Capacity (Tons):

3.5

Evaporator Coil CAPTA4230C3 - Cased/Uncased:

Cased

Evaporator Coil CAPTA4230C3 - Configuration:

Upflow/Downflow

Evaporator Coil CAPTA4230C3 - Cabinet Width:

21 in

Evaporator Coil CAPTA4230C3 - Metering Device:

TXV

Evaporator Coil CAPTA4230C3 - Refrigerant:

R-32

Evaporator Coil CAPTA4230C3 - Liquid Line Size:

3/8 in

Evaporator Coil CAPTA4230C3 - Suction Line Size:

7/8 in

System Type:

Gas Electric Split System

Cooling Capacity:

3 Ton / 36,000 BTU

Heating Output:

Approximately 80,000 BTU

Furnace Efficiency:

80% AFUE

Furnace Stages:

Two-Stage

Refrigerant / Orientation:

R-32 / Downflow

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
