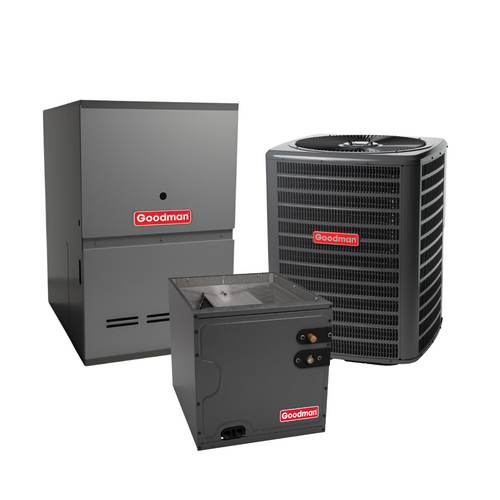

Goodman 5 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA6010 GD9S801005CX CAPTA6030C3

Goodman 5 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA6010 GD9S801005CX CAPTA6030C3

Name: Goodman 5 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA6010 GD9S801005CX CAPTA6030C3
Brand: Goodman
SKU: GLXS5BA6010-GD9S801005CX-CAPTA6030C3
Price: 6850 USD
Availability: InStock

Goodman

5 Star RatingLeave a review

No reviews yet Write a Review

SKU:: GLXS5BA6010-GD9S801005CX-CAPTA6030C3

Your Price $0.00

Detecting ZIP...

Est. Net Incentive Amount: $0.00

We could not detect your ZIP automatically. Enter your ZIP to check incentives.

Available Incentives

$0.00

Selected Incentives

Unpriced Programs

Estimates assume eligibility; programs and amounts can change.

Learn more about incentives

Goodman 5 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32, model GLXS5BA6010 GD9S801005CX CAPTA6030C3 - view 5

UPC:
Condition:: New
Width:: 48.00 (in)
Height:: 48.00 (in)
Depth:: 40.00 (in)

Questions about Goodman 5 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA6010 GD9S801005CX CAPTA6030C3?

SupplierGateway® Certified i

Minority-Owned • Small Business

View Certification

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$6,850.00

Overview

Goodman 5 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA6010 GD9S801005CX CAPTA6030C3

Product details

Description

The Goodman 5 Ton 15 SEER2 80% AFUE 100,000 BTU Gas Electric Air Conditioner Split System Downflow R-32 | GLXS5BA6010 GD9S801005CX CAPTA6030C3 (GLXS5BA6010 / GD9S801005CX / CAPTA6030C3) is a complete residential heating and cooling system built for reliable year-round comfort, pairing efficient R-32 cooling with dependable gas heating. This matched split system combines a 5-ton R-32 air conditioner condenser, cased evaporator coil, and 80% AFUE gas furnace to deliver consistent climate control in residential applications.

The included CAPTA6030C3 cased evaporator coil is designed for matched Goodman split-system operation and supports upflow / downflow installation configurations. Working together with the condenser and furnace, it provides efficient refrigerant flow, dependable heat transfer, and consistent system performance.

Built with Goodman’s proven HVAC components, ECM blower technology, R-32 refrigerant compatibility, and downflow installation flexibility, the GLXS5BA6010 / GD9S801005CX / CAPTA6030C3 system is a strong choice for replacement projects and new installations that need dependable heating and cooling performance.

Key Features

Complete Heating & Cooling System – Includes outdoor condenser, evaporator coil, and gas furnace
5 Ton Cooling Capacity – Provides 60,000 BTU cooling performance for residential applications
15 SEER2 Efficiency Rating – Helps improve cooling efficiency and reduce energy consumption
100,000 BTU Gas Furnace – Provides reliable heating capacity for residential comfort
80% AFUE Furnace Efficiency – Provides dependable fuel-to-heat performance
Single Stage Gas Furnace Operation – Delivers reliable heating operation
ECM Constant Torque Blower Motor – Helps improve airflow control and indoor comfort
R-32 Refrigerant Compatible – Uses modern, lower-GWP refrigerant technology

System Components Included

Goodman GLXS5BA6010 Air Conditioner Condenser

Capacity: 5 Ton / 60,000 BTU
Efficiency: 15 SEER2
Operation: Two Stage
Refrigerant: R-32
Compressor Type: Scroll
Voltage: 208/230V 1-Phase
Liquid Line: 3/8 in
Suction Line: 1-1/8 in
Application: Split Air Conditioning System

Goodman CAPTA6030C3 Evaporator Coil

Type: Cased Evaporator Coil
Capacity: 5 Ton
Configuration: Upflow / Downflow
Cabinet Width: 21"
Refrigerant: R-32
Metering Device: TXV
Line Sizes: 3/8 in liquid / 7/8 in suction
Application: Matched Indoor Coil

Goodman GD9S801005CX Gas Furnace

Heating Input: 100,000 BTU
Efficiency: 80% AFUE
Operation: Single Stage
Blower Motor: ECM Constant Torque
Configuration: Downflow / Horizontal
Heating Output: Approximately 80,000 BTU
Airflow: 2,000 CFM
Venting: Chimney / Category I
Fuel Type: Natural Gas (Propane Convertible)
Application: Residential Heating

Compatibility / Installation Notes

The Goodman GLXS5BA6010 GD9S801005CX CAPTA6030C3 System is designed for:

Residential Cooling Applications
Residential Gas Heating Applications
Downflow Furnace Installations
Horizontal Installation Options
Split HVAC System Applications
R-32 Refrigerant Systems
Replacement and New Construction Projects

Installation Notes

Verify compatibility with existing ductwork, electrical requirements, and gas connections before installation
Confirm airflow direction and furnace orientation before installation
Check refrigerant line sizing requirements
Ensure proper furnace venting according to local building codes
Installation should be completed by a qualified HVAC professional

Frequently Asked Questions

What is included in this Goodman HVAC system?
This package includes the GLXS5BA6010 air conditioner condenser, CAPTA6030C3 evaporator coil, and GD9S801005CX gas furnace.

What is the cooling capacity of this system?
The system provides 5 tons (60,000 BTU) of cooling capacity.

What is the furnace heating capacity?
The furnace provides 100,000 BTU input with 80% AFUE efficiency, producing approximately 80,000 BTU heating output.

What refrigerant does this system use?
The air conditioning system uses R-32 refrigerant.

Can this system be installed in a downflow configuration?
Yes. This system is designed for downflow installation applications with compatible indoor components.

Is this a complete HVAC system?
Yes. It includes the outdoor condenser, indoor evaporator coil, and gas furnace required for a complete gas-electric heating and cooling system.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Quick sizing snapshot

Enter your home size and a few basics to see a quick HVAC365 sizing snapshot you can review with a Professional.

Home size (sq ft)

Enter at least 100 sq ft.

Use conditioned square footage only; skip garages and unfinished basements.

Climate

We’ll auto-detect for U.S. visitors.

Home type

Select your home type.

Shared walls and insulation levels change the load—pick what matches your structure.

System type

Choose a system type.

Match the system to your ductwork, fuel, or preferred heat source for best comfort.

This is a sizing estimate for general guidance only. Always confirm final size, duct design, and fuel type with a Professional before purchasing equipment or pulling permits.

Brand:

Goodman

Width:

48.00 (in)

Height:

48.00 (in)

Depth:

40.00 (in)

Weight:

540.00 LBS

Energy Star Listed:

Operating Mode:

Cooling and Heating

Product Line:

GLXS5B Series

EER | Ground Water:

N/A

EER | Ground Loop:

N/A

Number of Burners:

Programmability:

Non Programmable

Product Category:

Gas Heating & Air Conditioner Bundle

Product Height:

34 in

Zones:

Safety Information:

⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Return Air Location:

Bottom

AHRI Certified:

Yes

Condenser Factory Precharge:

Factory Charged for 15 ft Line Set

Compressor Type:

Scroll

Air Conditioner Condenser Series:

2000

Configuration:

Downflow

EER:

12.0

Application:

Residential

Capacity (Tons):

Ambient Temperature Range (Cooling):

50°F to 115°F

AFUE:

80%

Cabinet Width (in):

Blower Motor Type:

ECM Constant Torque

Color:

Gray

AHRI Reference Number:

215381102

Airflow (CFM):

2,000

EER2:

11 EER2

Liquid Line Size:

3/8 in

Electrical Phase:

1-Phase

Heating Stages:

Single Stage

Heating Input (BTU):

100,000 - 149,000 BTU

Line Set Connection Type:

Braze

Electrical Frequency:

60 Hz

Unit Weight:

201.5 lb

Prop 65 Warning:

Yes

Vent Type:

Chimney / Category I

Refrigerant Type:

R-32

SEER2:

15 SEER2

Shipping Weight:

216.5 lb

Cooling Capacity (BTU) (delete 2):

60000

Type:

Gas Furnace and Air Conditioner Split System

Maximum Overcurrent Protection (MOP):

Product Width:

21 in

DOE Regional Compliance:

Nationwide

Compressor Stages:

Two Stage

Voltage / Phase:

208/230V 1-Phase

Condenser GLXS5BA6010 - Nominal Capacity (Tons):

Condenser GLXS5BA6010 - Cooling Capacity (BTU/h):

60,000

Condenser GLXS5BA6010 - Refrigerant:

R-32

Condenser GLXS5BA6010 - Voltage/Phase/Hz:

208-230 V / 1 Ph / 60 Hz

Condenser GLXS5BA6010 - Minimum Circuit Ampacity (MCA):

36.4 A

Condenser GLXS5BA6010 - Maximum Overcurrent Protection (MOP):

60 A

Condenser GLXS5BA6010 - Compressor Type:

Scroll

Condenser GLXS5BA6010 - Compressor Stages:

Two Stage

Condenser GLXS5BA6010 - Liquid Line Size:

3/8 in

Condenser GLXS5BA6010 - Suction Line Size:

1-1/8 in

Condenser GLXS5BA6010 - Sound Level (dB):

Condenser GLXS5BA6010 - Unit Dimensions (W x D x H):

35.5 in x 35.5 in x 36.5 in

Condenser GLXS5BA6010 - Unit Weight:

249 lb

Condenser GLXS5BA6010 - Shipping Weight:

309 lb

Furnace GD9S801005CX - Input (BTU/h):

100,000

Furnace GD9S801005CX - Output (BTU/h):

80,000

Furnace GD9S801005CX - AFUE:

80%

Furnace GD9S801005CX - Heating Stages:

Single Stage

Furnace GD9S801005CX - Blower Motor Type:

ECM Constant Torque

Furnace GD9S801005CX - Maximum Cooling Capacity (Tons):

Furnace GD9S801005CX - Configuration:

Downflow/Horizontal

Furnace GD9S801005CX - Cabinet Width:

21 in

Furnace GD9S801005CX - Vent Type:

Chimney / Category I

Furnace GD9S801005CX - Gas Type:

Propane Convertible

Furnace GD9S801005CX - Voltage/Phase/Hz:

115 V / 1 Ph / 60 Hz

Furnace GD9S801005CX - Unit Dimensions (W x D x H):

21 in x 28 in x 33.375 in

Furnace GD9S801005CX - Shipping Weight:

115 lb

Evaporator Coil CAPTA6030C3 - Nominal Capacity (Tons):

Evaporator Coil CAPTA6030C3 - Cased/Uncased:

Cased

Evaporator Coil CAPTA6030C3 - Configuration:

Upflow/Downflow

Evaporator Coil CAPTA6030C3 - Cabinet Width:

21 in

Evaporator Coil CAPTA6030C3 - Metering Device:

TXV

Evaporator Coil CAPTA6030C3 - Refrigerant:

R-32

Evaporator Coil CAPTA6030C3 - Liquid Line Size:

3/8 in

Evaporator Coil CAPTA6030C3 - Suction Line Size:

7/8 in

Cooling Capacity (BTU):

60,000

Model Combination:

GLXS5BA6010 / GD9S801005CX / CAPTA6030C3

System Type:

Gas Electric Split System

Cooling Capacity:

5 Ton (60,000 BTU)

Heating Output:

Approximately 80,000 BTU

Heating Efficiency:

80% AFUE

Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.
