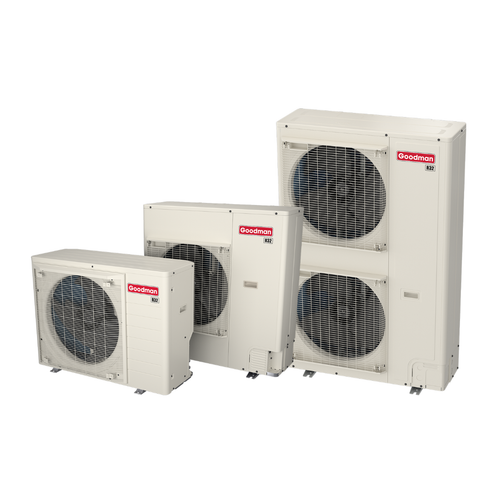

Goodman 5 Ton Variable-Speed Inverter Air Conditioner Condenser, Up to 19 SEER2, R-32, 208/230V 1-Phase | GXV9SA6010

Goodman

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
GXV9SA6010
Your Price $0.00

Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
Condition:
New
Width:
37.00 (in)
Height:
56.31 (in)
Depth:
12.63 (in)

Questions about Goodman 5 Ton Variable-Speed Inverter Air Conditioner Condenser, Up to 19 SEER2, R-32, 208/230V 1-Phase | GXV9SA6010?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$6,567.00

  • Qualifies for FREE Shipping
32 in stock • Ships in 2-3 Business Days
Overview

Goodman 5 Ton Variable-Speed Inverter Air Conditioner Condenser, Up to 19 SEER2, R-32, 208/230V 1-Phase | GXV9SA6010

Goodman GXV9S 5 ton air conditioner condenser | GXV9SA6010
Product details

Description

Product Summary

The Goodman GXV9SA6010 is a 5-ton GXV9S Series variable-speed inverter air conditioner condenser for R-32 split systems, rated up to 57,000 BTU/h of cooling. The series reaches up to 19 SEER2 with matched indoor equipment.

An inverter-driven swing compressor modulates capacity to match the load, and the unit runs on 208/230V single-phase power (MCA 34.4 A, MOP 40 A). Goodman lists the AHVE60DP1300 variable-speed air handler as a match.

Key Features

  • Inverter compressor: variable-speed capacity for steady temperatures and humidity control.
  • Up to 19 SEER2: high-efficiency cooling with matched components.
  • R-32 refrigerant: lower-GWP refrigerant.
  • Hurricane rated: meets 2023 Florida Building Code unit integrity requirements when properly anchored.
  • Matched systems: pairs with Goodman AHVE air handlers and R-32 coils.

Ideal Applications

  • Residential central AC replacements
  • High-efficiency new construction
  • Coastal and hurricane-zone homes (with anchor kit)
  • Rebate-eligible system upgrades

Frequently Asked Questions

What indoor unit should I pair it with?

Goodman lists the AHVE60DP1300 as a matched air handler. Use AHRI matchups to confirm ratings.

Is it a heat pump?

No. This is a cooling-only air conditioner condenser.

What refrigerant does it use?

R-32.

What breaker size is needed?

Maximum overcurrent protection is 40 A with an MCA of 34.4 A.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Goodman
Width:
37.00 (in)
Height:
56.31 (in)
Depth:
12.63 (in)
Weight:
271.00 LBS
Capacity (Tons):
5
SEER2:
19 SEER2
Compressor Stages:
Variable Speed
Refrigerant Type:
R-32
Voltage / Phase:
208/230V 1-Phase
Cooling Capacity (BTU):
60,000
Model Number:
GXV9SA6010
Product Line:
GXV9S
Nominal Capacity:
5 tons
Max Cooling (AHRI rated):
57,000 BTU/h
Efficiency:
Up to 19 SEER2 (series, system dependent)
Compressor:
Variable-speed inverter swing compressor
Minimum Circuit Ampacity (MCA):
34.4 A
Maximum Overcurrent Protection (MOP):
40 A
Equipment Weight:
236 lb
Shipping Weight:
271 lb
Matching Indoor Unit (listed):
AHVE60DP1300
Listings:
AHRI Certified, ETL Listed
Designed for:
R32 Refrigerant
Electrical Phase:
1-Phase
Electrical Frequency:
60 Hz
Product Height:
56.312 in
Product Width:
37 in
Product Depth:
22.625 in
Energy Star Listed:
No
DOE Regional Compliance:
Nationwide
Product Category:
Air Conditioner Condenser
EER2:
10 EER2
Compressor Type:
Inverter
Sound Level (dB):
77
Suction Line Size:
7/8 in
Discharge:
Side
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Unit Replacement & 10 Years Parts | Registration Required within 60 Days of Installation
Videos8 videos
Goodman SD Side Discharge Inverter System
Frequently asked questions
What size is the ?
The is a 5 ton unit.
What is the SEER2 rating of the ?
The is rated at 19 SEER2 SEER2.
What refrigerant does the use?
It uses R-32 refrigerant.
What power supply does the need?
It requires 208/230V 1-Phase power.
How much cooling does the provide?
It is rated for 60,000 BTU of cooling.
What warranty comes with the GXV9SA6010?
10 Years Unit Replacement & 10 Years Parts | Registration Required within 60 Days of Installation
Who makes the GXV9SA6010?
The GXV9SA6010 is made by Goodman.
