Description
Product Summary

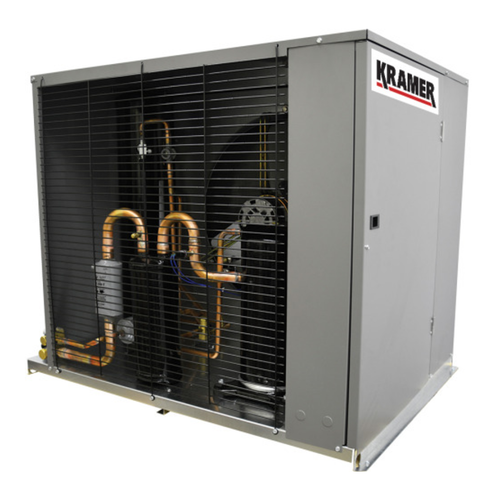

The Kramer KFH200L44DA is a 2 HP low temp hermetic reciprocating air-cooled condensing unit from the Next-Gen MiniCon (K-Series) line. It is wired for 208/230V 1-phase 60 Hz power.
It is built for refrigeration contractors, walk-in manufacturers and facility owners who need a compact, weather-resistant air-cooled unit for indoor or outdoor installation.
Approved refrigerants: R-404A. Pair it with a matching evaporator sized to the box load; contact HVAC365 for a system match.
Key Features
- 2 HP Hermetic Reciprocating Compressor: sized for low temp walk-in duty
- Refrigerant: approved for R-404A
- Integral Liquid Subcooling: factory subcooling circuit improves capacity and expansion valve feed
- Service-Friendly Cabinet: galvanized painted housing, large hinged electrical panel and base-mounted shut-off valves
- Rated to 110°F Ambient: standard units are rated for operation up to 110°F outdoor air
Specifications
| Brand | Kramer |
|---|---|
| Model | KFH200L44DA |
| Series | Next-Gen MiniCon (K-Series) |
| Product Type | Condensing Unit |
| Horsepower | 2 HP |
| Temperature Application | Low Temp |
| Compressor Type | Hermetic Reciprocating |
| Condenser Type | Air-Cooled |
| Installation | Indoor/Outdoor |
| Refrigerants | R-404A |
| Voltage / Phase | 208/230V / 1-Phase / 60 Hz |
| Warranty | 1 Year Parts from Installation or 18 Months from Shipment, Whichever Comes First (Manufacturer Warranty) |
Ideal Applications
- Walk-in freezers for restaurants and commercial kitchens
- Convenience store and grocery freezer boxes
- Ice cream and frozen food storage
- School, hospital and institutional freezers
- Replacement condensing units for existing walk-in freezer systems
Frequently Asked Questions
What refrigerant does the KFH200L44DA use?
The KFH200L44DA is approved for R-404A.
What power supply does the KFH200L44DA need?
It requires 208/230V 1-phase 60 Hz power. Confirm MCA and MOP on the unit data plate before sizing the circuit.
Is the KFH200L44DA for a walk-in cooler or freezer?
It is a low-temperature unit for walk-in freezers and other boxes held below freezing.
What evaporator should I pair with it?
Choose an evaporator rated for the same refrigerant and temperature application with capacity matched to the condensing unit at your design suction temperature. HVAC365 can help match the right evaporator to this unit.
