Description
Product Summary

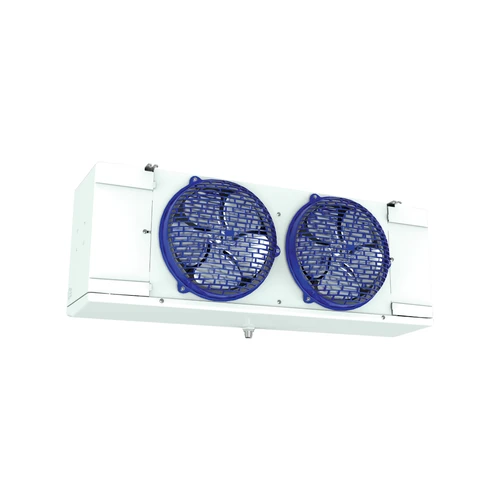

The Larkin LEL0380AY6AMAG0212 is a 38,000 BTU/h nominal low profile walk-in unit cooler from the Larkin LEL series by Heatcraft Refrigeration Products. It is a air defrost model with 2-speed ec motors and a 6 FPI coil, built for walk-in coolers held at 34°F and above.
Published ratings for this size include 44,400 BTU/h on R-448A at 10°F TD / 25°F SST and 44,800 BTU/h on R-454A. The unit runs on 115V 1-Phase power, moves 3,660 CFM through 6 fans.
This A2L/HFC (Y) version is rated for low-GWP A2L refrigerants R-454A, R-454C and R-455A as well as common HFC blends. It ships with the G0212 package: A2L preferred package: refrigerant detection system (RDS) plus intelliGen controller, set up for R-454A.
Key Features
- Low Profile Cabinet: about 16-7/16 in. tall housing saves headroom in low-ceiling walk-in boxes
- 2-Speed EC Motor: electronically commutated fan motors cut fan energy versus PSC motors and can run at reduced speed when the system is satisfied
- Air Defrost: off-cycle air defrost for rooms above freezing
- Multi-Refrigerant Ratings: published capacities for R-404A, R-448A, R-449A, R-454A, R-454C, R-455A
- 6 FPI Coil: fin spacing sized for frost-tolerant walk-in operation
- DOE AWEF Compliant Platform: part of the Larkin low profile line documented as meeting DOE minimum AWEF requirements
- RDS and intelliGen Controller: A2L preferred package: refrigerant detection system (RDS) plus intelliGen controller, set up for R-454A
Specifications
| Model | LEL0380AY6AMAG0212 |
|---|---|
| Brand / Series | Larkin LEL Low Profile Unit Cooler |
| Nominal Capacity | 38,000 BTU/h (model code) |
| Capacity R-404A (10°F TD / 25°F SST) | 37,000 BTU/h |
| Capacity R-448A/R-449A (10°F TD / 25°F SST) | 44,400 BTU/h |
| Capacity R-454A (10°F TD / 25°F SST) | 44,800 BTU/h |
| Capacity R-454C (10°F TD / 25°F SST) | 36,900 BTU/h |
| Capacity R-455A (10°F TD / 25°F SST) | 48,000 BTU/h |
| Defrost | Air Defrost |
| Application | Cooler (medium temperature) |
| Fan Motors | EC 2-Speed |
| Number of Fans | 6 |
| Airflow | 3,660 CFM |
| Fins Per Inch | 6 |
| Fan Motor HP (each) | 1/20 |
| Electrical | 115V 1-Phase 60 Hz |
| Coil Inlet Connection | 1/2 in. OD |
| Suction Connection | 1-1/8 in. OD |
| Drain Connection | 3/4 MPT in. |
| Dimensions (L x D x H) | 109-1/2 x 13-1/4 x 16-7/16 in. |
| Net Weight (est.) | 137 lb |
| Refrigerants | R-404A, R-448A, R-449A, R-454A, R-454C, R-455A (A2L/HFC rated) |
| Factory Option Package | G0212: A2L preferred package: refrigerant detection system (RDS) plus intelliGen controller, set up for R-454A |
Ideal Applications
- Walk-in coolers for restaurants and commercial kitchens
- Convenience store and grocery walk-ins
- Floral, produce and beverage coolers
- School, hospital and institutional food storage
Frequently Asked Questions
What refrigerants can the Larkin LEL0380AY6AMAG0212 use?
It is rated for R-404A, R-448A, R-449A, R-454A, R-454C, R-455A. Confirm the refrigerant matches your condensing unit and expansion valve before installation.
Is the LEL0380AY6AMAG0212 for a cooler or a freezer?
It is an air defrost unit for medium temperature coolers (room temperature above freezing).
What power supply does it need?
The unit is wired for 115V 1-Phase 60 Hz.
What condensing unit should I pair with it?
Match the condensing unit capacity to the evaporator capacity at your design suction temperature, such as a Larkin LCH medium temperature condensing unit. HVAC365 can help you size a matched system.
What does the option package include?
Package G0212 is the A2L preferred package: refrigerant detection system (RDS) plus intelliGen controller, set up for R-454A.
