Product Summary

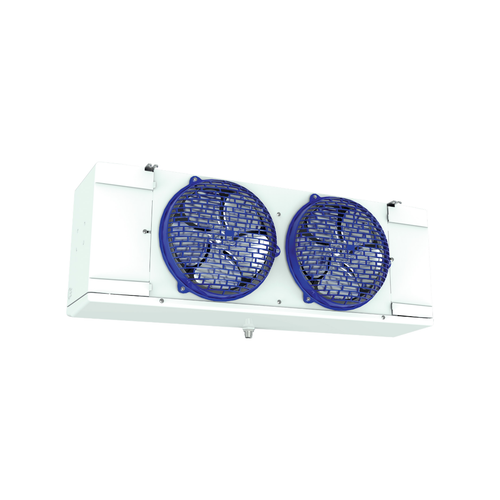

The Larkin LEL0080BS6EEAB0400 is a 8,000 BTU/h nominal low profile walk-in unit cooler from the Larkin LEL series by Heatcraft Refrigeration Products. It is a electric defrost model with 1-speed ec motors and a 6 FPI coil, built for walk-in freezers, with dual ratings that also allow cooler use.
Published ratings for this size include 8,400 BTU/h on R-448A at 10°F TD / -20°F SST. The unit runs on 208/230V 1-Phase power, moves 1,371 CFM through 2 fans.
This HFC (S) version is rated for R-404A, R-448A, R-449A and the R-407 series. It ships with the B0400 package: option package B0400.
Key Features
- Low Profile Cabinet: about 16-7/16 in. tall housing saves headroom in low-ceiling walk-in boxes
- 1-Speed EC Motor: electronically commutated fan motors cut fan energy versus PSC motors
- Electric Defrost: factory electric defrost heaters (2,100 W) for freezer duty
- Multi-Refrigerant Ratings: published capacities for R-404A, R-448A, R-449A
- 6 FPI Coil: fin spacing sized for frost-tolerant walk-in operation
- DOE AWEF Compliant Platform: part of the Larkin low profile line documented as meeting DOE minimum AWEF requirements
- Option Package B0400: option package B0400
Ideal Applications
- Walk-in freezers for restaurants and commercial kitchens
- Convenience store and grocery freezers
- Ice cream and frozen food storage
- School, hospital and institutional frozen storage
Frequently Asked Questions
What refrigerants can the Larkin LEL0080BS6EEAB0400 use?
It is rated for R-404A, R-448A, R-449A. Confirm the refrigerant matches your condensing unit and expansion valve before installation.
Is the LEL0080BS6EEAB0400 for a cooler or a freezer?
It is an electric defrost unit intended for freezers and is dual rated, so it can also be applied to coolers.
What power supply does it need?
The unit is wired for 208/230V 1-Phase 60 Hz. Electric defrost heaters draw significant current, so size the circuit per the nameplate.
What condensing unit should I pair with it?
Match the condensing unit capacity to the evaporator capacity at your design suction temperature, such as a Larkin LCH low temperature condensing unit. HVAC365 can help you size a matched system.
What does the option package include?
Package B0400 is the option package B0400.
