Description
Overview

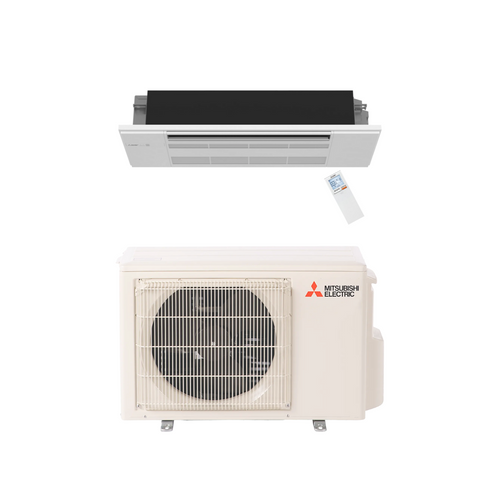

This bundled Mitsubishi Electric system pairs a MLZ-KX12NL ceiling cassette indoor unit with a SUZ-AA12NL heat pump outdoor unit for single-zone comfort. Rated cooling capacity is 11,300 Btu/h with a modulation range down to 2,900 Btu/h, and rated heating capacity is 14,600 Btu/h at 47°F with a 5,000 Btu/h minimum. Efficiency ratings include 20.7 SEER2, 11.8 EER2, and 10 HSPF2 (IV), supporting high-efficiency operation where these metrics are required. The system uses R454B refrigerant and operates on 208/230V, single-phase, 60 Hz power. This bundle may be listed under either MLZ-KX12NL-SUZ-AA12NL or SUZ-AA12NL-MLZ-KX12NL while providing the same indoor and outdoor equipment combination.
Performance
Cooling output is rated at 11,300 Btu/h at 95°F outdoor conditions, with 950 W rated power input and 2.6 pints/h moisture removal for humidity management. Heating performance includes 9,600 Btu/h at 17°F, 7,700 Btu/h at 5°F, and 6,400 Btu/h at −4°F to support cold-weather operation. The outdoor unit uses an inverter-driven, twin rotary compressor with Pulse Amplitude Modulation control for capacity matching at the set point. Outdoor heat exchanger features include high-performance grooved piping and Blue Fin coating to support heat transfer and corrosion resistance. Indoor airflow is delivered through four fan-speed steps, providing 212–332 CFM in cooling and 212–350 CFM in heating for balanced distribution.
Smart Features
Wi‑Fi enabled operation connects to the Comfort app for control of temperature, fan speeds, modes, and scheduling from a mobile device. A Weekly Timer function allows programmed ON/OFF times and set temperatures to match daily routines and reduce unnecessary runtime. Control support includes the provided hand-held remote controller plus options for wired and wireless controllers and third-party interfaces. A thermostat interface is available for integrating select third-party thermostats when an external thermostat workflow is preferred. Because the outdoor unit powers the indoor unit, the system can automatically restart operation after a power outage when power returns.
Comfort & Noise
Auto Vane Control adjusts outlet vane direction left-to-right and up-and-down for targeted throw and reduced drafts. Indoor sound pressure levels are as low as 27 dB(A) in cooling and 26 dB(A) in heating, increasing by fan speed up to 40 dB(A). Outdoor sound pressure levels are 49 dB(A) in cooling and 51 dB(A) in heating for exterior placement planning. Econo Cool automatically adjusts airflow based on heat exchanger temperature and slightly raises the set temperature to reduce energy use while maintaining comfort. Hot-Start Technology delays fan operation at the start of heating until the heat exchanger warms to help prevent cool air discharge on start-up.
Use Case Fit
The MLZ-KX12NL ceiling cassette format is designed to fit between 16-inch joist spacing, supporting retrofit and new construction applications. Single-zone design connects one outdoor unit to one indoor unit, making it suitable for bedrooms, living areas, additions, and small commercial suites. Maximum refrigerant piping length is 65 ft with up to 40 ft height difference and up to 10 bends, supporting flexible outdoor placement. Outdoor operating range supports cooling with outdoor intake air temperatures from 115°F down to 14°F and heating down to −4°F. Flared piping connections use 1/4-inch liquid and 3/8-inch gas line sizes for streamlined field connection to standard mini-split linesets.
Value & Reliability
Blue Fin coating on the outdoor heat exchanger and Sea Coast treatment support durability in coastal and industrial airborne conditions. The indoor unit is serviceable from the bottom for electrical and flare connections, supporting faster access during commissioning and service. A built-in condensate lift mechanism provides 19.6 inches of lift to help route condensate without a separate pump in many ceiling applications. Electrical requirements include 14 AWG recommended indoor-to-outdoor wiring and a 15 A recommended outdoor fuse/breaker size on 208/230V single-phase power. DC fan motors and the inverter drive work together to regulate airflow and capacity smoothly as load conditions change.
Summary Wrap-Up
This Mitsubishi ceiling cassette heat pump bundle delivers single-zone cooling and heating with inverter modulation and R454B refrigerant. It combines a compact, joist-bay-friendly indoor cassette with a high-efficiency outdoor platform that includes Blue Fin protection and reverse-cycle defrost. Wi‑Fi Comfort app control, weekly scheduling, and multiple controller options support both homeowner convenience and contractor flexibility. Quiet indoor operation and adjustable vane control help maintain comfort without excessive draft or sound in occupied spaces. For D2C buyers and wholesale purchasers, this bundle offers a complete indoor/outdoor system with defined capacities, electrical requirements, and piping limits for straightforward selection.
Key Features
- Single-zone heat pump system: Pairs one MLZ-KX12NL indoor unit with one SUZ-AA12NL outdoor unit to condition a single space with cooling and heating.
- Inverter-driven twin rotary compressor: Modulates capacity to maintain set point operation, supported by Pulse Amplitude Modulation control.
- Ceiling cassette indoor format: Fits between 16-inch joist spacing and provides four-step airflow up to 332 CFM in cooling and 350 CFM in heating.
- Wi‑Fi and controller options: Supports Comfort app control, weekly timer scheduling, and operation via hand-held, wired, wireless, and interface-based controls.
- Built-in condensate lift mechanism: Provides 19.6 inches of lift to support condensate routing from ceiling installations.
- Blue Fin coated outdoor heat exchanger: Applies anti-corrosion treatment to fins and uses grooved piping for heat exchange performance.
- Piping and operating range flexibility: Supports up to 65 ft piping length, 40 ft height difference, cooling down to 14°F, and heating down to −4°F outdoor intake air.
Replaces Discontinued Models
- SUZ-AA12NL replaces: MUF12EN, MUF12EN2, SUZ-KA12NA, SUZ-KA12NA2, SUZ-KA12NAR1
- MLZ-KX12NL replaces: MLZ-KP12NA, MLZ-KP12NA2
Replacement matches are based on unit type, capacity and features. Verify line set, electrical supply and controls before ordering. See the discontinued Mitsubishi model cross-reference for details and original manuals.
