Description

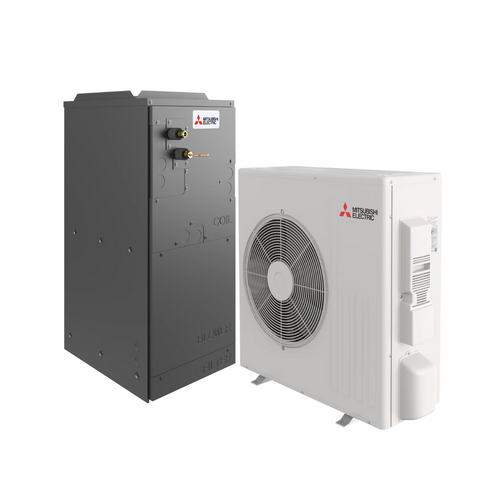

This Mitsubishi Electric intelli-AIR ducted heat pump pairing matches the PUZ-AK42NL outdoor unit with the PVA-AA42NL multi-position air handler. It’s designed for buyers who need higher-output ducted comfort with smooth modulation and strong performance headroom. The PVA air handler supports horizontal left, horizontal right, upflow, and downflow configurations to fit a wide range of mechanical layouts. This is a one-to-one pairing, which keeps the product selection clean and the performance story consistent for pros and property managers. The “NL” platform is part of Mitsubishi Electric’s low-GWP R-454B (A2L) equipment generation for modern compliance and forward compatibility. The air handler includes built-in control inputs for accessories like a humidifier, ERV, and auxiliary heat. If the customer wants a premium ducted system that reads serious and performs with authority, this pairing is built for that conversation.
Cooling performance is rated at 42,000 BTU/h, with a listed maximum cooling capacity of 44,000 BTU/h. That capacity is aimed at larger single-zone ducted applications where even airflow and steady temperature matter. Moisture removal is listed at 12.5 pints per hour, supporting comfort when humidity loads are high. Modulation helps the system maintain setpoint more steadily instead of running like an all-or-nothing machine. That steadier control can help a large space feel balanced, not patchy and uneven. For buyers comparing larger systems, verified capacity data is what separates a confident purchase from hesitation. When the numbers are clear, customers tend to keep reading and move toward buying.
Heating is rated at 48,000 BTU/h at 47°F, with a listed maximum heating capacity of 49,700 BTU/h at 47°F. Heating at 17°F is listed at 29,600 BTU/h, giving a strong cold-weather reference point. For low outdoor temperatures, maximum heating capacity at 5°F is listed at 25,400 BTU/h. The published COP at 47°F is 3.8, supporting an efficiency-forward heating story in typical heating conditions. This is the kind of verified heating profile that helps customers feel safe choosing a heat pump for a larger ducted space. The one-to-one match keeps the system story simple even at higher capacities. If the buyer wants strong ducted heating capability without giving up efficiency, this pairing is positioned to close.
Air delivery is engineered for high airflow and real duct resistance. The PVA air handler offers selectable external static pressures of 0.30, 0.50, or 0.80 in. w.g., helping it fit a broad range of duct designs. Airflow at cooling (dry) is listed at 1,040, 1,262, or 1,485 CFM depending on fan setting. It uses an ECM fan motor designed for efficient airflow control and smoother ramping at higher volumes. Indoor sound pressure levels at cooling are listed at 45, 48, or 52 dB(A), giving useful context for customers planning mechanical room placement. The cabinet uses a blow-through positive-pressure design with 1-inch R4.2 fiberglass-free insulation. Cabinet air leakage is listed at less than 2% at 1.0 in. w.g., which supports better delivered comfort through the duct system.
Efficiency and long-term operating cost are still major drivers, even at higher capacities. SEER2 is listed at 19.1, HSPF2 is listed at 9.4, and EER2 is listed at 11.1. Those ratings help buyers compare value across larger ducted system options. The cabinet uses corrosion-resistant Black ZAM material to support durability in humid and coastal environments. Power is listed for 208/230V, single-phase, 60 Hz, which aligns with common electrical standards in this category. Recommended outdoor fuse/breaker size is listed at 35 A, helping pros plan electrical scope early. If the customer wants high-output ducted comfort on a modern A2L-ready platform with verified specs, this pairing earns the premium position.
Key Features
-
Matched ducted heat pump pairing: PUZ-AK42NL outdoor unit paired one-to-one with PVA-AA42NL multi-position air handler for consistent performance.
-
Rated cooling capacity: 42,000 BTU/h rated cooling with 44,000 BTU/h maximum cooling capacity for larger ducted single-zone needs.
-
Humidity support: 12.5 pints per hour moisture removal listed for better comfort under higher humidity loads.
-
Rated heating capacity: 48,000 BTU/h rated at 47°F with 49,700 BTU/h maximum at 47°F and 29,600 BTU/h listed at 17°F.
-
Low-temperature heating reference: 25,400 BTU/h maximum heating capacity listed at 5°F to support cold-weather planning.
-
Duct and airflow capability: Selectable 0.30/0.50/0.80 in. w.g. external static pressure with airflow listed at 1,040/1,262/1,485 CFM (cooling, dry).
-
Published efficiency ratings: 19.1 SEER2, 9.4 HSPF2, 11.1 EER2, and 3.8 COP at 47°F for clear comparison and ROI framing.
