Description
Overview

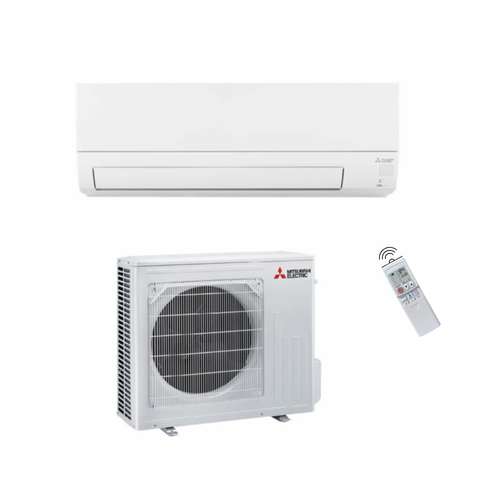

This bundled Mitsubishi Electric system pairs the MSZ-FX06NL wall-mounted indoor unit with the MUZ-FX06NLHZ hyper-heating inverter outdoor unit for ductless heating and cooling. It is a 6,000 Btu/h class system with rated cooling capacity of 6,000 Btu/h and rated heating capacity of 9,000 Btu/h at 47°F. The outdoor unit uses R454B refrigerant and comes factory charged with 2 lb 10 oz, supporting up to 25 ft of pre-charged piping. Efficiency ratings listed for this system include 35 SEER2, 21.45 EER2, and 13 HSPF2 [IV], and it is ENERGY STAR® certified. Power is 208/230V, 1 phase, 60 Hz with a guaranteed voltage range of 187–253V. This combination is designed to deliver zone-level comfort with a slim wall-mounted indoor unit and cold-weather heating capability.
Performance
The inverter-driven outdoor unit modulates capacity to match load, with cooling output ranging from 1,700 to 14,000 Btu/h and heating output up to 20,000 Btu/h at 47°F. At 17°F, the system lists 6,000 Btu/h rated heating and up to 14,400 Btu/h maximum heating capacity, helping maintain comfort as outdoor temperatures drop. For low-ambient operation, the outdoor unit lists maximum heating capacities of 10,500 Btu/h at -5°F, 9,000 Btu/h at -10°F, and 7,400 Btu/h at -22°F. The outdoor section uses a twin rotary compressor and reverse-cycle defrost to maintain heat transfer during winter operation. Airflow is provided by a DC fan motor indoors and outdoors, with the outdoor airflow rated at 1,815 CFM (cooling) and 1,321 CFM (heating). Together, these components support variable-capacity operation across seasons while staying within standard 208/230V electrical service.
Smart Features
Control flexibility is built into the indoor unit with multiple control options including a back-lit handheld remote controller (provided), the Comfort app, third-party interfaces, and wired or wireless controllers. Wi-Fi functionality is included for app-based temperature control, fan speeds, operating modes, schedules, and other settings. A built-in 3D i-see Sensor® scans the space to build a thermal profile and can adjust airflow and temperature based on detected conditions and occupancy. Econo Cool automatically adjusts airflow based on heat exchanger temperature and can raise the set temperature slightly while maintaining comfort. Powerful Mode temporarily changes set point and fan speed to reach the target temperature faster. Smart Dry+ mode provides humidity control with minimal over-cooling when dehumidification is needed.
Comfort & Noise
The indoor unit offers multiple fan speed options (Low, Medium, High, Powerful, Auto) to tune airflow for different comfort needs. Indoor airflow rates are listed up to 420 CFM (cooling, dry) and up to 477 CFM (heating, dry), supporting steady air distribution in a single zone. Dual Vane airflow uses two independently set vanes to direct air across wider areas or toward different locations in the space. Sound pressure levels for the indoor unit are listed as low as 20 dB(A) in both cooling and heating, depending on fan speed. The outdoor unit sound pressure level is listed at 47 dB(A) in cooling and 48 dB(A) in heating. Hot-start technology is included so the fan only blows once the heat exchanger has warmed, reducing cold drafts during heating start-up.
Use Case Fit
This system is suited for ductless heating and cooling where a wall-mounted indoor unit is preferred and outdoor placement can accommodate the listed condenser dimensions of 31.50 x 11.25 x 28.13 in (W x D x H). The hyper-heating inverter outdoor unit is specified for operation with guaranteed heating down to -22°F, supporting applications in cold-climate regions. Cooling operating limits list intake air temperatures from 115°F down to 14°F, supporting shoulder-season cooling where needed. Line set flexibility includes flared 1/4 in liquid and 3/8 in gas connections with up to 65 ft maximum piping length and up to 40 ft maximum height difference. These specifications make it a practical option for single-zone retrofits, additions, and targeted comfort upgrades in residential or light commercial spaces. The system’s 208/230V, single-phase power requirement aligns with common North American electrical service.
Value & Reliability
Indoor air path cleanliness is supported by Dual Barrier Coating on the heat exchanger and Dual Barrier Fusion on the vanes to reduce contaminant buildup and support stable airflow over time. Triple Action Filtration includes standard microparticle and electrostatic enzyme filters, with an optional carbon-based deodorizing filter for odor control. Outdoor coil protection includes Blue Fin Coating applied to aluminum fins to resist corrosion from salt, sulfur, and other airborne contaminants, supporting coastal or industrial environments. A built-in base pan heater is included in the outdoor unit to support winter operation in freezing conditions. Electrical characteristics include a short-circuit current rating (SCCR) of 5 kA and a recommended outdoor fuse/breaker size of 15A. Across both units, DC motor components support variable-speed operation with controllable airflow and sound performance.
Summary Wrap-Up
The MUZ-FX06NLHZ-MSZ-FX06NL bundle combines a wall-mounted indoor unit with a hyper-heating inverter outdoor unit to deliver ductless comfort in a single-zone format. Rated system performance includes 6,000 Btu/h cooling and 9,000 Btu/h heating at 47°F, with efficiency ratings of 35 SEER2 and 13 HSPF2 [IV]. Cold-weather capability is supported by listed heating output at low ambient temperatures down to -22°F and features such as reverse-cycle defrost and a built-in base pan heater. Comfort and control features include Wi-Fi app operation, a back-lit handheld remote, multiple fan speeds, and a built-in 3D i-see Sensor® for occupancy-aware adjustments. Technical installation planning is supported by published piping sizes, length limits, and a factory R454B refrigerant charge. For both direct-to-consumer and wholesale buyers, this combination offers a wall-mounted solution with published efficiency, sound, and cold-climate performance metrics.
Key Features
- Rated capacity range: Provides 6,000 Btu/h rated cooling with capacity modulation from 1,700 to 14,000 Btu/h, and 9,000 Btu/h rated heating at 47°F with up to 20,000 Btu/h maximum heating capacity at 47°F.
- Hyper-heating inverter operation: Maintains 100% heating capacity at -10°F with guaranteed operation down to -22°F for cold-climate applications.
- Efficiency ratings: Lists 35 SEER2, 21.45 EER2, and 13 HSPF2 [IV], and is ENERGY STAR® certified.
- Twin rotary compressor: Uses a twin rotary compressor with inverter drive and reverse-cycle defrost for variable-capacity heating and cooling.
- Wi-Fi and control options: Supports Comfort app control plus a back-lit handheld remote controller (provided), wired or wireless controllers, and third-party interfaces.
- Airflow and sound levels: Delivers indoor airflow up to 420 CFM cooling and 477 CFM heating with indoor sound levels down to 20 dB(A), and outdoor sound levels of 47 dB(A) cooling and 48 dB(A) heating.
- R454B refrigerant and piping limits: Uses R454B with a 2 lb 10 oz factory charge, supports up to 25 ft of pre-charged piping, and allows up to 65 ft maximum piping length with 1/4 in liquid and 3/8 in gas flared connections.
Replaces Discontinued Models
- MUZ-FX06NLHZ replaces: MUZ-FH06NA, MUZ-FH06NAH, MUZ-FS06NA, MUZ-FS06NAH
- MSZ-FX06NL replaces: MSZ-FH06NA, MSZ-FS06NA
Replacement matches are based on unit type, capacity and features. Verify line set, electrical supply and controls before ordering. See the discontinued Mitsubishi model cross-reference for details and original manuals.
