Description
Product Summary
The NAVAC NEF6LM BreakFree Power Flaring Tool makes accurate 45° flares on copper tubing from 1/4" through 3/4" O.D. far faster than a manual flaring tool. At just 2.9 lb, this second-generation design is light enough for one-hand operation in attics, on rooftops and on ladder-mounted line sets.
A 7.4V lithium battery produces over 100 flares per charge with a 30-minute quick charge. A limit baffle controls flare depth for consistent, R410A-rated results, and the kit includes NAVAC's NFG1 flare gauge to verify every flare.
Key Features
- One-Button Operation: Single-trigger, one-hand flaring.
- Ultra Light: 2.9 lb tool weight reduces fatigue overhead and on ladders.
- Long Runtime: Over 100 flares per charge with a 30-minute quick charge.
- Consistent Flare Depth: Limit baffle sets depth for repeatable 45° flares suited to R410A.
- Quick-Connect Clamps: Five flare dies swap quickly between sizes.
- Battery Indicator and LED Light: Monitor charge and light the work area.
- Flare Gauge Included: NFG1 gauge checks flare dimensions on site.
Specifications
| Brand | NAVAC |
|---|---|
| Model | NEF6LM |
| Type | Cordless Power Flaring Tool |
| Tubing Type | Copper |
| Tube O.D. | 1/4", 3/8", 1/2", 5/8", 3/4" (5/16" clamp sold separately) |
| Flare Angle | 45° |
| Power | 7.4V, 2Ah, 14.8Wh |
| Battery Type | Li-ion, 1 pc (NBF2) |
| Tool Weight | 2.9 lb |
| Package Dimensions | 11.8" x 12.6" x 4.7" |
| Warranty | 2 years |
What's Included
- (1) NEF6LM BreakFree power flaring tool
- (5) Flare dies/clamps: 1/4", 3/8", 1/2", 5/8", 3/4"
- (1) NBF2 lithium battery
- (1) NCF2 battery charger
- (1) NFG1 flare gauge
- (1) Blow-molded carry case
Compatibility

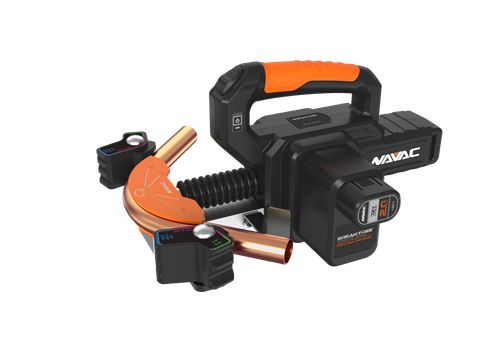

Battery (NBF2) and charger (NCF2) are shared with the NAVAC NTE11L BreakFree power tube expander and NTB7L power tube bender. 5/16" clamp sold separately.
Ideal Applications
- High-volume ductless mini split installations
- R410A flare connections on heat pumps and AC
- Overhead and ladder work where weight matters
- Contractors standardizing on the BreakFree battery platform
