Description
Product Summary

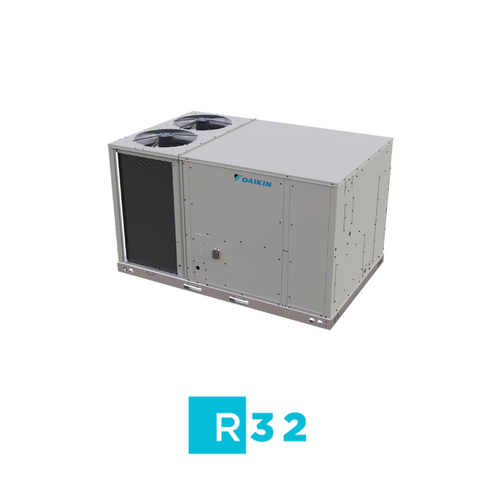

The Daikin DHC0907D000001S is a 7.5-ton high efficiency packaged rooftop air conditioner from the Daikin DHC Series 7.5-12.5 Ton lineup, built for electric cooling (no factory heat) on light commercial buildings. It is factory charged with low-GWP R-32 refrigerant and wired for 575/3/60 power.
Key ratings include a rated cooling capacity of 90,000 BTU/h, efficiency of 17.5 IEER / 12.5 EER. Electrical requirements are 17.2 A minimum circuit ampacity and 20 A maximum overcurrent protection. It suits contractors, facility managers and building owners replacing or adding rooftop equipment.
Key Features
- R-32 Refrigerant: Lower global warming potential refrigerant, factory charged and tested.
- Scroll Compression: 2 scroll compressors (2 stages) for reliable, quiet operation.
- Direct-Drive Supply Fan: Direct-drive indoor fan for simple airflow setup and efficient operation.
- Durable Cabinet: Galvanized steel cabinet with powder-paint finish for rooftop corrosion resistance.
- Service Access: Draw-through filter section and accessible, weatherproof control box.
- Factory Wired: Single-point power entry, factory wiring and run testing speed up commissioning.
- Convertible Airflow: Field convertible between downflow and horizontal supply and return.
Specifications
| Model Number | DHC0907D000001S |
|---|---|
| Brand / Series | Daikin DHC Series 7.5-12.5 Ton (High Efficiency) |
| Unit Type | Packaged Rooftop Air Conditioner |
| Nominal Capacity | 7.5 Tons |
| Rated Cooling Capacity | 90,000 BTU/h |
| IEER | 17.5 |
| EER | 12.5 |
| Compressor | 2 scroll compressors (2 stages) |
| Refrigerant | R-32 (factory charged) |
| Supply Fan | Direct drive, standard static |
| Nominal Airflow | 3,000 CFM |
| Electrical | 575/3/60 |
| Minimum Circuit Ampacity (MCA) | 17.2 A |
| Maximum Overcurrent Protection (MOP) | 20 A |
| Shipping Weight | 1,215 lb |
| Airflow Configuration | Convertible downflow or horizontal |
| Manufacturer Warranty | 5 Years Parts, limited commercial warranty |
Ideal Applications
- Retail stores and strip centers
- Restaurants and quick-service kitchens
- Offices and professional buildings
- Schools, churches and community buildings
- Light industrial and warehouse spaces
- Replacement of existing light commercial rooftop units
Frequently Asked Questions
What size is the Daikin DHC0907D000001S?
It is a nominal 7.5-ton unit with a rated cooling capacity of 90,000 BTU/h. Have a load calculation done to confirm the size for your building.
What refrigerant does it use?
It uses R-32 and ships factory charged. Service technicians should use R-32 rated tools and recovery equipment.
What power supply does it need?
This model is built for 575/3/60 power, with 17.2 A MCA and 20 A MOP.
Does it include heat?
No. It is a cooling-only unit. Field-installed electric heat kits are available for many sizes.
What accessories are available?
Daikin offers roof curbs, economizers, power exhaust, hail guards, dampers and thermostats for this cabinet. Contact HVAC365 to match the right accessories.
