Description

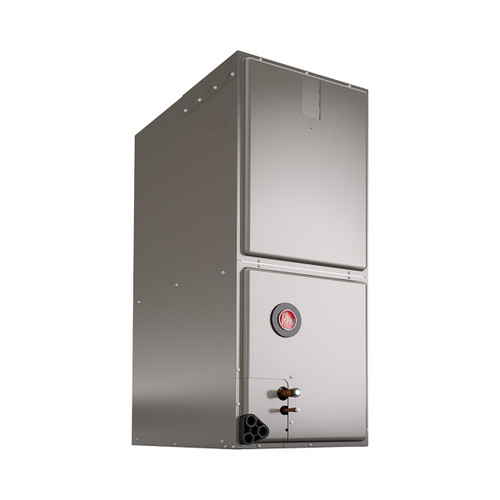

Rheem 3 Ton Multi-Position Air Handler R454B
The Rheem RB2TY3621STANMJB10 is a Rheem air handler.
Specifications
- Model: RB2TY3621STANMJB10
- Product Category: Air Handler
- Product Line: RA14AY
- Refrigerant Type: R-454B
- Capacity (Tons): 3
- Cooling Capacity (BTU): 36,000
- Product Height: 35.0 in
- Product Width: 21.0 in
- Product Depth: 22.5 in
- Electrical Phase: 1-Phase
- Configuration: Multi-Position
- Blower Motor Type: ECM Constant Torque
- Airflow (CFM): 1,200
- Metering Device: TXV
- Cabinet Width (in): 21
- Voltage / Phase: 208/230V 1-Phase
Matching and electric heat
Pair this air handler with a Rheem outdoor unit listed for it in the AHRI directory to get certified efficiency. It ships with a factory-installed electric heater.
Installation
The air handler needs its own electrical circuit sized for the blower and any electric heat, a condensate drain with a trap, and a properly sized return and filter. R-454B systems require installation by a licensed HVAC technician following Rheem's A2L procedures.
Common questions
Does this include a heat strip?
Yes, it has a factory-installed electric heater.
Can it be installed horizontally?
Multi-position models can be installed upflow, downflow or horizontal; follow the installation manual for the conversion steps for each position.
What refrigerant does it use?
R-454B. It must be paired with an R-454B outdoor unit, and it includes the refrigerant leak detection required for A2L systems where specified by Rheem.
