Rheem 3 Ton Multi-Position Air Handler R454B | RH1AY3617STANNJ

Rheem

5 Star RatingLeave a review
No reviews yet Write a Review
SKU:
RH1AY3617STANNJ
Your Price $0.00

Detecting ZIP...
Est. Net Incentive Amount: $0.00
We could not detect your ZIP automatically. Enter your ZIP to check incentives.
Available Incentives
$0.00
Selected Incentives
0
Unpriced Programs
0
Estimates assume eligibility; programs and amounts can change.
UPC:
662021854682
Condition:
New
Width:
17.50 (in)
Height:
42.50 (in)
Depth:
21.70 (in)

Questions about Rheem 3 Ton Multi-Position Air Handler R454B | RH1AY3617STANNJ?

Contact us for advice or additional information; our product specialists are here to help!

SupplierGateway® Certified i
Minority-Owned • Small Business

Fast Shipping

Customer Support

Warranty Coverage

Financing Available

$2,500.00

  • Qualifies for FREE Shipping
25 in stock • Ships in 2-3 Business Days
Overview

Rheem 3 Ton Multi-Position Air Handler R454B | RH1AY3617STANNJ

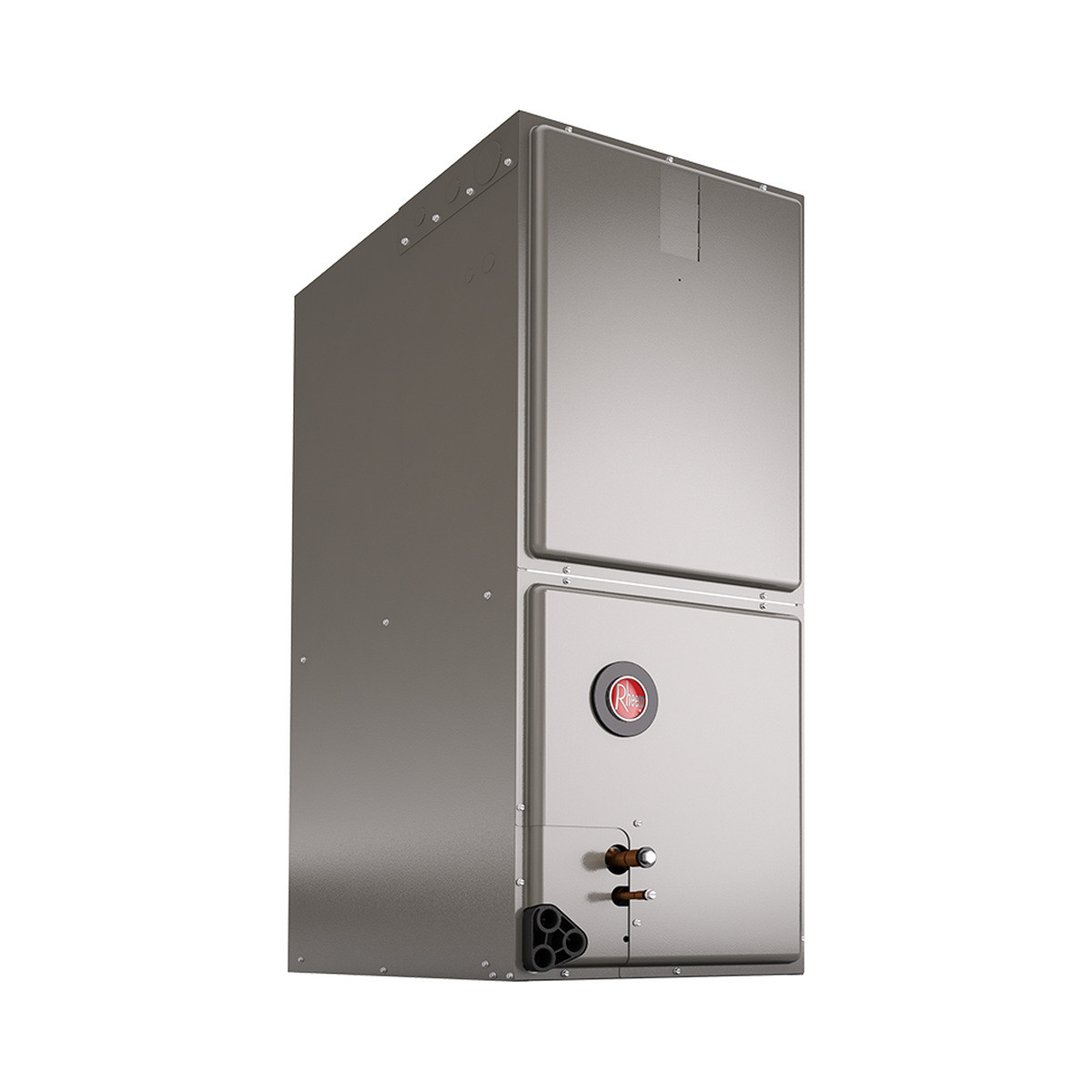

Rheem RH1AY3617STANNJ - air handler
Product details

Description

Rheem 3 Ton Multi-Position Air Handler R454B

The Rheem RH1AY3617STANNJ is a Rheem air handler.

Matching and electric heat

Pair this air handler with a Rheem outdoor unit listed for it in the AHRI directory to get certified efficiency. Electric heat strips are sold separately. Use only the Rheem heater kits listed for this model on its specification sheet.

Installation

The air handler needs its own electrical circuit sized for the blower and any electric heat, a condensate drain with a trap, and a properly sized return and filter. R-454B systems require installation by a licensed HVAC technician following Rheem's A2L procedures.

Common questions

Does this include a heat strip?

No. Electric heat strips are sold separately; use a Rheem kit listed for this model.

Can it be installed horizontally?

Multi-position models can be installed upflow, downflow or horizontal; follow the installation manual for the conversion steps for each position.

What refrigerant does it use?

R-454B. It must be paired with an R-454B outdoor unit, and it includes the refrigerant leak detection required for A2L systems where specified by Rheem.

White Paper

Comfort for the people who live there

The right equipment keeps the rooms you live in steady and quiet, whether it's dinner in the kitchen or a weekend project in the garage.

Specifications

Extra Information

Find your comfort-ready size with confidence

Get a fast, learning-friendly estimate for tons and BTUs, then review it with a Pro to dial in the perfect fit for your home.

Brand:
Rheem
Width:
17.50 (in)
Height:
42.50 (in)
Depth:
21.70 (in)
Weight:
110.00 LBS
Product Category:
Air Handler
Product Line:
RA14AY
Refrigerant Type:
R-454B
Capacity (Tons):
3
Cooling Capacity (BTU):
36,000
Product Height:
42.5 in
Product Width:
17.5 in
Product Depth:
21.7 in
Compatible Electric Heat Kits:
RXBH-1724(A/B/C)03J-B (3 kW), RXBH-1724(A/B/C)05J-B (4.8 kW), RXBH-1724(A/B/C)07J-B (7.2 kW), RXBH-1724(A/B/C)10J-B (9.6 kW), RXBH-1724A13J-B (12.5 kW), RXBH-1724A15J-B (14.4 kW), RXBH-1724A18J-B (17 kW)
Electric Heat Options (kW):
3, 4.8, 7.2, 9.6, 12.5, 14.4, 17
Prop 65 Warning:
Yes
Safety Information:
⚠ WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Electrical Phase:
1-Phase
Configuration:
Multi-Position
Metering Device:
TXV
Cabinet Width (in):
17.5
Voltage / Phase:
208/230V 1-Phase
Model Number:
RH1AY3617STANNJ
Please Note: To validate the manufacturer's warranty, equipment must be installed by a qualified licensed professional in accordance with local codes and the manufacturer's installation requirements.

2023 Energy Standards

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Department of Energy (DOE) State Regulations – Effective 2023

Click the link below to view the energy standards applicable to your region.

DOE State Standards Document

Documents & warranty
Warranty
10 Years Parts | Registration Required within 60 Days of Purchase
Videos2 videos
Introducing the All-New Rheem® Endeavor® Line
Frequently asked questions
What refrigerant does the use?
It uses R-454B refrigerant.
What size is the ?
The is a 3 ton unit.
How much cooling does the provide?
It is rated for 36,000 BTU of cooling.
What power supply does the need?
It requires 208/230V 1-Phase power.
What warranty comes with the RH1AY3617STANNJ?
10 Years Parts | Registration Required within 60 Days of Purchase
Who makes the RH1AY3617STANNJ?
The RH1AY3617STANNJ is made by Rheem.
