Description

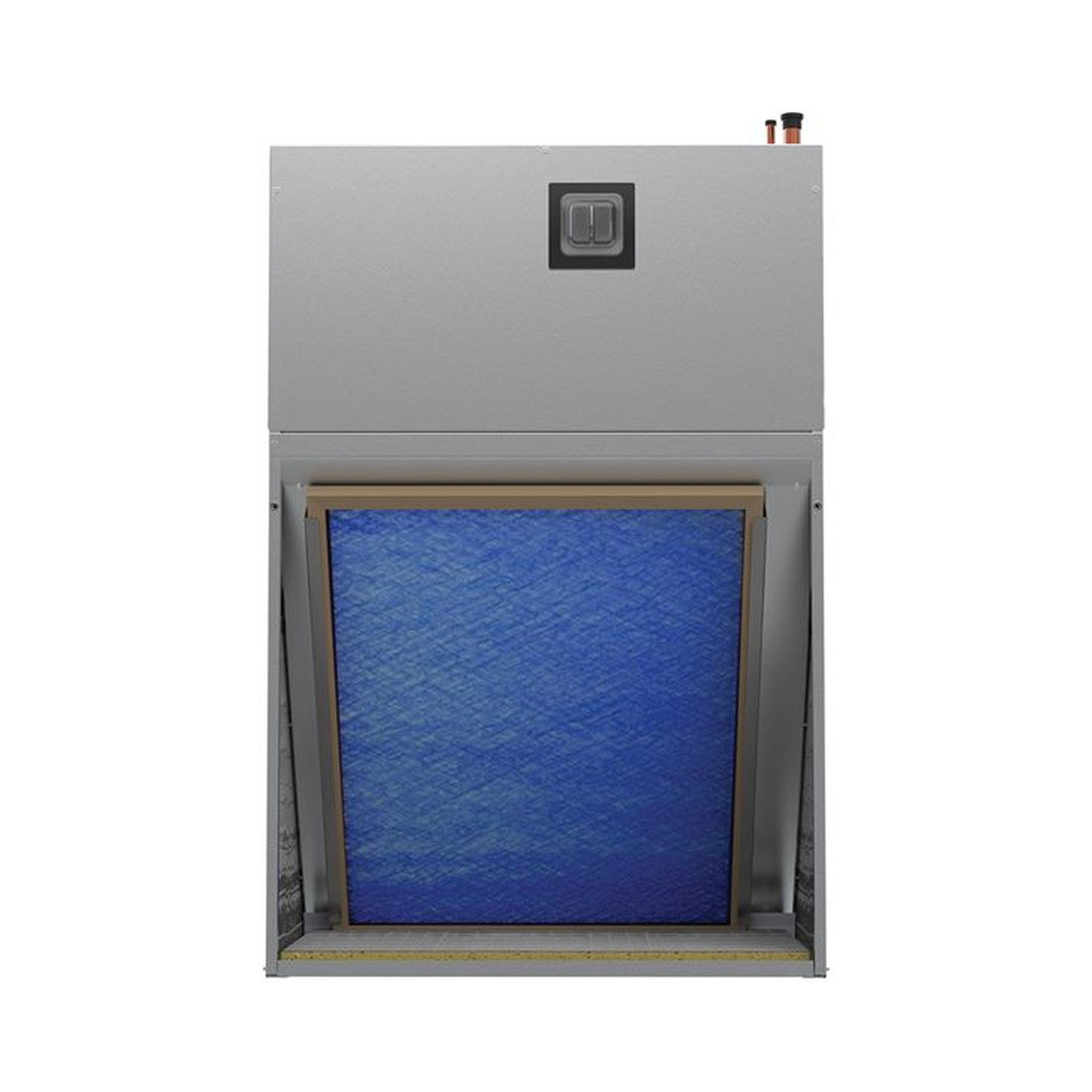

Rheem 1.5 Ton Multi-Position Air Handler R454B
The Rheem RF1PY1821STANSJB0541 is a Rheem air handler.
Specifications
- Model: RF1PY1821STANSJB0541
- Product Category: Air Handler
- Product Line: WSA14AY
- Refrigerant Type: R-454B
- Capacity (Tons): 1.5
- Cooling Capacity (BTU): 18,000
- Product Height: 36.0 in
- Product Width: 21.5 in
- Product Depth: 17.0 in
- Compatible Electric Heat Kits: RXHJ-21B/T03J-1 (3 kW), RXHJ-21B/T05J-1 (4.8 kW), RXHJ-21B/T08J-1 (7.2 kW)
- Electric Heat Options (kW): 3, 4.8, 7.2
- Electrical Phase: 1-Phase
- Configuration: Multi-Position
- Blower Motor Type: PSC
- Airflow (CFM): 600
- Metering Device: TXV
- Cabinet Width (in): 21
- Voltage / Phase: 208/230V 1-Phase
Matching and electric heat
Pair this air handler with a Rheem outdoor unit listed for it in the AHRI directory to get certified efficiency. It ships with a factory-installed electric heater.
Installation
The air handler needs its own electrical circuit sized for the blower and any electric heat, a condensate drain with a trap, and a properly sized return and filter. R-454B systems require installation by a licensed HVAC technician following Rheem's A2L procedures.
Common questions
Does this include a heat strip?
Yes, it has a factory-installed electric heater.
Can it be installed horizontally?
No. Front-return models are built for vertical upflow installation only.
What refrigerant does it use?
R-454B. It must be paired with an R-454B outdoor unit, and it includes the refrigerant leak detection required for A2L systems where specified by Rheem.
