Description
Product Summary
The Appion TEZ8 is an 8 CFM two-stage vacuum pump engineered for fast, clean evacuation on residential and commercial systems. Its adjustable multi-port input combines 1/4", dual 3/8", and 1/2" ports, delivering up to 32 times the flow of single-input pumps when paired with large-bore hoses, and it pulls below 20 microns ultimate vacuum.

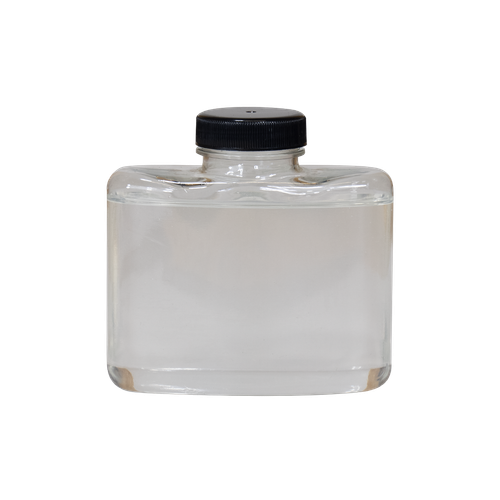

Appion's 5-second oil change uses clear TEZOM oil cartridges, letting technicians monitor oil condition and swap oil without breaking vacuum. A clear debris catch tube with positive pressure relief protects the pump and prevents oil showers, and the two-stage exhaust vents moisture without a gas ballast. The all-metal pump sits in a lightweight composite resin case cooled by a high-speed turbine fan and aluminum heatsink.
Key Features
- 8 CFM Two-Stage Pump: 8 CFM (227 L/min) at 60 Hz with ultimate vacuum below 20 microns.
- Adjustable Multi-Port Input: 1/4", dual 3/8", and 1/2" ports for high-flow evacuation rigs.
- 5-Second Oil Change: TEZOM cartridges allow oil changes without breaking vacuum.
- Debris Catch Tube: Clear tube with cleanable screen and positive pressure relief protects the pump.
- Two-Stage Exhaust: Vents moisture without a gas ballast; remote exhaust accepts a garden hose.
- Anti-Suckback Design: Eliminates restrictive check valves in the flow path.
- Cold-Weather Starting: Soft-start motor rated to start as low as -40°F/C.
- A2L Compatible: Suitable for evacuating systems that use A2L refrigerants.
Specifications
| Brand | Appion |
|---|---|
| Model | TEZ8 |
| Type | Two-stage vacuum pump |
| Free Air Displacement | 8 CFM (227 L/min) @ 60 Hz; 6.6 CFM (189 L/min) @ 50 Hz |
| Ultimate Vacuum | Below 20 microns |
| Power | 115 VAC, 60 Hz, 10 A |
| Inlet Ports | 1/4", (2) 3/8", 1/2" flare (adjustable multi-port) |
| Dimensions | 14.25" L x 10.30" H x 9.40" W |
| Weight | 28 lb |
What's Included
- (1) Appion TEZ8 Vacuum Pump
- (2) TEZOM Oil Cartridges
- (1) Power Cord
- (1) Owner's Manual
Ideal Applications
- Residential and light commercial system evacuation
- High-flow evacuation with MegaFlow hoses and core tools
- A2L system commissioning
- Cold-weather and rooftop service work
